Remove/Install Roller Sun Blind In Rear - AR68.50-P-0002S
Model 223
with code 540 (Electric roller blind for rear window)
except code Z07 (B7 armoring on special protection version)
| Remove/install | |||

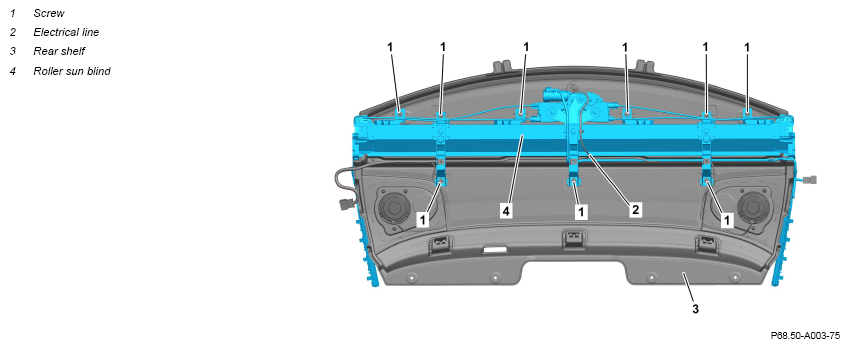

| 1 | Remove rear shelf (3). | AR68.30-P-4581S | |
| Model 223 with code 540 (Electric roller blind for rear window) except code Z07 (B7 armoring on special protection version) |
|||
| 2 | Expose electric line (2) of roller sunblind (4). | ||
| 3 | Remove screws (1). | ||
| 4 | Remove roller sunblind (4) from rear shelf (3). | ||
| 5 | Install in the reverse order. |
