Remove/Install Cup Holder In Rear - AR68.00-P-5204SA
Model 223
with code 223 (Electric backrest adjustment and head restraints)
with code 224 (Individual rear seats)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

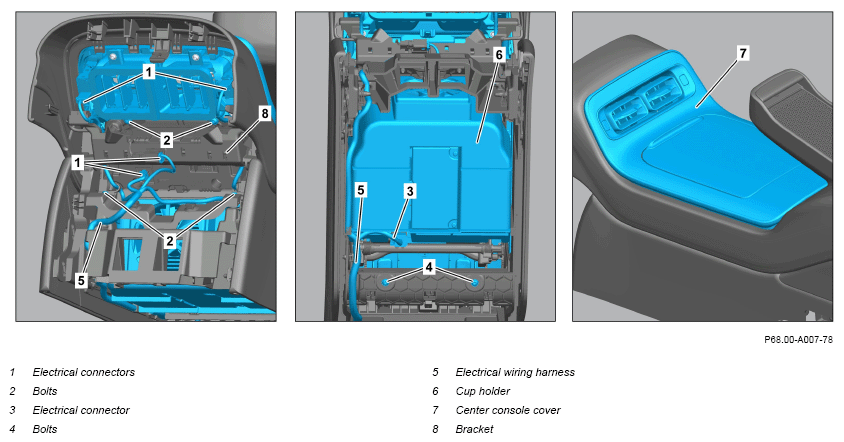

| 1 | Remove rear center console. | AR68.20-P-2020S | |
| 2 | Disconnect electrical connectors (1). | ||
| 3 | Unclip bracket (8). | Carefully unclip bracket (8). The ambient lighting may be damaged otherwise. |
|
| 4 | Remove screws (2). | ||
| 5 | Remove screws (4). | ||
| 6 | Disconnect electrical connector (3). | ||
| 7 | Expose electrical wiring harness (5). | ||
| 8 | Remove center console cover (7) upwards together with the cup holder (6). | ||
| 9 | Remove cup holder (6) from center console cover (7). | ||
| 10 | Install in the reverse order. |
