Remove/Install Cup Holder In Rear - AR68.00-P-5204S
Model 223
except code 223 (Electric backrest adjustment and head restraints)
except code 224 (Individual rear seats)
Model 223
with code 223 (Electric backrest adjustment and head restraints)
except code 224 (Individual rear seats)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Fold armrest (1) forward. | ||
| 3 | Remove tablet PC. | ||
| 4 | Unhook fabric cover from rear armrest (1). | ||
| 5 | Remove screws (2). | ||
| 6 | Open stowage compartment (3). | ||
| 7 | Remove lock of stowage compartment (3) and unscrew screw (4) underneath. | ||

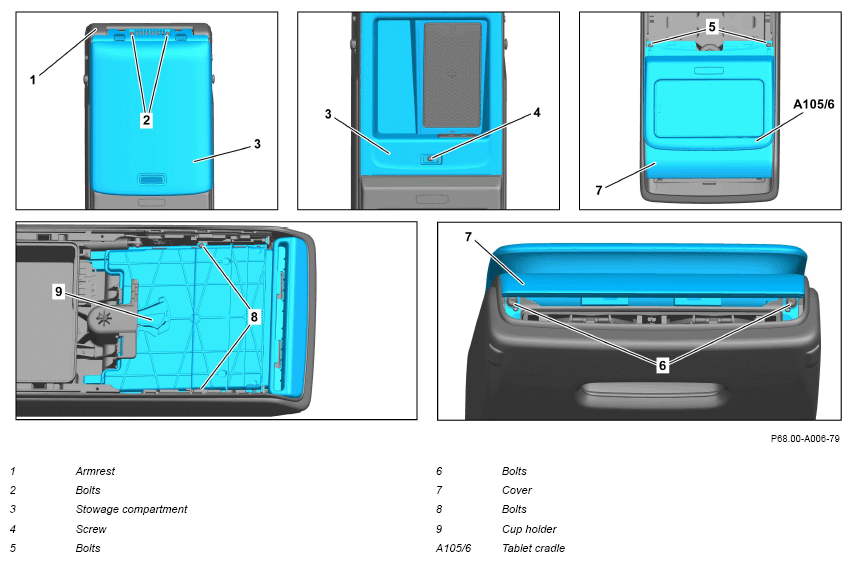

| 8 | Remove stowage compartment (3) and place to one side with electric lines connected. | Fig 1 | |
| 9 | Remove screws (5). | ||
| 10 | Open cup holder (9) and remove screws (6). | ||
| 11 | Remove cover (7) with tablet cradle (A105/6). | ||
| 12 | Remove screws (8) and remove cup holder (9). | ||
| 13 | Install in the reverse order. |
