Check First Aid Kit - AP68.00-P-6850A

Model 206, 214, 223, 232, 236, 254, 294, 295, 296, 297

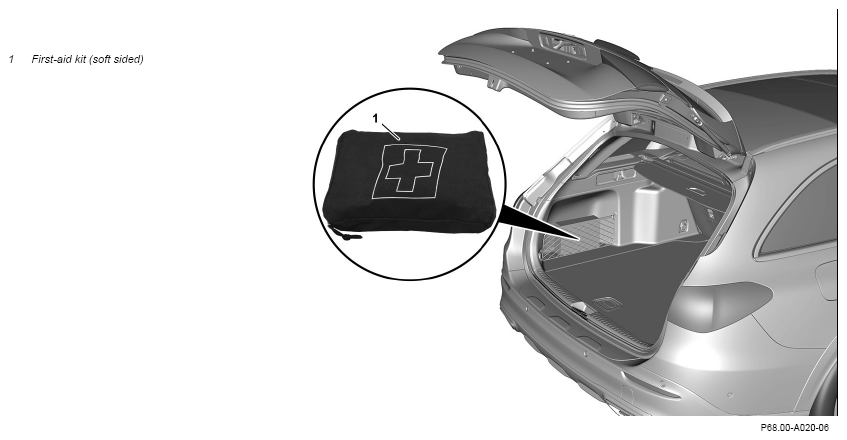

First-aid kit (soft sided) in stowage net shown at left on model 206.205, valid for model 206, 214, 236, 254, 294, 295, 296, 297

G16189232Courtesy of MERCEDES-BENZ USA

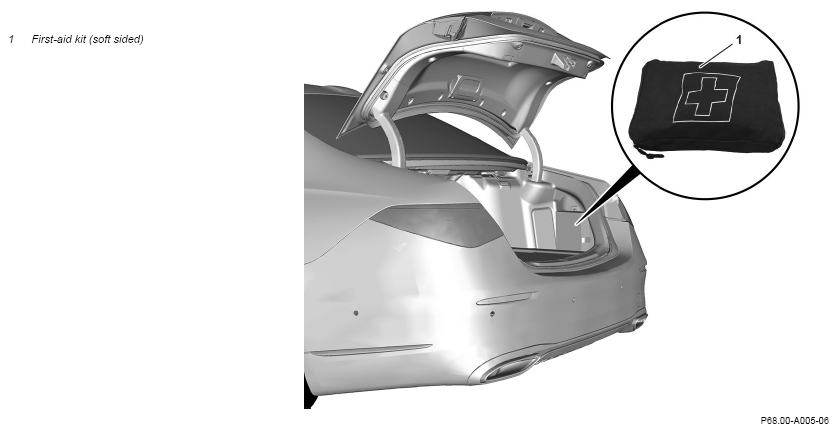

First-aid kit (soft sided) in stowage box/tray at right on model 223.130, valid for model 223, 232

G16189233Courtesy of MERCEDES-BENZ USA
G16189234Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Remove first-aid kit (soft sided) (1).
INSPECT Check

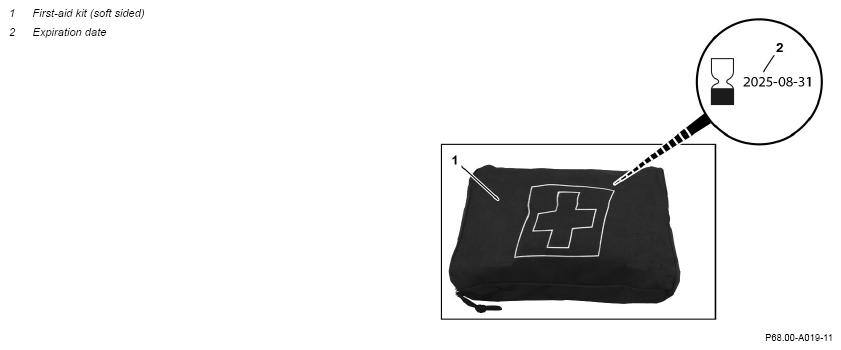

2 Check expiration date (2). IMPORTANT Depending on first-aid kit (soft sided) (1) version involved, the expiration date (2) is located on the outside or on the inner packaging.
If the expiration date (2) has been reached or exceeded or is reached or exceeded within the next service interval,

replace first-aid kit (soft sided) (1).
IMPORTANT After obtaining special order.

INSTALLING Install
3 Insert first-aid kit (soft sided) (1).
