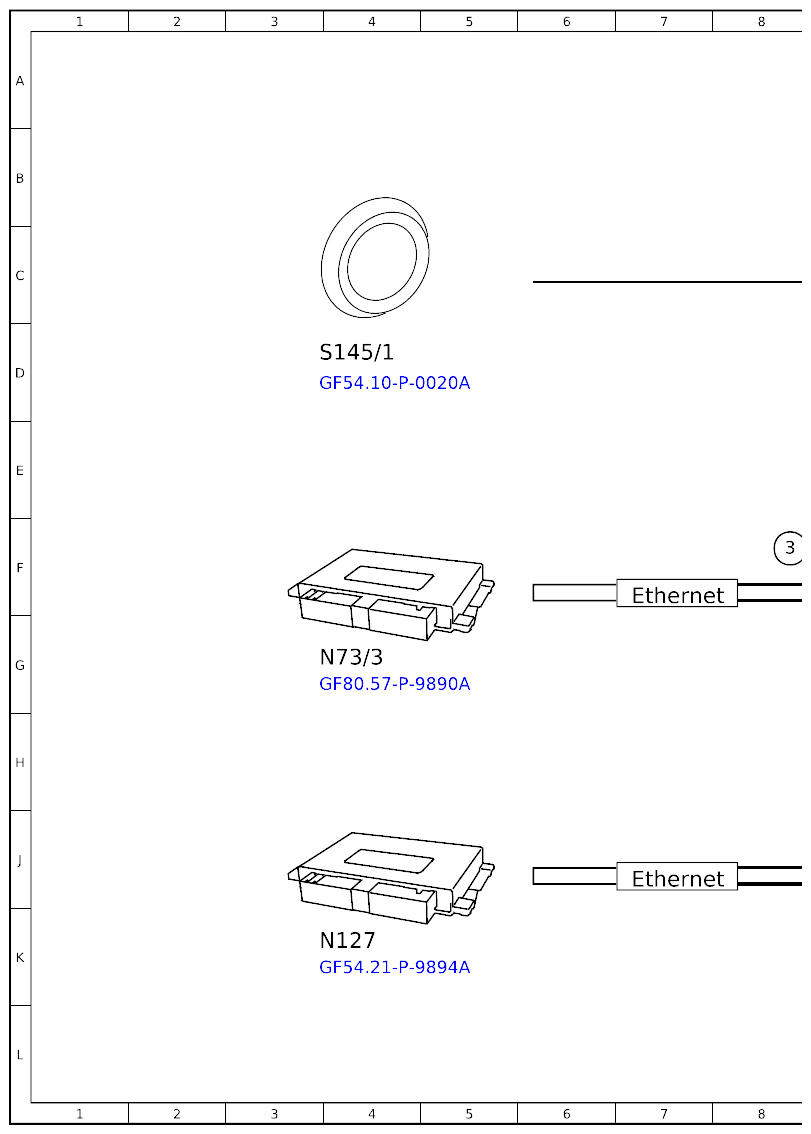

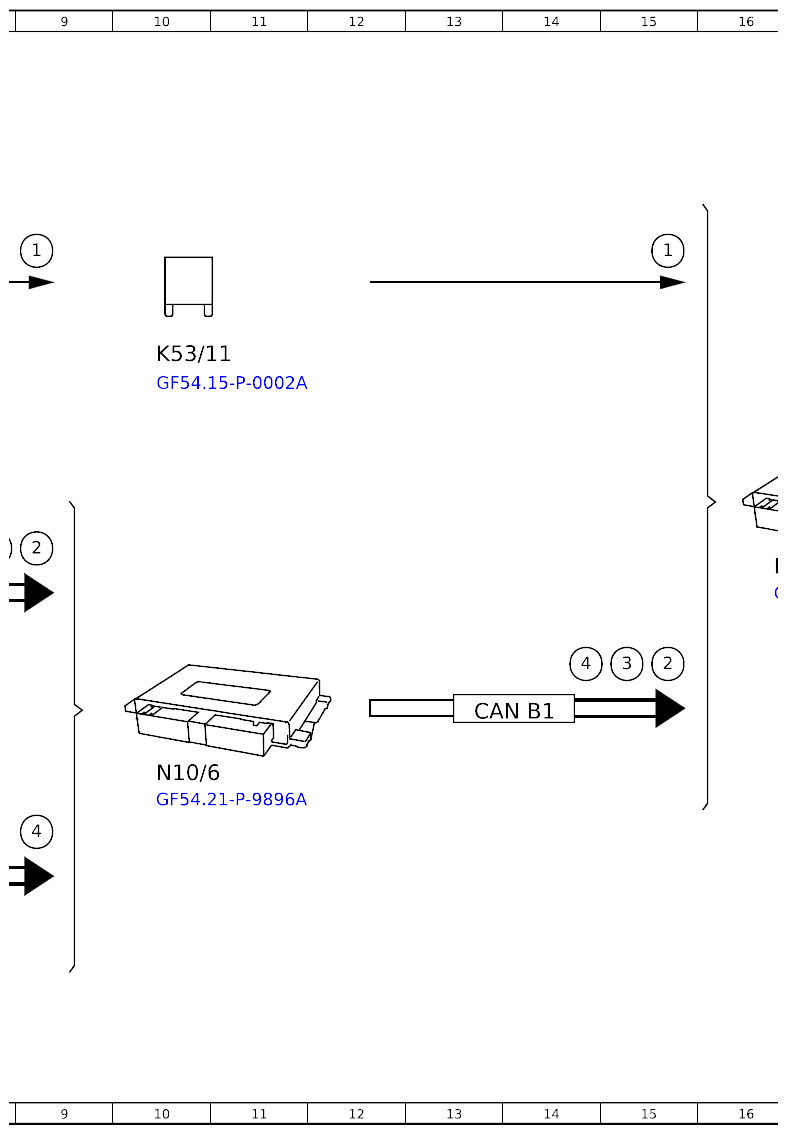

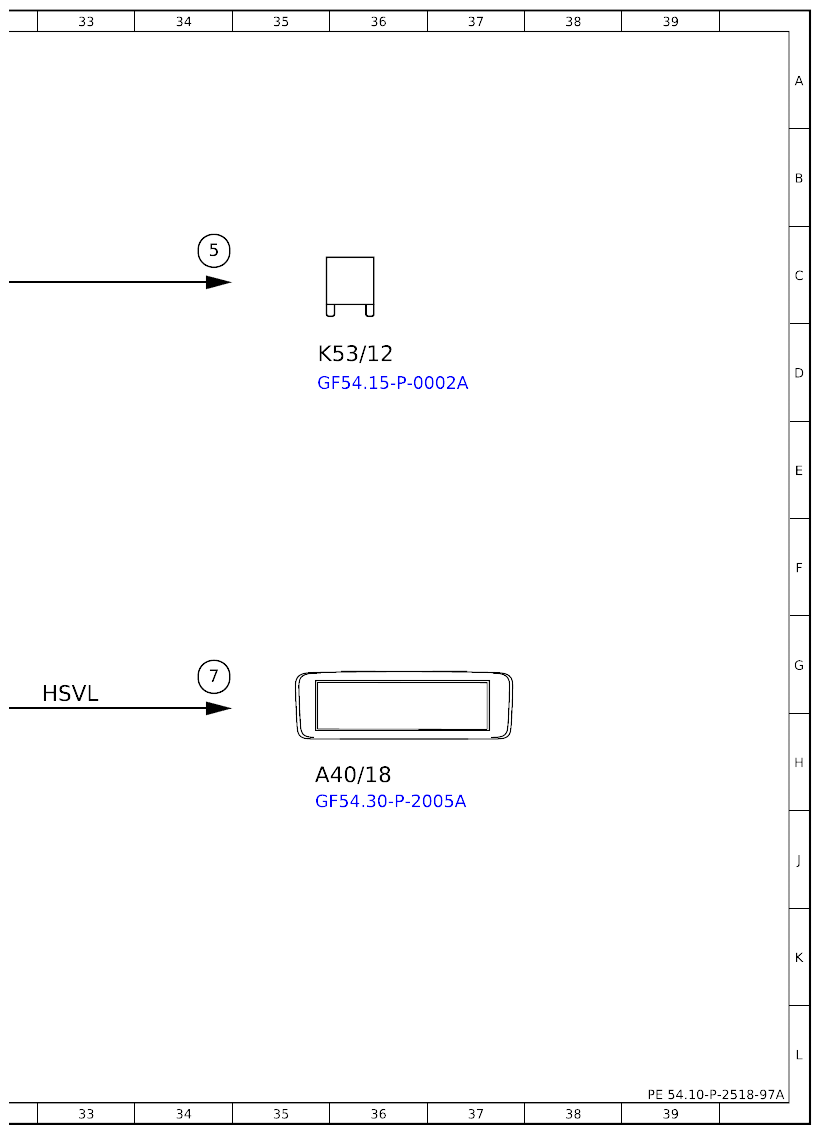

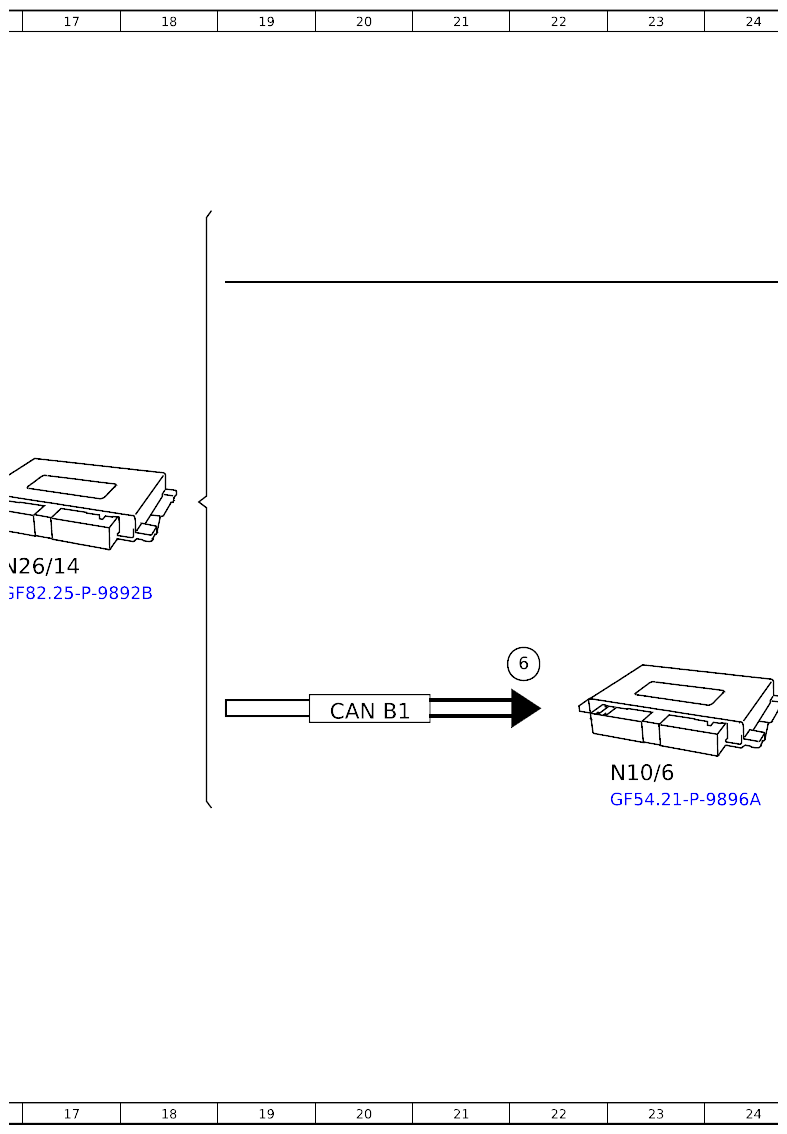

Function Schematic For Emergency Engine Start - PE54.10-P-2518-97A
Model 223
with code Z61 (Auxiliary battery for emergency start)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Emergency engine start button, status | 16C |
| 1 | Emergency engine start button, status | 9C |
| 2 | Battery voltage, signal | 9F |
| 2 | Battery voltage, signal | 16G |
| 3 | Circuit 15, status | 8F |
| 3 | Circuit 15, status | 15G |
| 4 | Engine running, signal | 14G |
| 4 | Engine running, signal | 9J |
| 5 | Additional battery relay, actuation | 34C |
| 6 | Instrument cluster message, request | 22G |
| 6 | Instrument cluster message, request | 28G |
| 7 | Image data, signal | 35G |
| A40/18 | Instrument cluster display | 36H |
| CAN B1 | CAN 1 for vehicle interior | 13H |
| CAN B1 | CAN 1 for vehicle interior | 20H |
| Ethernet | Ethernet | 7F |
| Ethernet | Ethernet | 7J |
| Ethernet | Ethernet | 26H |
| HSVL | High-speed video link | 33G |
| K53/11 | Emergency engine start relay | 10D |
| K53/12 | Emergency engine start relay | 35D |
| N10/6 | Front signal acquisition and actuation module control unit | 10H |
| N10/6 | Front signal acquisition and actuation module control unit | 23H |
| N127 | Drivetrain control unit | 3K |
| N133/1 | Instrument cluster control unit | 29H |
| N26/14 | Multifunction control unit | 16F |
| N73/3 | Electronic ignition switch control unit | 3G |
| S145/1 | Emergency engine start button | 3D |
