Remove/Install Trim On Battery Of 12 V On-Board Electrical System In Engine Compartment At Right - AR54.10-P-0051-03S

Model 223.### 1# with engine 177, 256

with code ME10 (Hybrid vehicle (plug-in, PHEV))

Courtesy of MERCEDES-BENZ USA

1. Open engine hood and position upright.

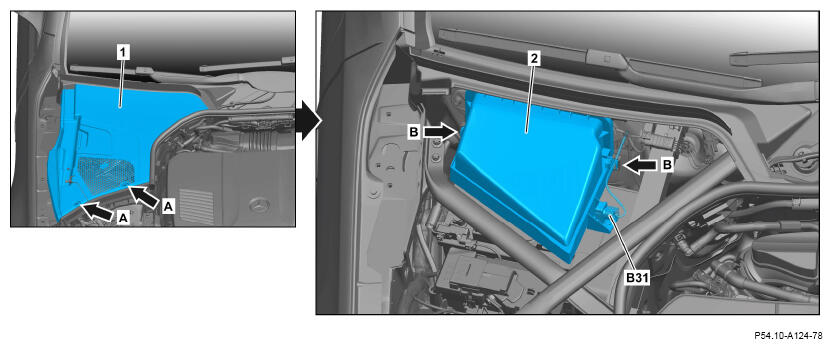

2. Release locks (arrows A) and remove rear right engine compartment trim (1).
3. Unclip air quality sensor (B31) from air duct segment (2).
4. Unhook wiring harness of air quality sensor (B31) from air duct segment (2).
5. Release holders (arrows B) and remove air duct segment (2).
6. Install in the reverse order.
