Retrofit Wiring Harness For Mercedes-Benz Dashcam At Front - AZ54.71-P-0002-01SV
Model 223
| Topical note | Notes on the use of paint scraping nuts on ground connections | AH00.19-P-1000-20A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on retrofitting electrical/optical lines | AH82.00-P-0000-01A |
| Number | Designation | Model 223 except code Z07 (B7 armoring on special protection version) | Model 223 with code Z07 (B7 armoring on special protection version) |
||
|---|---|---|---|---|---|
| BA00.19-P-1039-01N | Front passenger footwell frame floor assembly ground point | W85/2 | Nm | 10 | 10 |
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1144-02A | Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide | A 008 989 50 85 09 |

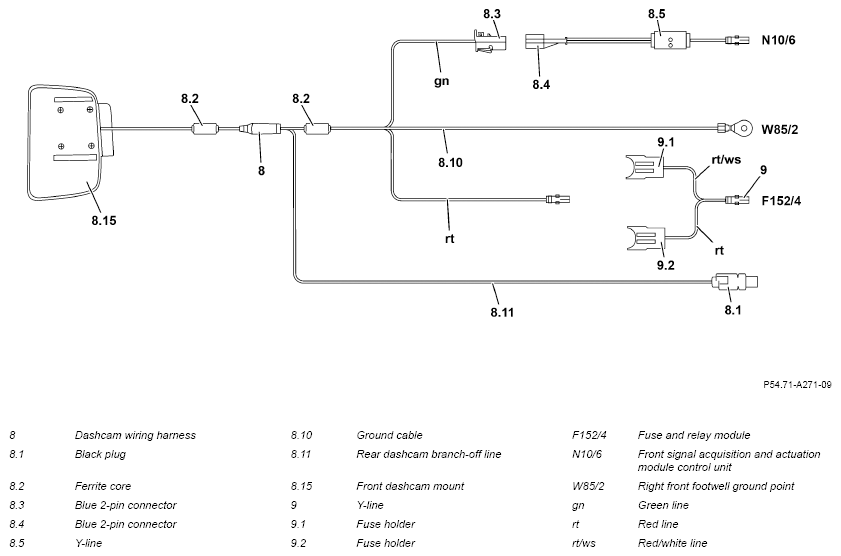

Connection scheme

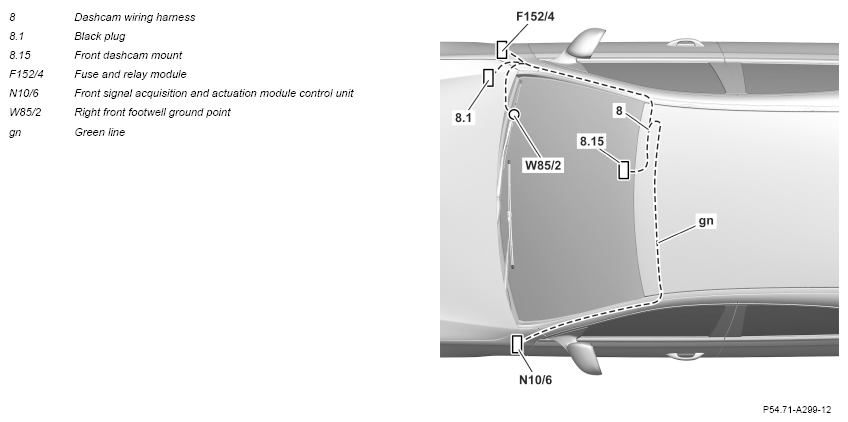

Routing diagram
On left and right-hand drive vehicles, the branch-off line for the rear dashcam of the dashcam wiring harness (8) is routed on the right side.

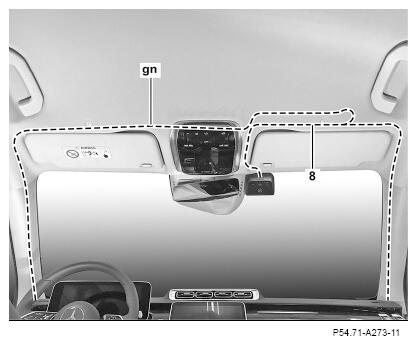

- Route dashcam wiring harness (8) from front dashcam mount under roof lining to right to A-pillar.

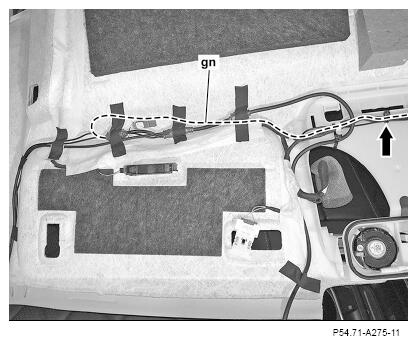

- Route green line (GN) of dashcam wiring harness (8) under roof lining to left to A-pillar.

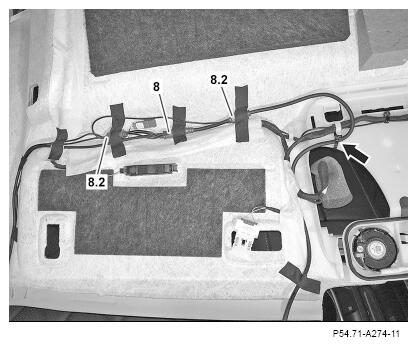

- Fasten ferrite cores (8.2) of dashcam wiring harness (8) to roof lining using felt tape.
- Fasten extended lengths of dashcam wiring harness (8) from branch-off line of front dashcam mount in area of overhead control panel using cable tie (arrow).
- Route green line (GN) of dashcam wiring harness under roof lining to left to A-pillar and fasten in area of overhead control panel using cable tie (arrow).

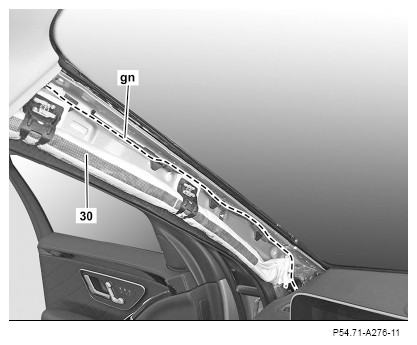

- Route green line (GN) of dashcam wiring harness above window airbag (30) into footwell.

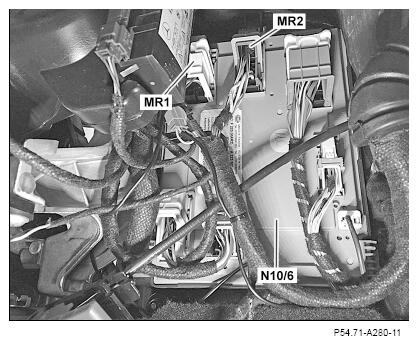

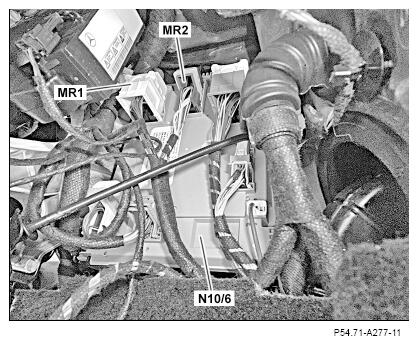

- Remove violet coupling (MR2) from front signal acquisition and actuation module control unit (N10/6).
The violet coupling (MR2) is removed to improve access to the white coupling (MR1).
- Remove white coupling (MR1) from front signal acquisition and actuation module control unit (N10/6).
- Remove black 36-pin coupling insert from white connector (MR1).

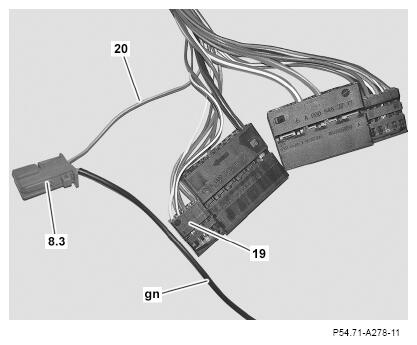

- Remove line (20) from contact cavity "11" of black 36-pin coupling insert (19).
Take appropriate tool from the
basic wiring harness repair kit or the
supplementary passenger car wiring harness repair kit.
- Install line (20) into free contact cavity of blue 2-pin coupling (8.3) of green line (GN).
- Lock blue 2-pin coupling (8.3).

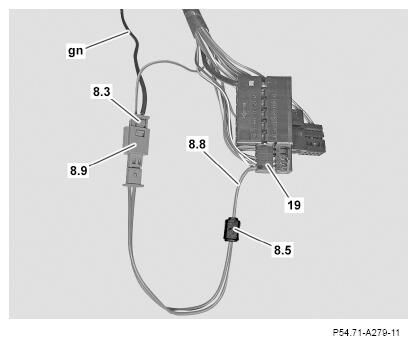

- Install line (8.8) of Y-line (8.5) into contact cavity "11" of black 36-pin coupling insert (19).
- Connect blue 2-pin coupling (8.3) of green line (GN) to blue 2-pin plug (8.9) of Y-line (8.5).
- Install black 36-pin coupling insert into white coupling (MR1).
- Attach white coupling (MR1) to front signal acquisition and actuation module control unit (N10/6).
- Attach violet coupling (MR2) to front signal acquisition and actuation module control unit (N10/6).

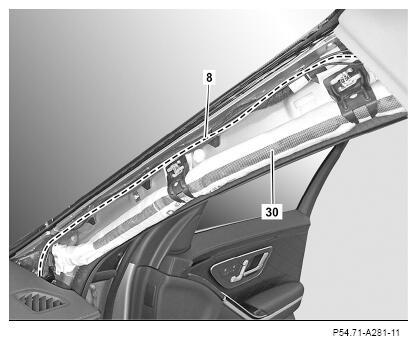

- Route red line, ground line and rear dashcam branch-off line of dashcam wiring harness (8) above window airbag (30) into footwell.

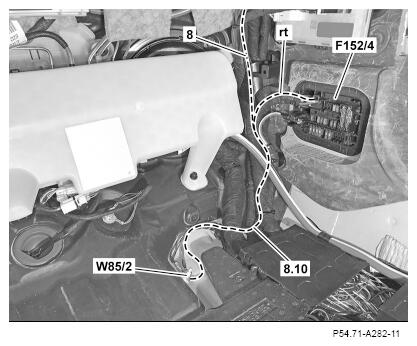

- Route red line (RD) of dashcam wiring harness (8) to fuse and relay module (F152/4).
- Route ground line (8.10) of dashcam wiring harness (8) to front right footwell ground point (W85/2) and connect.

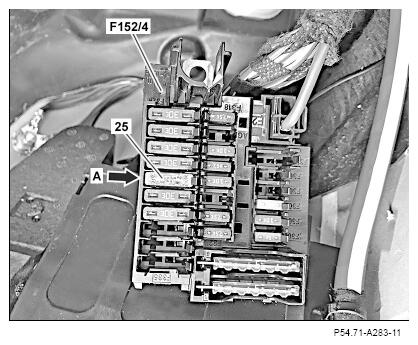

- Remove electrical fuse (25) from slot 330 (arrow A) of fuse and relay module (F152/4).
The electrical fuse (25) is reused.
Model 223
with code 72B (USB package)
The fuse rating of the electrical fuse (25) is 20 A.
Model 223
except code 72B (USB package)
The fuse rating of the electrical fuse (25) is 7.5 A.

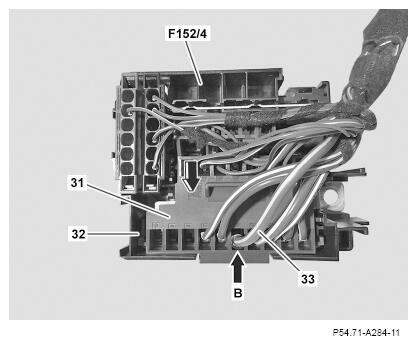

- Release lock (31) outward in direction of arrow.
- Remove red/white line (33) from contact cavity "A3_5" (arrow B) on fuse holder (32) of fuse and relay module (F152/4).
Take appropriate tool from the
basic wiring harness repair kit or the
supplementary passenger car wiring harness repair kit.

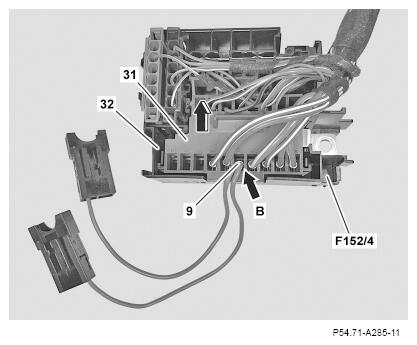

- Install Y-shaped adapter (9) into contact cavity "A3_5" (arrow B) on fuse holder (32) of fuse and relay module (F152/4).
- Lock, lock (31) inward in direction of arrow.

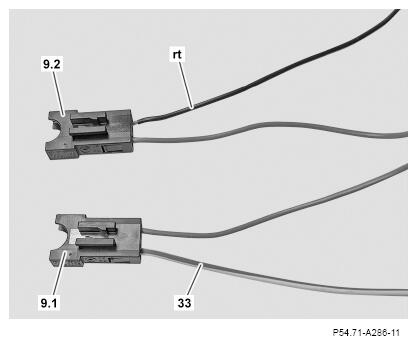

- Install previously removed red/white line (33) into free contact cavity of fuse holder (9.1).
- Install red line (RD) of dashcam wiring harness into fuse holder (9.2).

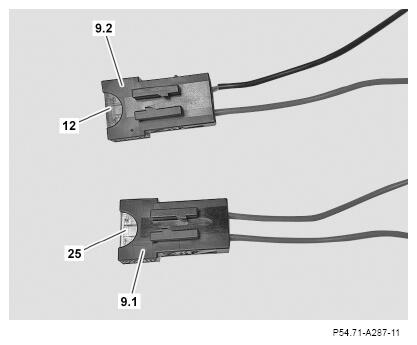

- Install electrical fuse (12) included in parts kit into fuse holder (9.2).
The fuse rating of the electrical fuse (12) is 5 A.
- Install electrical fuse (25) into fuse holder (9.1).
The electrical fuse (25) was removed beforehand from the fuse and relay module.
Model 223
with code 72B (USB package)
The fuse rating of the electrical fuse (25) is 20 A.
Model 223
except code 72B (USB package)
The fuse rating of the electrical fuse (25) is 7.5 A.

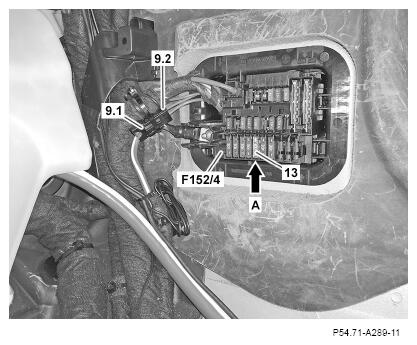

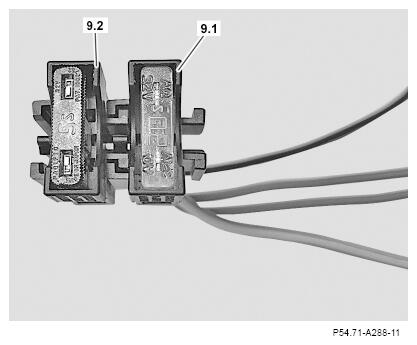

- Join fuse holders (9.1, 9.2) together.
- Secure fuse holders (9.1, 9.2) to on-board wiring harness using cable tie.
- Install electrical fuse (13) included in parts kit into slot 330 (arrow A) of fuse and relay module (F152/4).
The fuse rating of the electrical fuse (13) is 25 A.

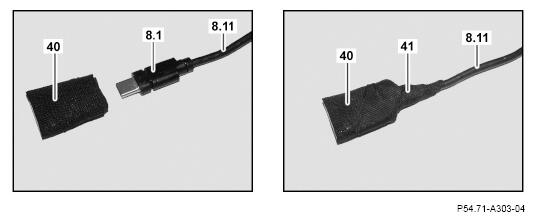

- Insert black plug (8.1) of rear dashcam branch-off line (8.11) into pocket (40) made of felt.
- Fasten pocket (40) to Dashcam wiring harness (8) using fabric tape (41).
-
- Model 223.### 1#

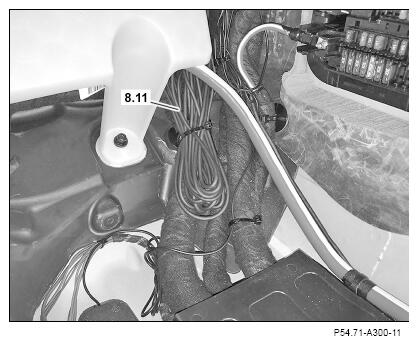

Strap down rear dashcam branch-off line (8.11) that is not required, and secure in front right of front passenger footwell using cable ties.
- Model 223.### 2#
Strap down rear dashcam branch-off line (8.11) that is not required, and secure in area of right A-pillar using cable ties.
- Model 223.### 1#
