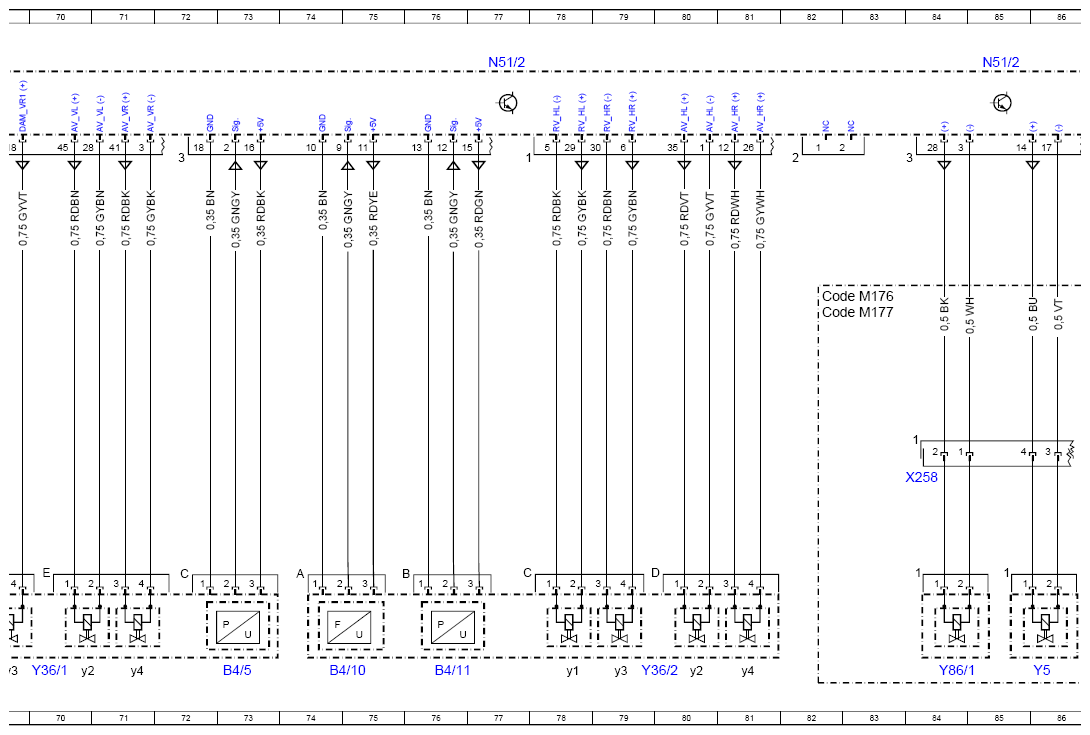

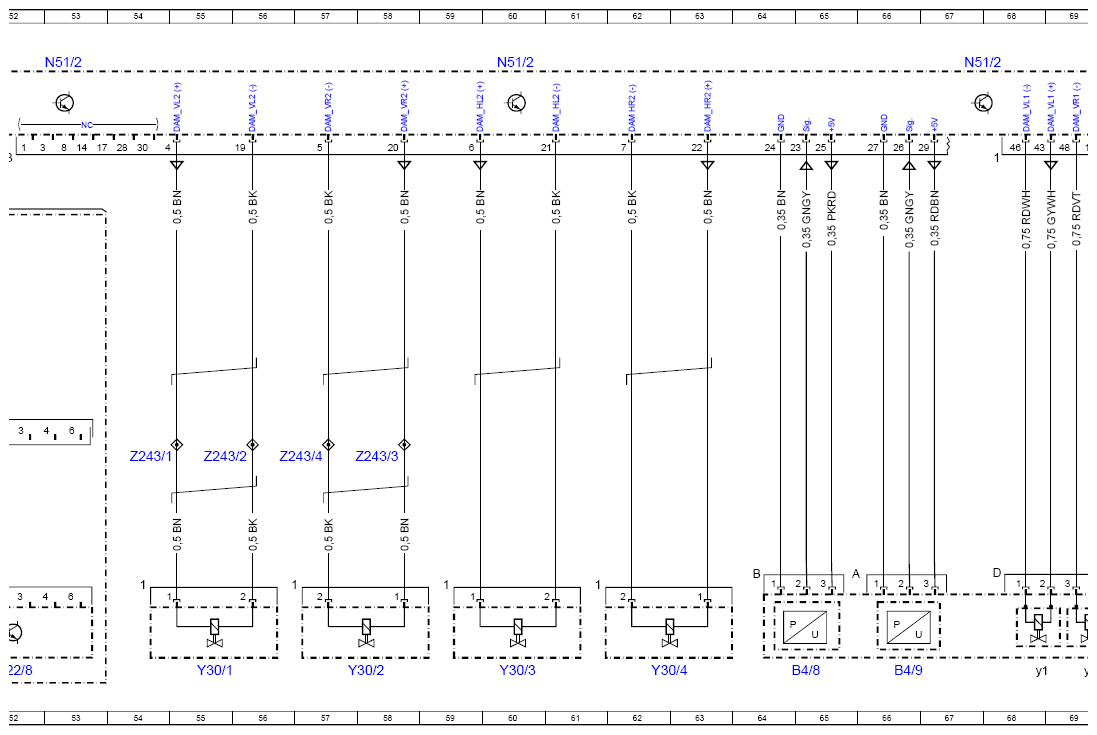

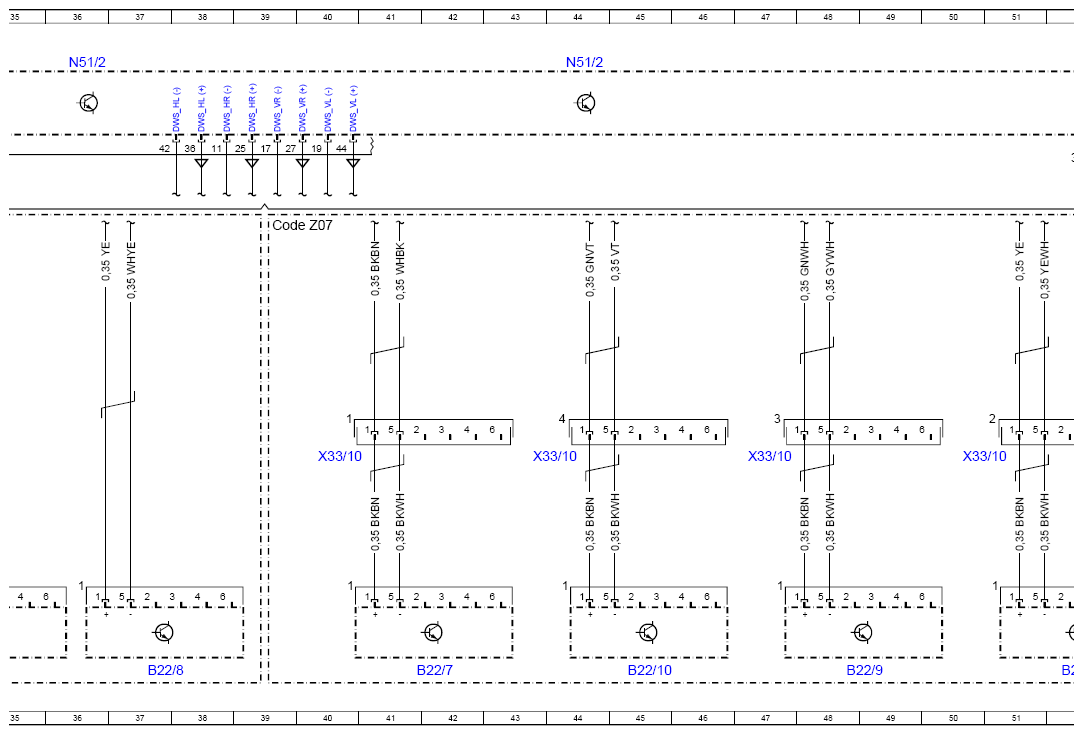

Wiring Diagram Of Active Body Control (ABC) Control Unit - PE32.50-P-2101-97SEB
Model 217, 222 as of model year 2018 with code 487 (MAGIC BODY CONTROL) Control unit N51/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| B22/10 | Right rear level sensor | 32L |
| B22/10 | Right rear level sensor | 45L |
| B22/7 | Left rear level sensor | 29L |
| B22/7 | Left rear level sensor | 42L |
| B22/8 | Left front level sensor | 37L |
| B22/8 | Left front level sensor | 52L |
| B22/9 | Right front level sensor | 34L |
| B22/9 | Right front level sensor | 48L |
| B24/12 | ABC lateral acceleration sensor | 25L |
| B24/3 | Left front body lateral acceleration sensor | 22L |
| B24/4 | Right front body lateral acceleration sensor | 20L |
| B24/6 | Right rear body lateral acceleration sensor | 24L |
| B4/10 | Left rear ABC pressure sensor | 74L |
| B4/11 | Right rear ABC pressure sensor | 76L |
| B4/5 | ABC pressure sensor | 73L |
| B4/8 | Left front ABC pressure sensor | 65L |
| B4/9 | Right front ABC pressure sensor | 66L |
| Code 235 | Active Park Assist | 12D |
| Code 235 | Active Park Assist | 16D |
| Code F217 | MODEL SERIES 217 | 3D |
| Code F222 | MODEL SERIES 222 | 6D |
| Code F222 | MODEL SERIES 222 | 3D |
| Code L | LEFT-HAND DRIVE | 3D |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 82E |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 82E |
| Code R | RIGHT-HAND DRIVE | 6D |
| Code Z07 | Top protection | 39D |
| Code Z07 | Top protection | 27D |
| Flex E | Chassis FlexRay | 9K |
| Flex E | Chassis FlexRay | 13K |
| K40/5 | Rear fuse and relay module | 4L |
| K40/5f454 | Fuse 454 | 3L |
| N51/2 | Active Body Control control unit | 5A |
| N51/2 | Active Body Control control unit | 12A |
| N51/2 | Active Body Control control unit | 29A |
| N51/2 | Active Body Control control unit | 21A |
| N51/2 | Active Body Control control unit | 36A |
| N51/2 | Active Body Control control unit | 44A |
| N51/2 | Active Body Control control unit | 53A |
| N51/2 | Active Body Control control unit | 60A |
| N51/2 | Active Body Control control unit | 67A |
| N51/2 | Active Body Control control unit | 77A |
| N51/2 | Active Body Control control unit | 85A |
| N62 | Parking system control unit | 13L |
| N73 | Electronic ignition switch control unit | 9L |
| W85/2 | Front passenger footwell frame floor assembly ground point | 5H |
| W85/2 | Front passenger footwell frame floor assembly ground point | 8H |
| X258 | 84H | |
| X33/10 | Level sensor electrical connector, special-purpose vehicle | 40H |
| X33/10 | Level sensor electrical connector, special-purpose vehicle | 44H |
| X33/10 | Level sensor electrical connector, special-purpose vehicle | 47H |
| X33/10 | Level sensor electrical connector, special-purpose vehicle | 51H |
| Y30/1 | Left front Active Body Control damping valve | 55L |
| Y30/2 | Right front Active Body Control damping valve | 57L |
| Y30/3 | Left rear Active Body Control damping valve | 60L |
| Y30/4 | Right rear Active Body Control damping valve | 62L |
| Y36/1 | ABC front axle valve unit | 70L |
| Y36/1y1 | Left front suspension strut control valve | 68L |
| Y36/1y2 | Left front suspension strut shutoff valve | 70L |
| Y36/1y3 | Right front suspension strut control valve | 69L |
| Y36/1y4 | Right front suspension strut shutoff valve | 71L |
| Y36/2 | ABC rear axle valve unit | 79L |
| Y36/2y1 | Left rear suspension strut control valve | 78L |
| Y36/2y2 | Left rear suspension strut shutoff valve | 80L |
| Y36/2y3 | Right rear suspension strut control valve | 79L |
| Y36/2y4 | Right rear suspension strut shutoff valve | 81L |
| Y5 | ABC switchover valve | 86L |
| Y86/1 | ABC throttle valve | 84L |
| Z1z15 | Circuit 31 connector sleeve | 8E |
| Z243/1 | Left front axle damping valve unit connector sleeve (signal +) | 54G |
| Z243/2 | Left front axle damping valve unit connector sleeve (signal -) | 55G |
| Z243/3 | Right front axle damping valve unit connector sleeve (signal -) | 58G |
| Z243/4 | Right front axle damping valve unit connector sleeve (signal +) | 57G |
