Remove/Install Steering Wheel - AR46.10-P-0100LF

Model 217, 222

Shown on model 222

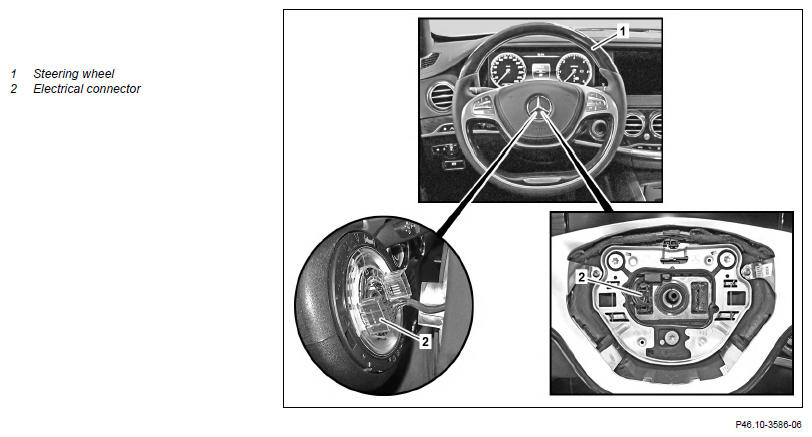

Fig 1: Steering Wheel Component Location - Model 217 (Shown On Model 222)

Courtesy of MERCEDES-BENZ USA

Shown on model 222

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Turn steering wheel (1) to center position.	The front wheels must be in the straight-ahead position.
2	Remove airbag unit from steering wheel (1).		AR91.60-P-0660LF
3	Counterhold steering wheel (1) and remove bolt (1s).	Reuse bolt (1s) and mark with a non-water-soluble pen (color dot).
		Screw/bolt, steering wheel to steering shaft If the bolt (1s) already bears a marking (color dot) ↓ Replace bolt (1s).	*BA46.10-P-1001-02J
4	Remove steering wheel (1) until the electrical connector (2) is accessible.
5	Release and disconnect electrical connector (2).

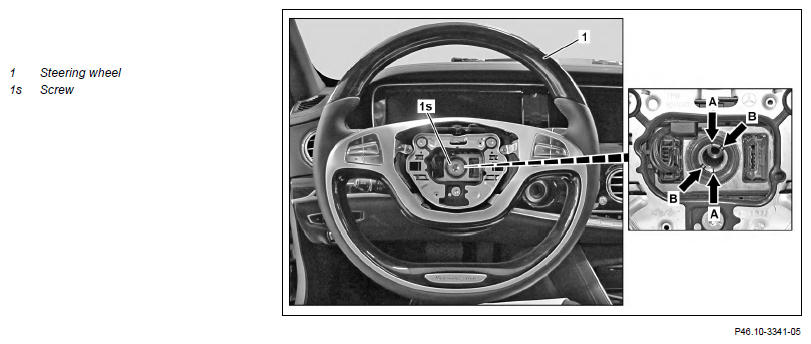

6	Remove steering wheel (1).	Align recesses of the splines (arrows A) in steering wheel (1) with markings on the steering shaft. Model 217.### 2#, 222.### 2# If there are double-line marks (arrows B) present on the steering shaft, match cutouts of spline (arrows A) with double-line marks (arrows B).
7	Install in the reverse order.
