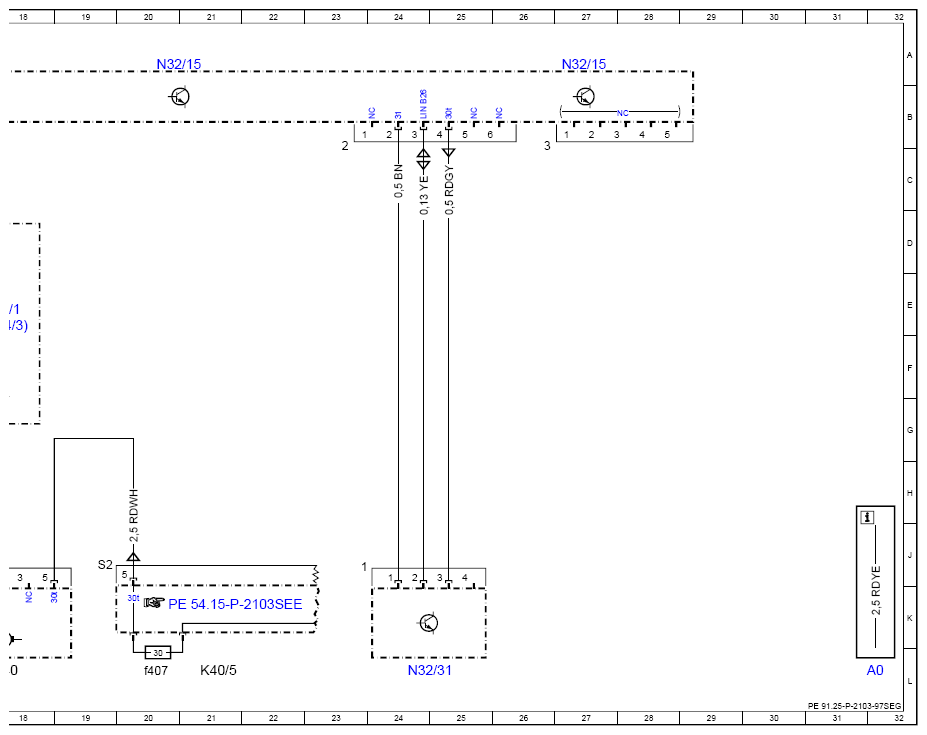

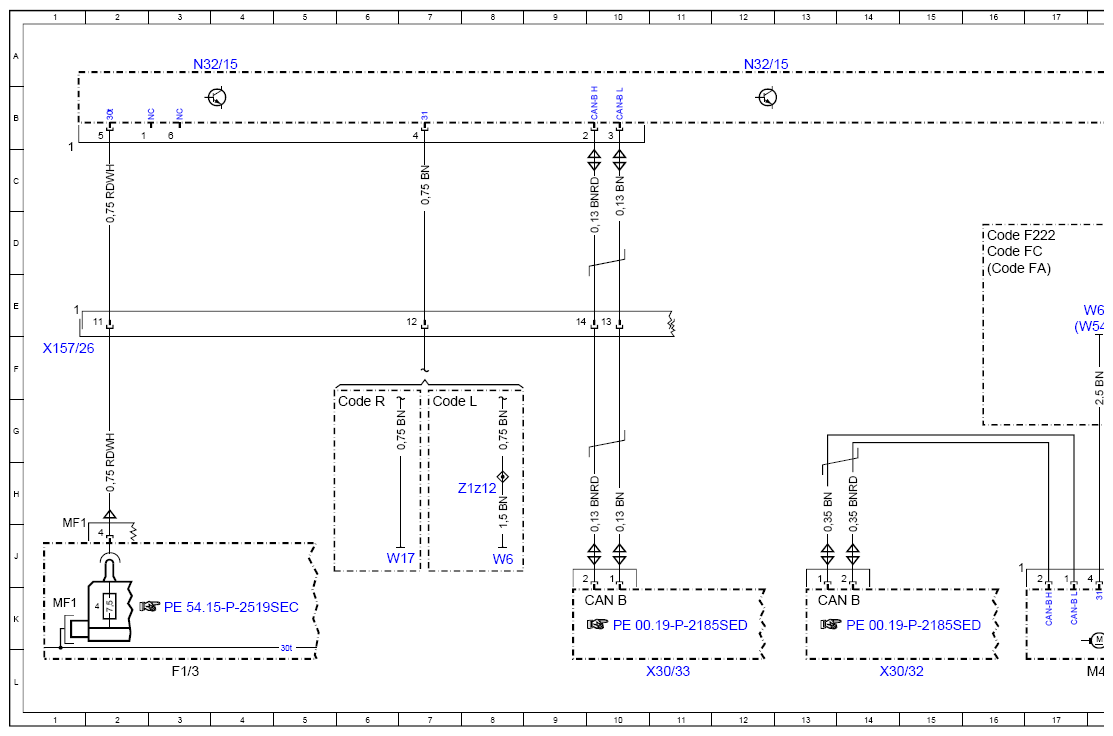

Wiring Diagram For Multicontour Seat Control Unit - PE91.25-P-2103-97SEG
Model 217, 222 as of model year 2018 with code 432 (Dynamic seats left and right) Control unit N32/15
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| CAN B | Interior CAN | 10K |
| CAN B | Interior CAN | 13K |
| Code F222 | MODEL SERIES 222 | 16D |
| Code FA | CABRIOLET | 16D |
| Code FC | COUPE | 16D |
| Code L | LEFT-HAND DRIVE | 7G |
| Code R | RIGHT-HAND DRIVE | 6G |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3MF1 | Multiple fuse 1 | IK |
| K40/5 | Rear fuse and relay module | 21L |
| K40/5f407 | Fuse 407 | 20L |
| M40 | Multicontour seat pneumatic pump | 18L |
| N32/15 | Left front multicontour seat control unit | 3A |
| N32/15 | Left front multicontour seat control unit | 12A |
| N32/15 | Left front multicontour seat control unit | 27A |
| N32/15 | Left front multicontour seat control unit | 20A |
| N32/31 | Left front seat massage function control unit | 24L |
| W17 | Right rear seat ground point | 6J |
| W54/3 | Left rear wheel well ground point | 17E |
| W6 | Left wheel arch trunk ground point | 8J |
| W6/1 | Left taillamp trunk ground point | 18E |
| X157/26 | Driver seat heater control unit ambiance illumination electrical connector | IF |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 14L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 11L |
| Z1z12 | Circuit 31 connector sleeve | 8H |
