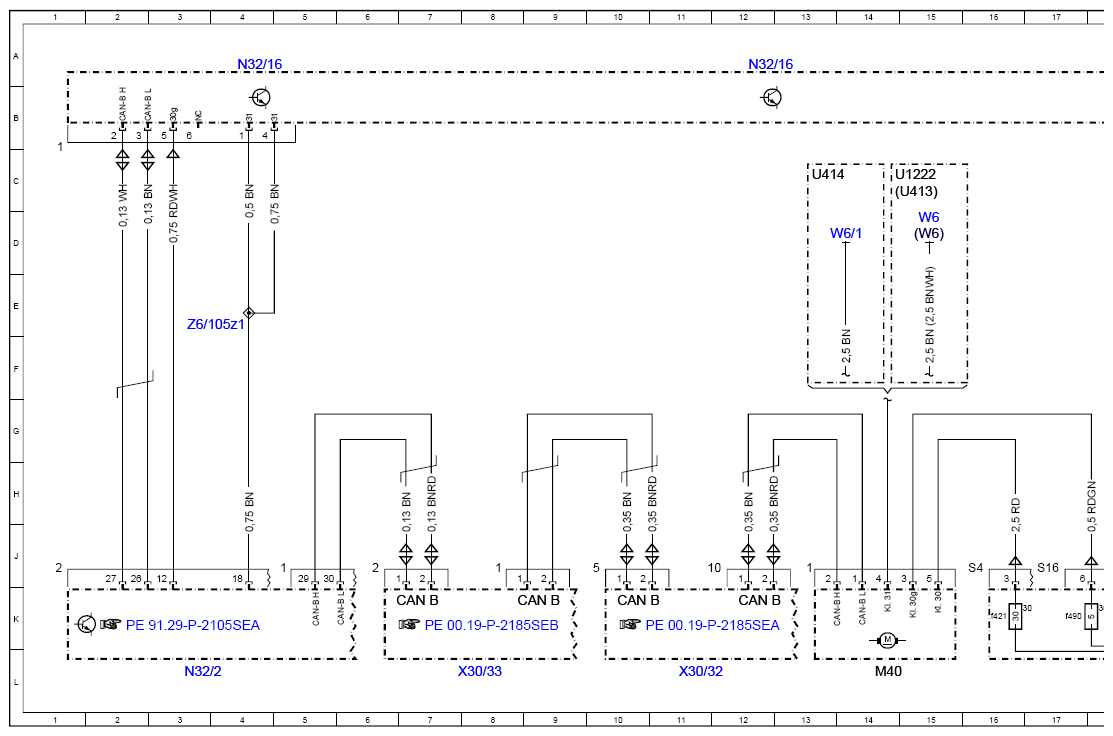

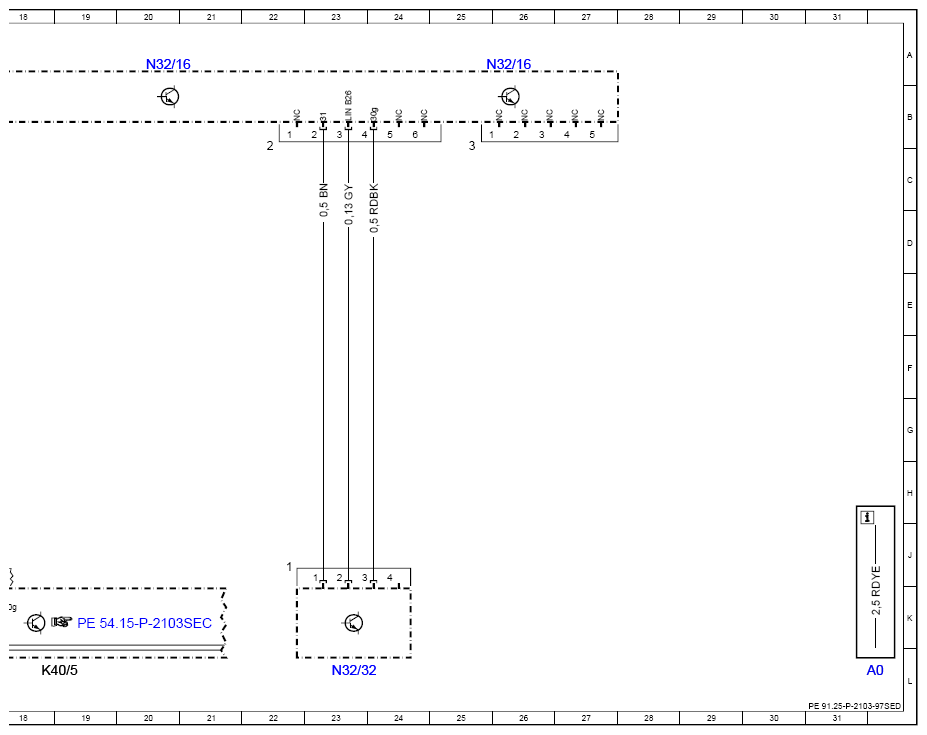

Wiring Diagram For Multicontour Seat Control Unit - PE91.25-P-2103-97SED
Model 217 up to model year 2018 with code 432 (Dynamic seats left and right) Control unit N32/16
Model 222 up to model year 2018 with code 432 (Dynamic seats left and right) Control unit N32/16
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| CAN B | Interior CAN | 12K |
| CAN B | Interior CAN | 10K |
| CAN B | Interior CAN | 9K |
| CAN B | Interior CAN | 7K |
| K40/5 | Rear fuse and relay module | 18L |
| K40/5f421 | Fuse 421 | 16K |
| K40/5f490 | Fuse 490 | 17K |
| M40 | Multicontour seat pneumatic pump | 14L |
| N32/16 | Right front multicontour seat control unit | 4A |
| N32/16 | Right front multicontour seat control unit | 26A |
| N32/16 | Right front multicontour seat control unit | 12A |
| N32/16 | Right front multicontour seat control unit | 20A |
| N32/2 | Front passenger seat control unit | 3L |
| N32/32 | Right front seat massage function control unit | 23L |
| U1222 | Valid for model series 222 | 14C |
| U413 | Valid for model 217.3 | 14C |
| U414 | Valid for model 217.4 | 13C |
| W6 | Left wheel arch trunk ground point | 15D |
| W6 | Left wheel arch trunk ground point | 15D |
| W6/1 | Left taillamp trunk ground point | 14D |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 11L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 8L |
| Z6/105z1 | Front passenger seat lumbar support ground line connector sleeve | 4E |
