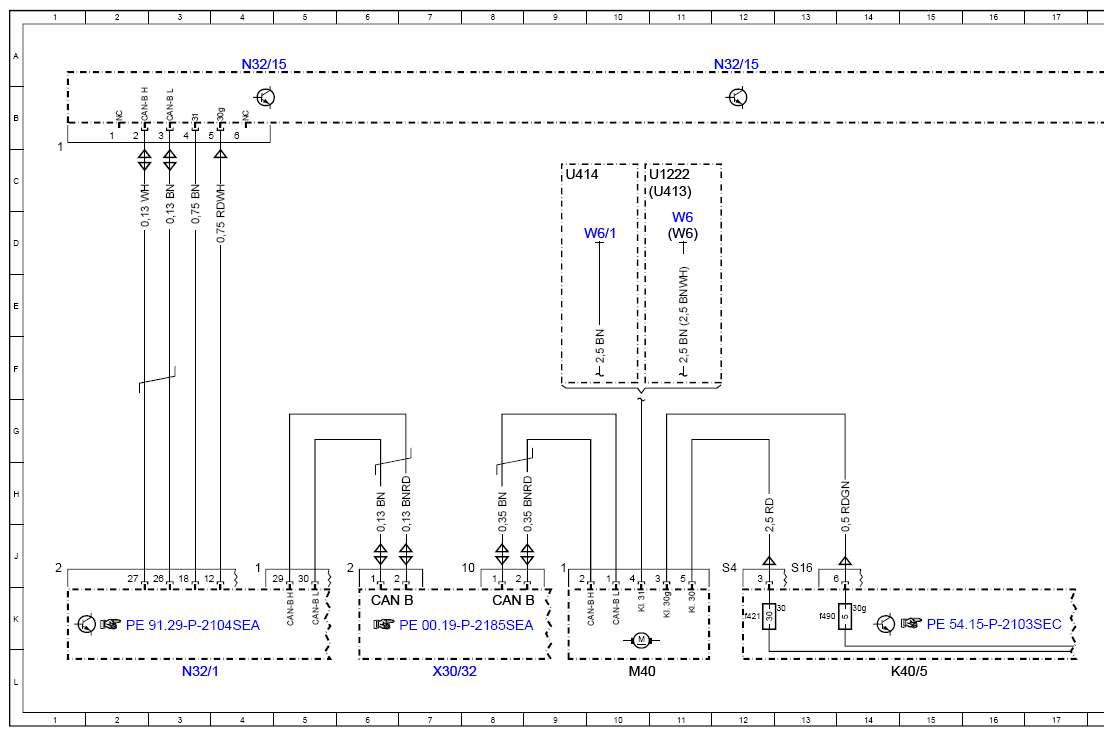

Wiring Diagram For Multicontour Seat Control Unit - PE91.25-P-2103-97SEC
Model 217 up to model year 2018 with code 432 (Dynamic seats left and right) Control unit N32/15
Model 222 up to model year 2018 with code 432 (Dynamic seats left and right) Control unit N32/15
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| CAN B | Interior CAN | 8K |
| CAN B | Interior CAN | 6K |
| K40/5 | Rear fuse and relay module | 15L |
| K40/5f421 | Fuse 421 | 12K |
| K40/5f490 | Fuse 490 | 13K |
| M40 | Multicontour seat pneumatic pump | 10L |
| N32/1 | Driver seat control unit | 3L |
| N32/15 | Left front multicontour seat control unit | 4A |
| N32/15 | Left front multicontour seat control unit | 22A |
| N32/15 | Left front multicontour seat control unit | 12A |
| N32/31 | Left front seat massage function control unit | 19L |
| U1222 | Valid for model series 222 | 10C |
| U413 | Valid for model 217.3 | 10C |
| U414 | Valid for model 217.4 | 9C |
| W6 | Left wheel arch trunk ground point | 11D |
| W6 | Left wheel arch trunk ground point | 11D |
| W6/1 | Left taillamp trunk ground point | 10D |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 7L |
