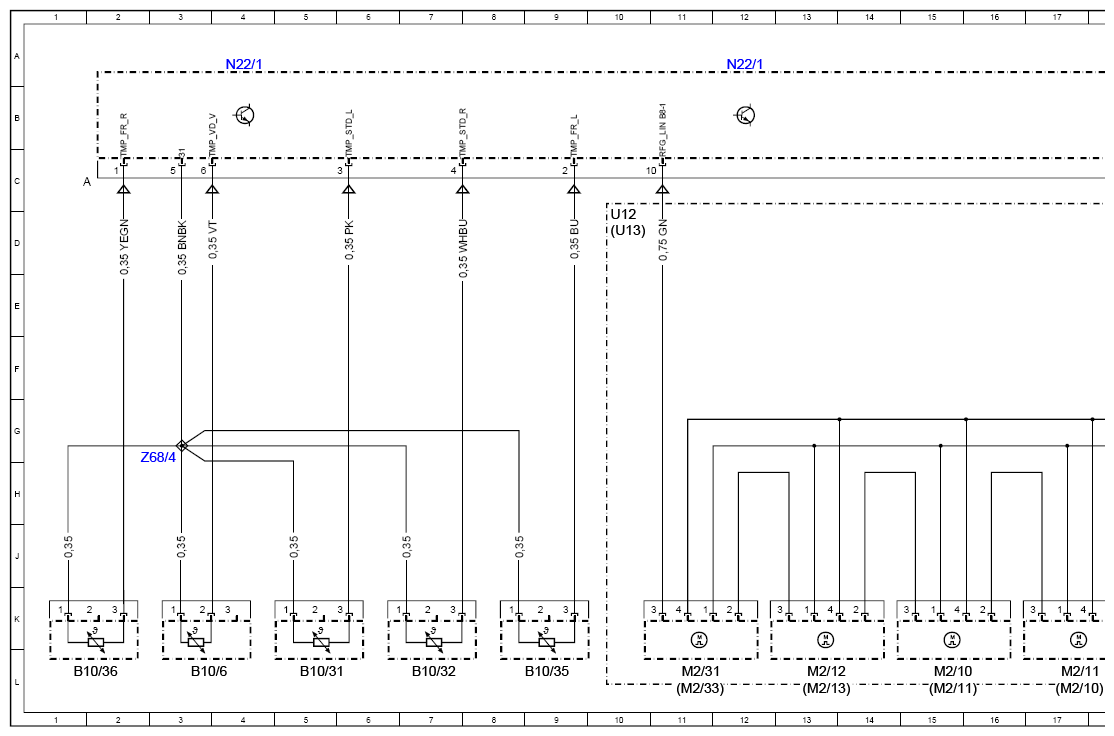

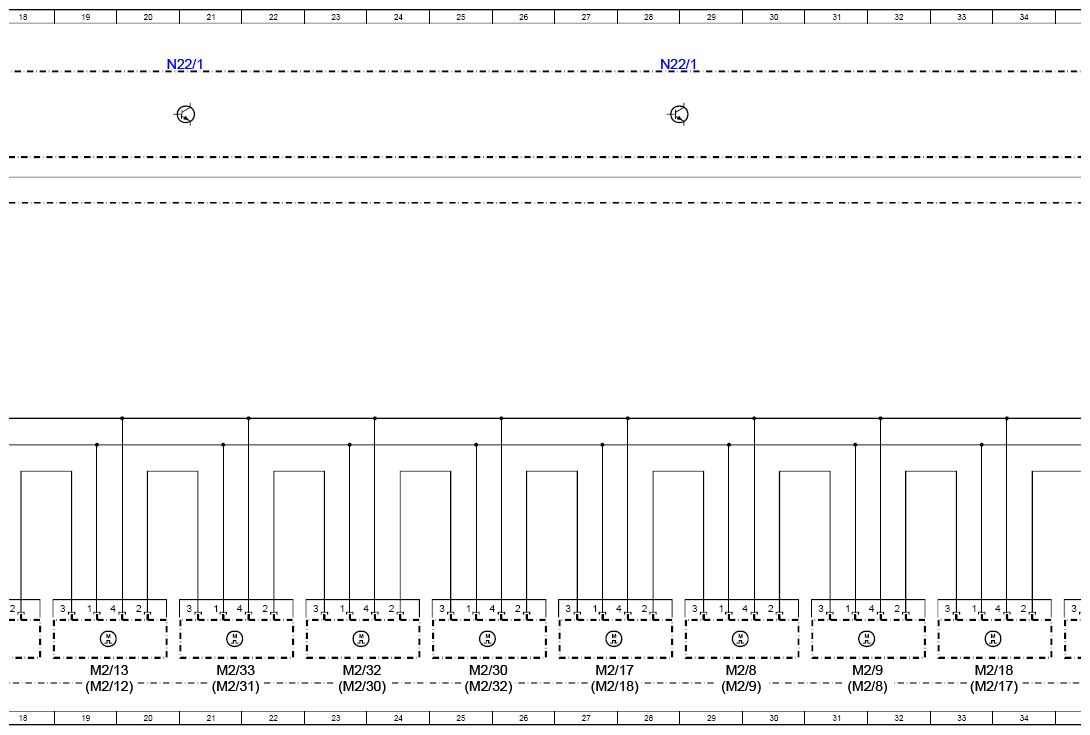

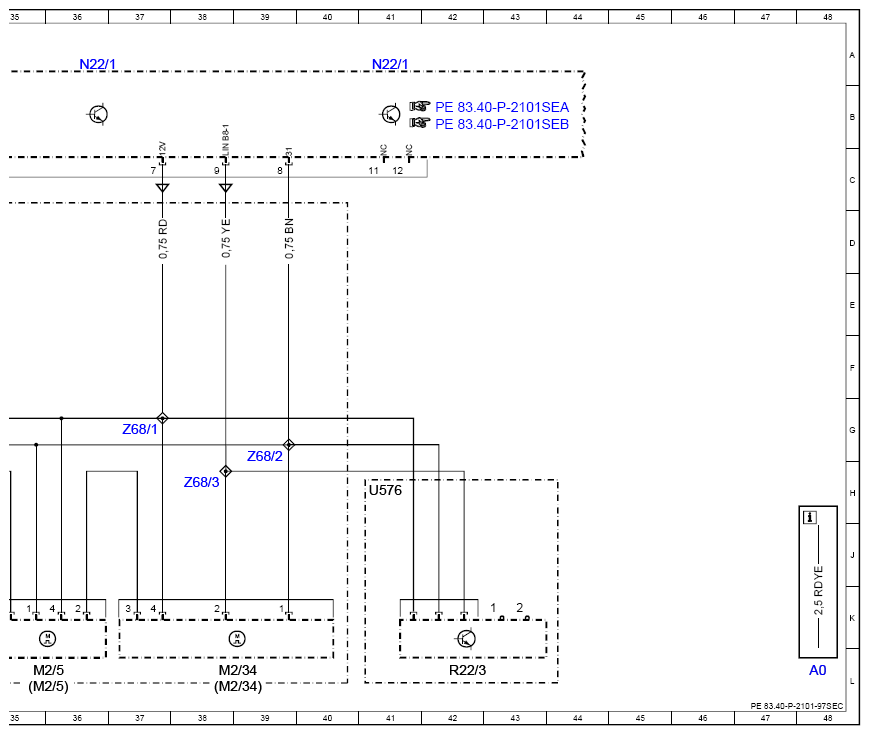

Wiring Diagram Of Automatic Air Conditioning (AAC) Control Unit - PE83.40-P-2101-97SEC
Model 217 up to model year 2018 Control unit N22/1, Sheet 3
Model 222 up to model year 2018 Control unit N22/1, Sheet 3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| B10/31 | Left side air outlet temperature sensor | 5L |
| B10/32 | Right side air outlet temperature sensor | 7L |
| B10/35 | Left footwell air outlet temperature sensor | 9L |
| B10/36 | Right footwell air outlet temperature sensor | 1L |
| B10/6 | Evaporator temperature sensor | 3L |
| M2/10 | Left footwell flap actuator motor | 17L |
| M2/10 | Left footwell flap actuator motor | 15L |
| M2/11 | Right footwell flap actuator motor | 17L |
| M2/11 | Right footwell flap actuator motor | 15L |
| M2/12 | Left center air outlet flap actuator motor | 19L |
| M2/12 | Left center air outlet flap actuator motor | 13L |
| M2/13 | Right center air outlet flap actuator motor | 19L |
| M2/13 | Right center air outlet flap actuator motor | 13L |
| M2/17 | Left side outlet flap actuator motor | 33L |
| M2/17 | Left side outlet flap actuator motor | 27L |
| M2/18 | Right side outlet flap actuator motor | 33L |
| M2/18 | Right side outlet flap actuator motor | 27L |
| M2/30 | Upper left blending air flap actuator motor | 23L |
| M2/30 | Upper left blending air flap actuator motor | 25L |
| M2/31 | Lower left blending air flap actuator motor | 21L |
| M2/31 | Lower left blending air flap actuator motor | 11L |
| M2/32 | Upper right blending air flap actuator motor | 25L |
| M2/32 | Upper right blending air flap actuator motor | 23L |
| M2/33 | Lower right blending air flap actuator motor | 21L |
| M2/33 | Lower right blending air flap actuator motor | 11L |
| M2/34 | Fresh air/ram air flap actuator motor | 38L |
| M2/34 | Fresh air/ram air flap actuator motor | 38L |
| M2/5 | Air recirculation flap actuator motor | 35L |
| M2/5 | Air recirculation flap actuator motor | 35L |
| M2/8 | Left defroster vent flap actuator motor | 31L |
| M2/8 | Left defroster vent flap actuator motor | 29L |
| M2/9 | Right defroster vent flap actuator motor | 31L |
| M2/9 | Right defroster vent flap actuator motor | 29L |
| N22/1 | Climate control control unit | 4A |
| N22/1 | Climate control control unit | 12A |
| N22/1 | Climate control control unit | 20A |
| N22/1 | Climate control control unit | 28A |
| N22/1 | Climate control control unit | 36A |
| N22/1 | Climate control control unit | 41A |
| R22/3 | PTC heater booster | 42L |
| U12 | Valid for left-hand drive vehicles | 10D |
| U13 | Valid for right-hand drive vehicles | 10D |
| U576 | Valid for heater booster | 41H |
| Z68/1 | Connector sleeve, 12V climate control LIN 1 | 37G |
| Z68/2 | Connector sleeve, ground line for climate control LIN 1 | 39G |
| Z68/3 | Connector sleeve, data line for climate control LIN 1 | 38H |
| Z68/4 | Connector sleeve, climate control sensor ground | 3G |
