Remove/Install Outside Air Temperature Sensor - AR83.30-P-8086LC

MODEL 217

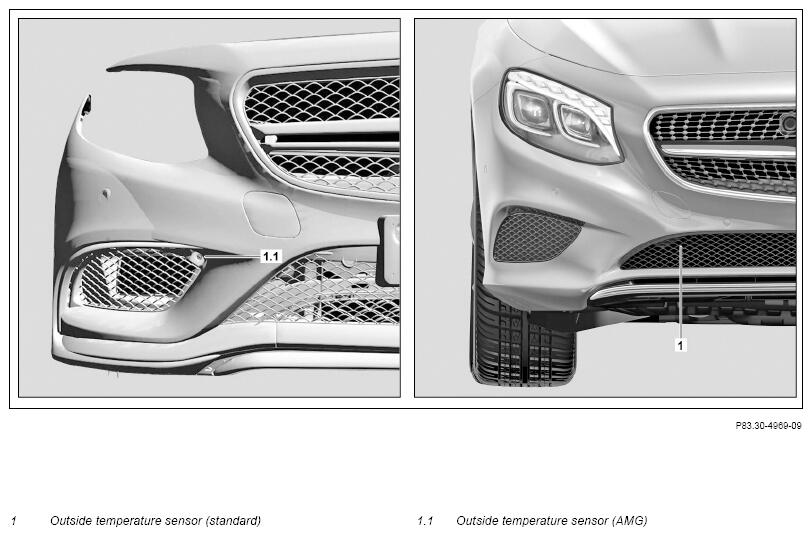

Fig 1: Outside Air Temperature Sensor Component Location - Model 217

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

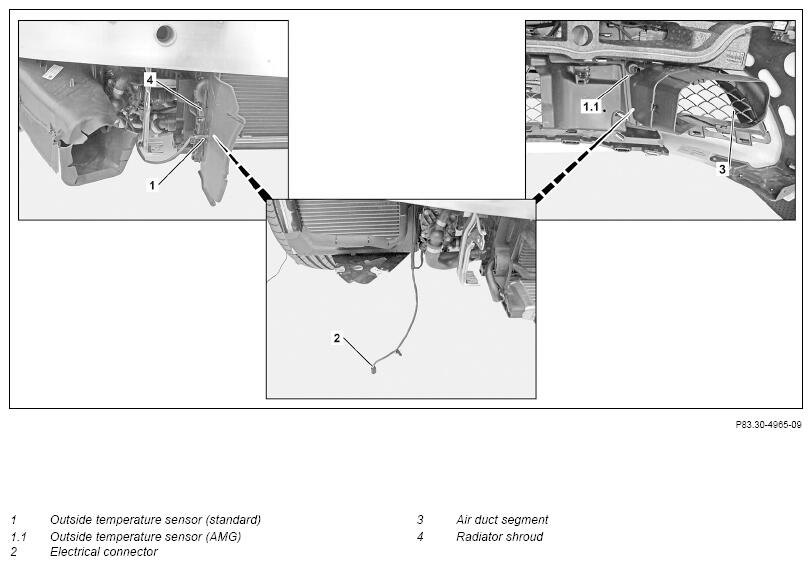

Shown with removed bumper

	Remove/install
1	Detach lower engine compartment paneling		AR61.20-P-1105LF
2.1	Unclip outside temperature sensor (1) from right radiator shroud (4)	MODEL 217 without CODE 772 (AMG bodystyling)
2.2	Unclip outside temperature sensor (1.1) from right air duct segment (3) at bumper	MODEL 217 with CODE 772 (AMG bodystyling)
3	Disconnect electrical connector (2)
4	Install in the reverse order
