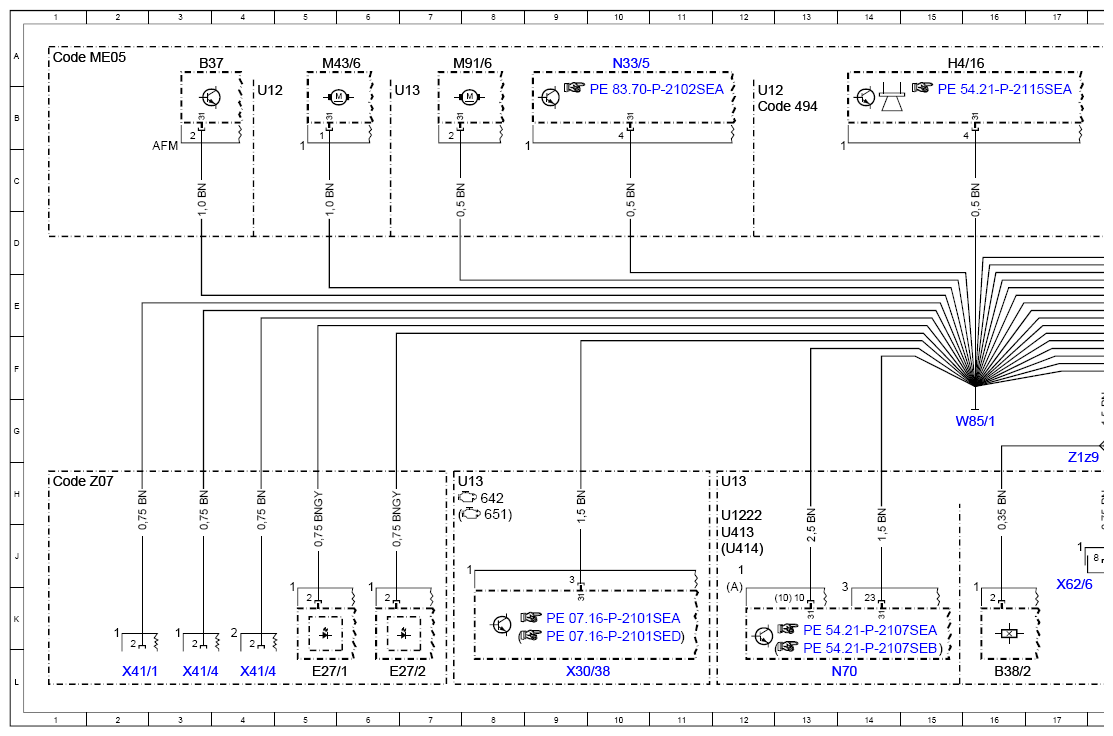

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97SEF
Model 217 up to model year 2018
W85/1, W85/2
Model 222 up to model year 2018
W85/1, W85/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 145L |
| A40/11 | Mono multifunction camera | 24A |
| A40/13 | Stereo multifunction camera | 28A |
| A6 | Stationary heater unit | 85A |
| A90 | COLLISION PREVENTION ASSIST controller unit | 82L |
| A90 | COLLISION PREVENTION ASSIST controller unit | 116L |
| A98 | Panoramic sliding roof control module | 59L |
| A98 | Panoramic sliding roof control module | 55L |
| A98/2 | Panoramic roof roller sun blind control module | 51L |
| A98/2 | Panoramic roof roller sun blind control module | 63L |
| B11/15 | Radiator sensor for engine diagnosis | 80L |
| B11/15 | Radiator sensor for engine diagnosis | 77L |
| B29 | Front long-range radar sensor | 89L |
| B29/2 | Left front bumper radar sensor | 39L |
| B29/2 | Left front bumper radar sensor | 119L |
| B29/3 | Right front bumper radar sensor | 40L |
| B29/3 | Right front bumper radar sensor | 120L |
| B37 | Accelerator pedal sensor | 3A |
| B38/2 | Rain/light sensor with additional functions | 16L |
| B38/2 | Rain/light sensor with additional functions | 129L |
| Code 228 | Stationary heater | 83A |
| Code 233 | DISTRONIC PLUS | 87H |
| Code 258 | COLLISION PREVENTION ASSIST | 81G |
| Code 258 | COLLISION PREVENTION ASSIST | 114D |
| Code 398 | Panoramic roof with MAGIC SKY CONTROL | 61F |
| Code 398 | Panoramic roof with MAGIC SKY CONTROL | 57F |
| Code 413 | Panoramic sliding sunroof | 53F |
| Code 487 | MAGIC BODY CONTROL | 98H |
| Code 487 | MAGIC BODY CONTROL | 102H |
| Code 489 | AIRMATIC | 98G |
| Code 489 | AIRMATIC | 102G |
| Code 494 | USA version | 12B |
| Code 494 | USA version | 91H |
| Code 494 | USA version | 76G |
| Code 882 | Interior protection (only with ATA [EDW]) | 26H |
| Code 882 | Interior protection (only with ATA [EDW]) | 110C |
| Code 882 | Interior protection (only with ATA [EDW]) | 121D |
| Code 917 | PZEV emission USA | 78H |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 1A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 67A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 91H |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 94H |
| Code P20 | Driver assistance package | 36G |
| Code P20 | Driver assistance package | 118D |
| Code U25 | Illuminated door sills | 45F |
| Code Z07 | Top protection | 1H |
| Code Z07 | Top protection | 130A |
| E17/47 | Left front illuminated door sill molding | 47L |
| E17/47x1 | Left front illuminated door sill molding electrical connector | 46H |
| E17/51 | Left rear illuminated door sill molding | 48L |
| E27/1 | Left flashing light | 5L |
| E27/2 | Right flashing light | 7L |
| H3/1 | Alarm siren | 28L |
| H3/1 | Alarm siren | 122L |
| H4/16 | Sound generator | 15A |
| H4/16 | Sound generator | 92L |
| M43/6 | Low temperature circuit circulation pump 1 | 5A |
| M43/6 | Low temperature circuit circulation pump 1 | 69A |
| M91/6 | Heater circuit circulation pump | 8A |
| M91/6 | Heater circuit circulation pump | 71A |

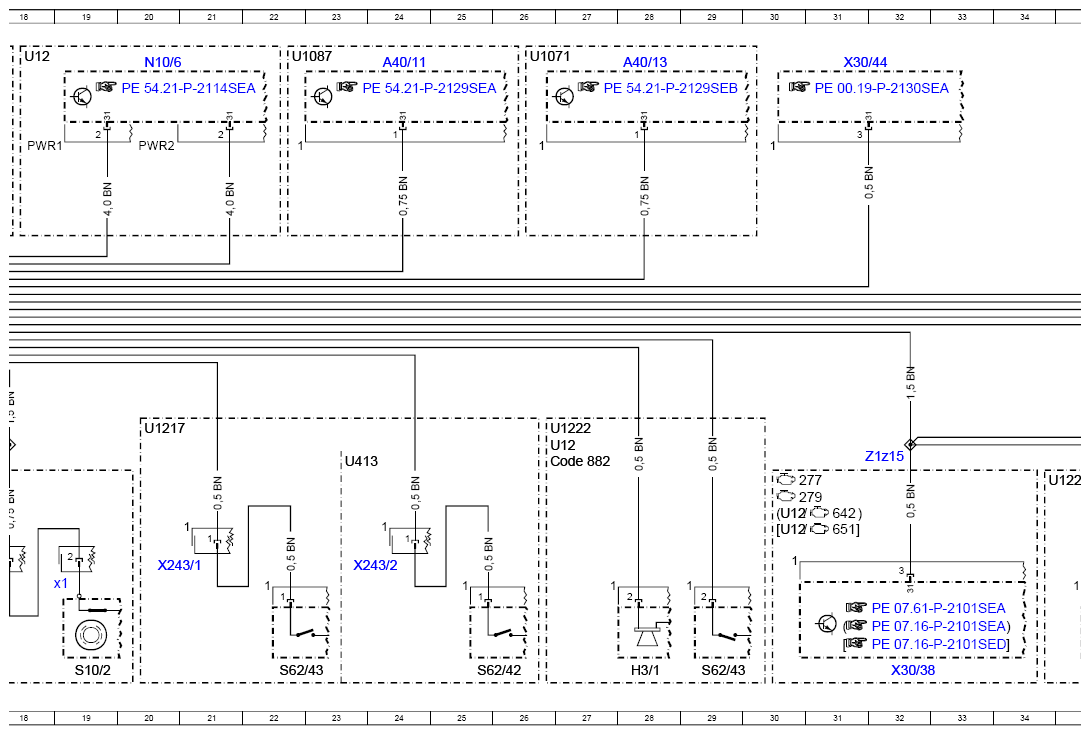

| N10/6 | Front SAM control unit | 20A |
| N10/6 | Front SAM control unit | 78A |
| N127 | Drivetrain control unit | 112L |
| N129/1 | Power electronics control unit | 96L |
| N33/5 | High-voltage PTC heater | 10A |
| N33/5 | High-voltage PTC heater | 73A |
| N51/2 | Active Body Control control unit | 100L |
| N51/2 | Active Body Control control unit | 104L |
| N51/3 | AIRMATIC control unit | 104L |
| N51/3 | AIRMATIC control unit | 100L |
| N53 | MAGIC SKY CONTROL control unit | 67L |
| N69/1 | Left front door control unit | 43L |
| N69/1 | Left front door control unit | 107L |
| N69/2 | Right front door control unit | 43L |
| N69/2 | Right front door control unit | 107L |
| N70 | Overhead control panel control unit | 14L |
| N70 | Overhead control panel control unit | 71L |
| S10/2 | Right front brake wear sensor | 19L |
| S10/2 | Right front brake wear sensor | 75L |
| S10/2x1 | Right front brake wear sensor electrical connector | 19K |
| S10/2x1 | Right front brake wear sensor electrical connector | 75K |
| S62/42 | Right engine hood contact switch | 25L |
| S62/42 | Right engine hood contact switch | 35L |
| S62/42 | Right engine hood contact switch | 86L |
| S62/43 | Left engine hood contact switch | 22L |
| S62/43 | Left engine hood contact switch | 29L |
| S62/43 | Left engine hood contact switch | 124L |
| U1071 | Valid for stereo multifunction camera | 26A |
| U1087 | Valid for mono multifunction camera | 22A |
| U12 | Valid for left-hand drive vehicles | 26G |
| U12 | Valid for left-hand drive vehicles | 30H |
| U12 | Valid for left-hand drive vehicles | 30J |
| U12 | Valid for left-hand drive vehicles | 36G |
| U12 | Valid for left-hand drive vehicles | 69H |
| U12 | Valid for left-hand drive vehicles | 4B |
| U12 | Valid for left-hand drive vehicles | 12B |
| U12 | Valid for left-hand drive vehicles | 18A |
| U12 | Valid for left-hand drive vehicles | 41F |
| U12 | Valid for left-hand drive vehicles | 57C |
| U12 | Valid for left-hand drive vehicles | 70B |
| U12 | Valid for left-hand drive vehicles | 81G |
| U12 | Valid for left-hand drive vehicles | 98G |
| U12 | Valid for left-hand drive vehicles | 106G |
| U12 | Valid for left-hand drive vehicles | 110G |
| U12 | Valid for left-hand drive vehicles | 112G |
| U12 | Valid for left-hand drive vehicles | 112D |
| U12 | Valid for left-hand drive vehicles | 125C |
| U1217 | Valid for model series 217 | 20G |
| U1217 | Valid for model series 217 | 49E |
| U1217 | Valid for model series 217 | 61E |
| U1217 | Valid for model series 217 | 112C |
| U1222 | Valid for model series 222 | 12H |
| U1222 | Valid for model series 222 | 26G |
| U1222 | Valid for model series 222 | 34H |
| U1222 | Valid for model series 222 | 69H |
| U1222 | Valid for model series 222 | 53E |
| U1222 | Valid for model series 222 | 57E |
| U1222 | Valid for model series 222 | 110G |
| U1222 | Valid for model series 222 | 110C |
| U1222 | Valid for model series 222 | 123D |
| U13 | Valid for right-hand drive vehicles | 41F |
| U13 | Valid for right-hand drive vehicles | 7H |
| U13 | Valid for right-hand drive vehicles | 12H |
| U13 | Valid for right-hand drive vehicles | 6B |
| U13 | Valid for right-hand drive vehicles | 55C |
| U13 | Valid for right-hand drive vehicles | 67B |
| U13 | Valid for right-hand drive vehicles | 91H |
| U13 | Valid for right-hand drive vehicles | 106G |
| U13 | Valid for right-hand drive vehicles | 102G |
| U13 | Valid for right-hand drive vehicles | 110H |
| U13 | Valid for right-hand drive vehicles | 112C |
| U13 | Valid for right-hand drive vehicles | 110D |
| U13 | Valid for right-hand drive vehicles | 114C |
| U13 | Valid for right-hand drive vehicles | 76A |
| U1501 | Valid without code (398) Panoramic roof with MAGIC SKY CONTROL | 49F |
| U413 | Valid for model 217.3 | 12J |
| U413 | Valid for model 217.3 | 23H |
| U413 | Valid for model 217.3 | 69J |
| U413 | Valid for model 217.3 | 112D |
| U414 | Valid for model 217.4 | 12J |
| U414 | Valid for model 217.4 | 69J |
| U414 | Valid for model 217.4 | 84G |
| U414 | Valid for model 217.4 | 112G |

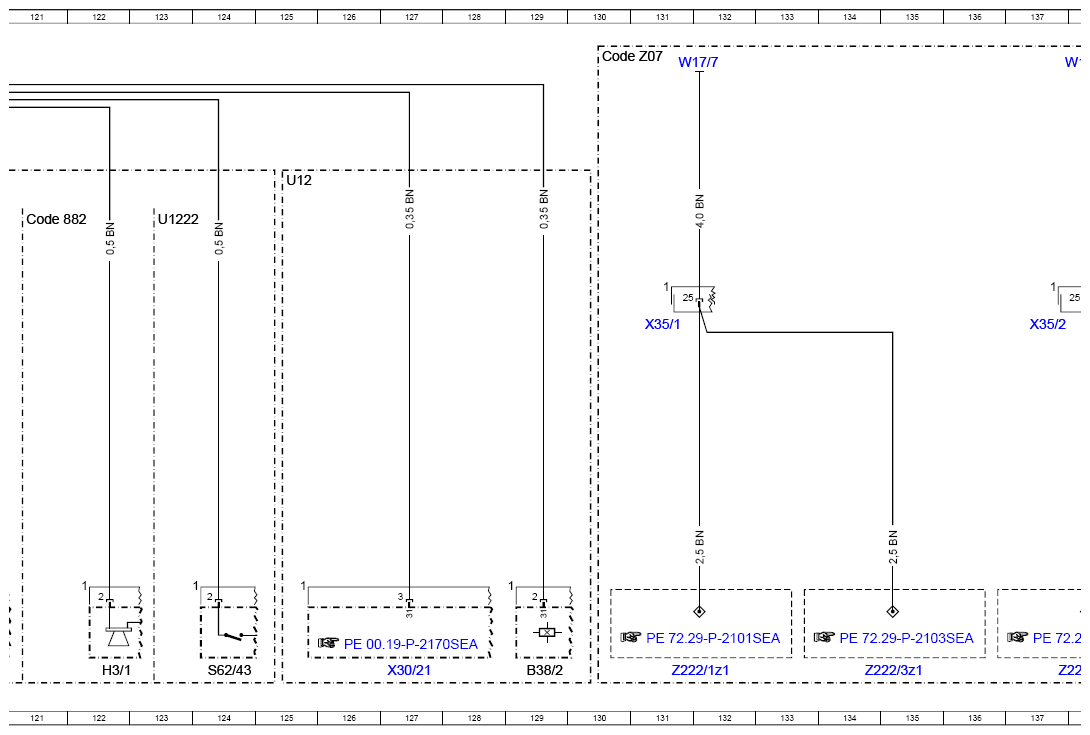

| W17/7 | Left rear seat ground point | 131A |

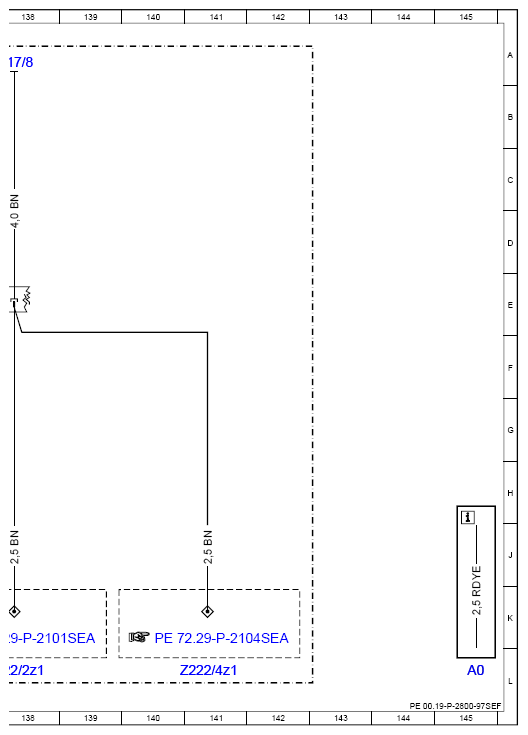

| W17/8 | Right rear seat ground point | 138A |
| W85/1 | Driver footwell frame floor assembly ground point | 16G |

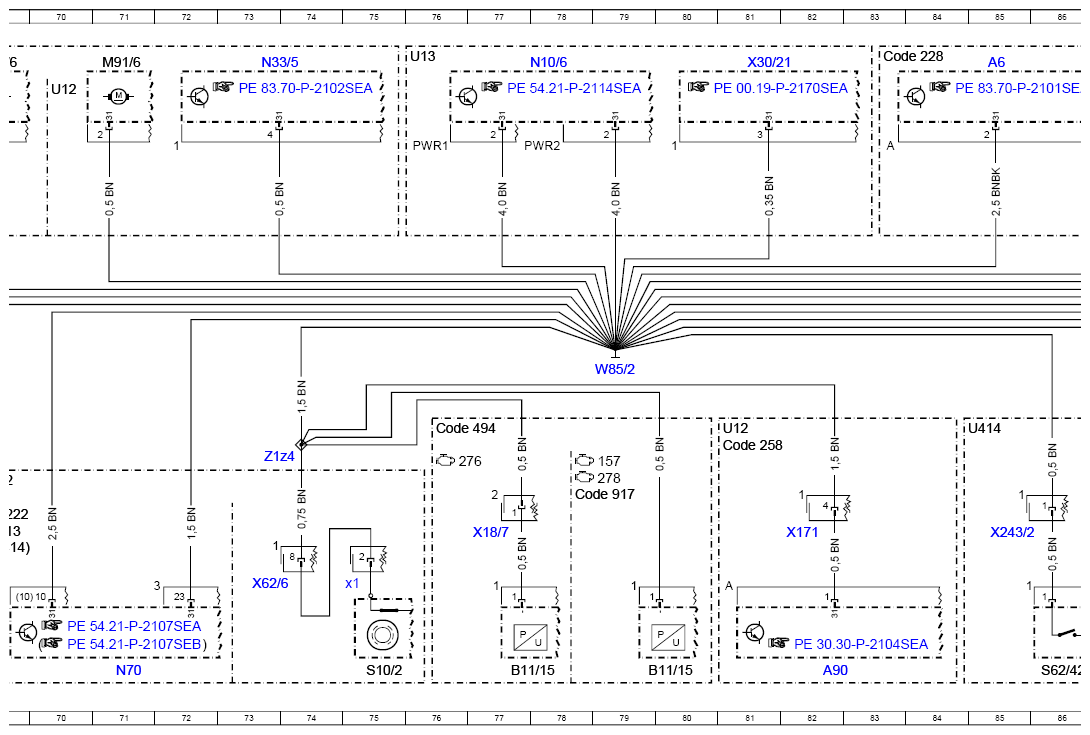

| W85/2 | Front passenger footwell frame floor assembly ground point | 79F |
| X133/3 | MAGIC SKY CONTROL electrical connector | 63H |
| X171 | COLLISION PREVENTION ASSIST electrical connector | 82J |

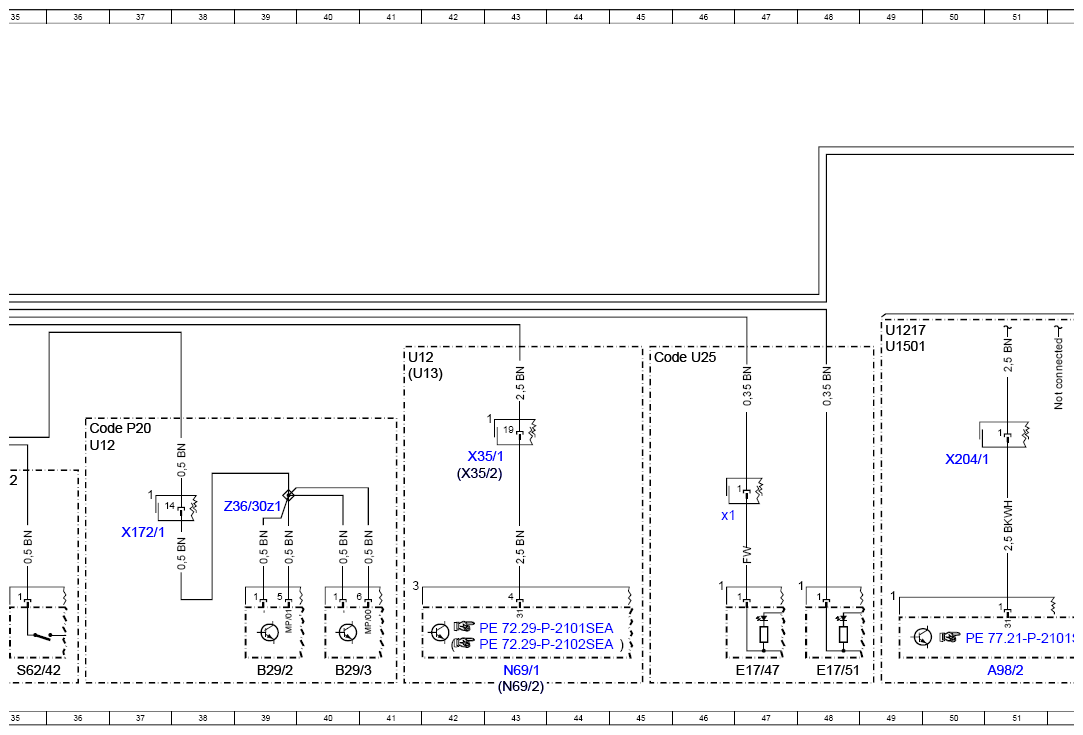

| X172/1 | Front bumper radar sensors electrical connector | 37J |
| X172/1 | Front bumper radar sensors electrical connector | 118E |
| X172/1 | Front bumper radar sensors electrical connector | 115E |
| X18/7 | Vehicle interior and engine compartment electrical connector | 77J |

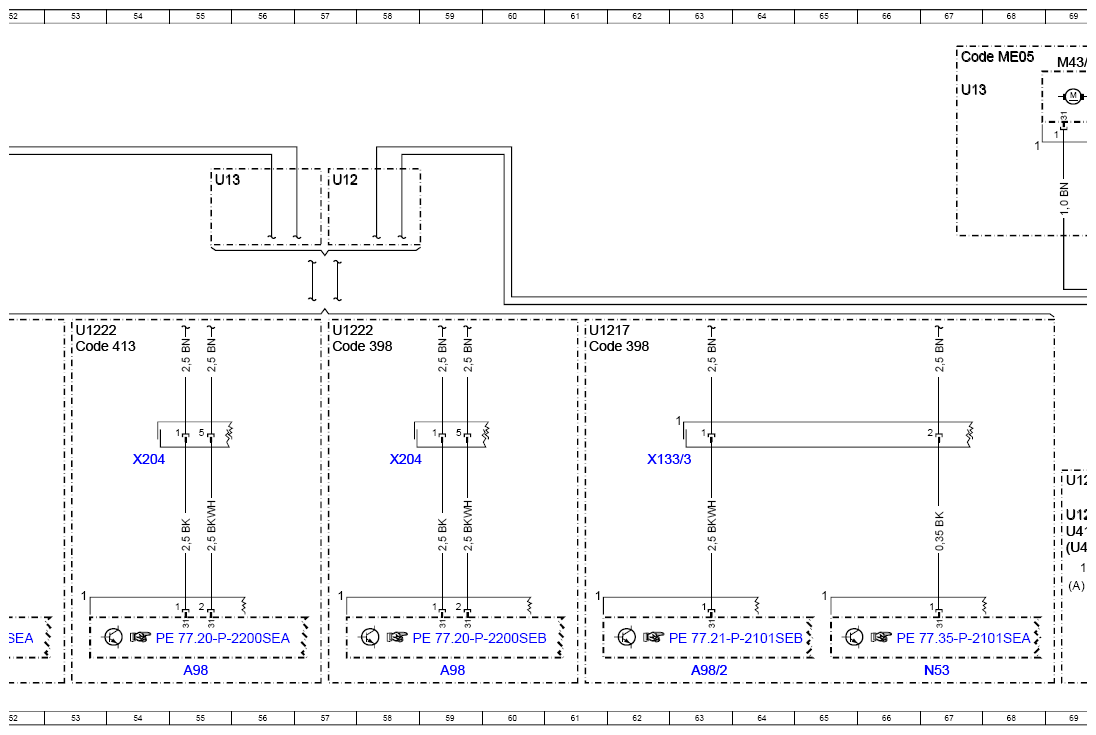

| X204 | Panoramic sliding roof electrical connector | 54H |
| X204 | Panoramic sliding roof electrical connector | 58H |
| X204/1 | Panoramic roof roller sun blind electrical connector | 50H |
| X243/1 | Left engine hood contact switch electrical connector | 20J |
| X243/2 | Right engine hood contact switch electrical connector | 24J |
| X243/2 | Right engine hood contact switch electrical connector | 85J |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 127L |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 81A |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor electrical connector | 9L |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor electrical connector | 32L |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 31A |
| X35/1 | Left front door electrical connector | 43H |
| X35/1 | Left front door electrical connector | 107J |
| X35/1 | Left front door electrical connector | 131E |
| X35/2 | Right front door electrical connector | 42H |
| X35/2 | Right front door electrical connector | 107J |
| X35/2 | Right front door electrical connector | 137E |
| X41/1 | Rotating beacon electrical connector | 2L |
| X41/4 | Rotating beacon electrical connector | 3L |
| X41/4 | Rotating beacon electrical connector | 4L |
| X62/6 | Front axle electrical connector, right distributor | 73K |
| X62/6 | Front axle electrical connector, right distributor | 17K |

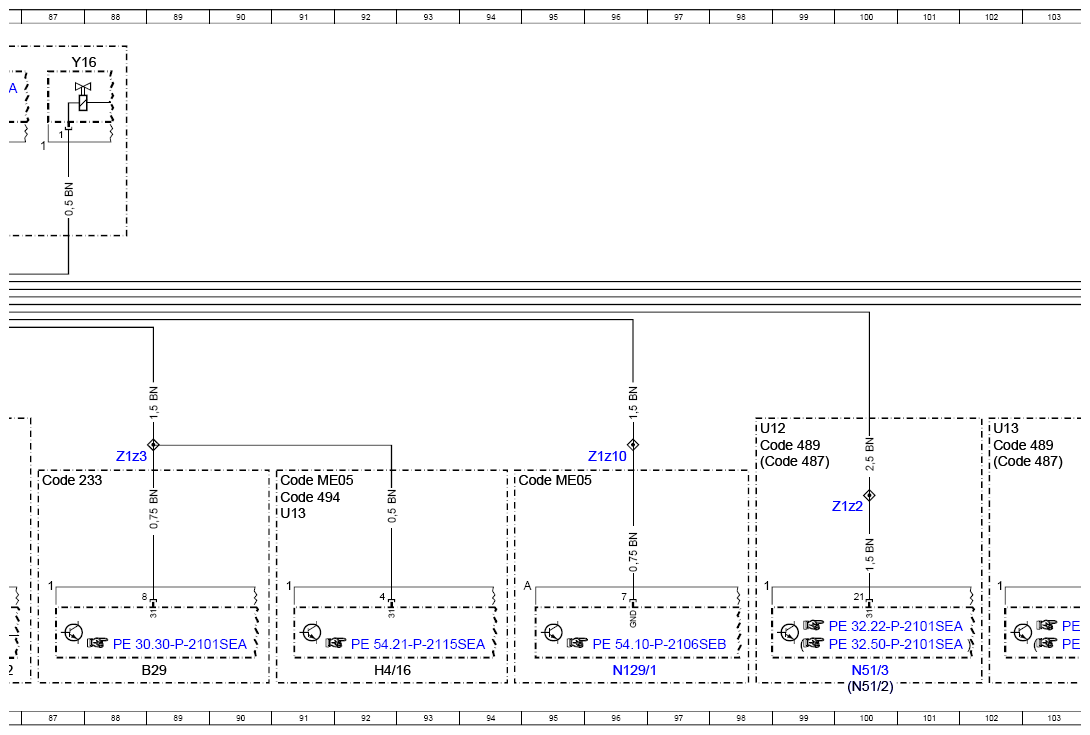

| Y16 | Stationary heater switchover valve | 87A |

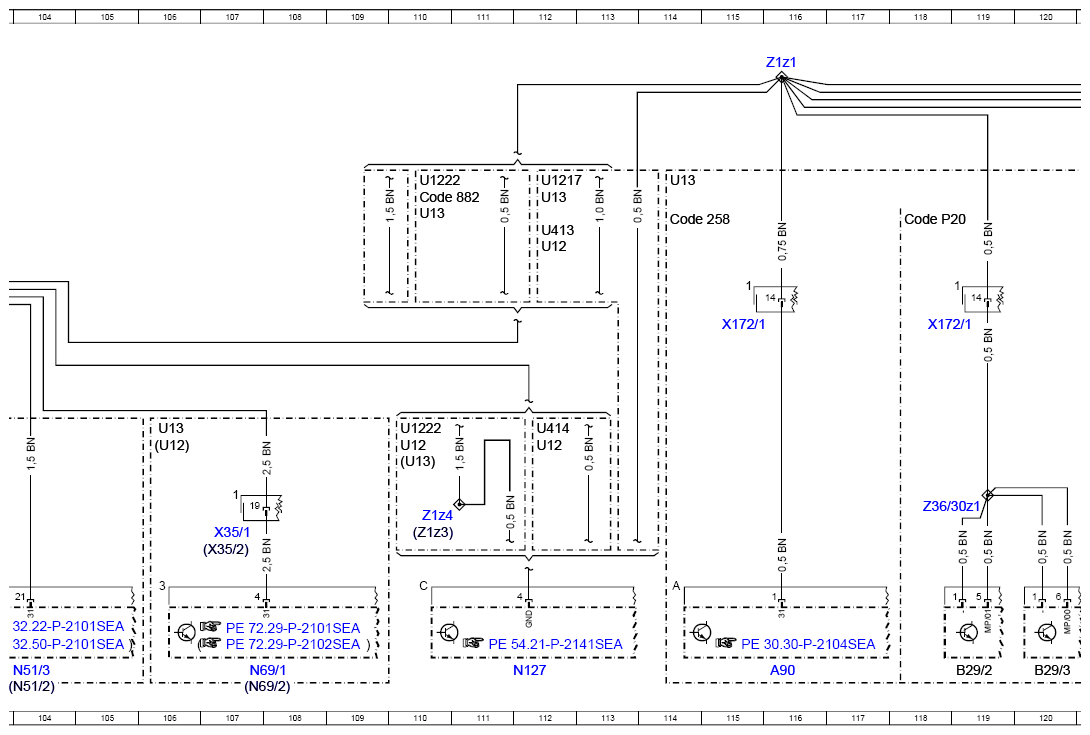

| Z1z1 | Connector sleeve 2 in wiring harness | 116A |
| Z1z10 | Circuit 31 connector sleeve | 96G |
| Z1z15 | Circuit 31 connector sleeve | 32G |
| Z1z2 | Circuit 31 connector sleeve | 100H |
| Z1z3 | Circuit 31 connector sleeve | 88G |
| Z1z3 | Circuit 31 connector sleeve | 110J |
| Z1z4 | Circuit 31 connector sleeve | 74G |
| Z1z4 | Circuit 31 connector sleeve | 110H |
| Z1z9 | Circuit 31 connector sleeve | 17G |
| Z222/1z1 | Left front door hydraulic power window connector sleeve | 131L |
| Z222/2z1 | Right front door hydraulic power window connector sleeve | 138L |
| Z222/3z1 | Left rear door hydraulic power window connector sleeve | 134L |
| Z222/4z1 | Right rear door hydraulic power window connector sleeve | 141L |
| Z36/30z1 | Front radar sensors ground line connector sleeve | 39H |
| Z36/30z1 | Front radar sensors ground line connector sleeve | 118H |
