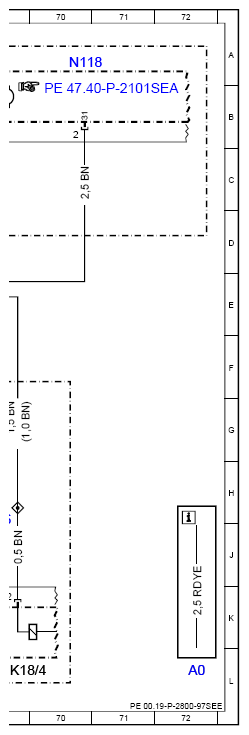

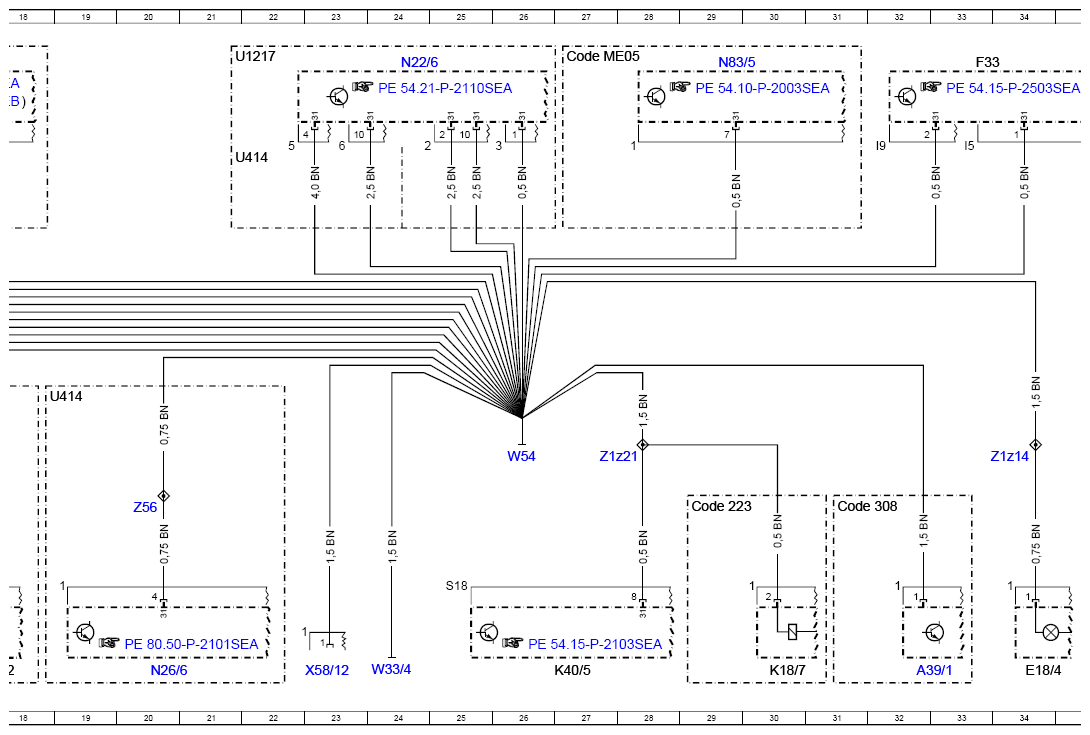

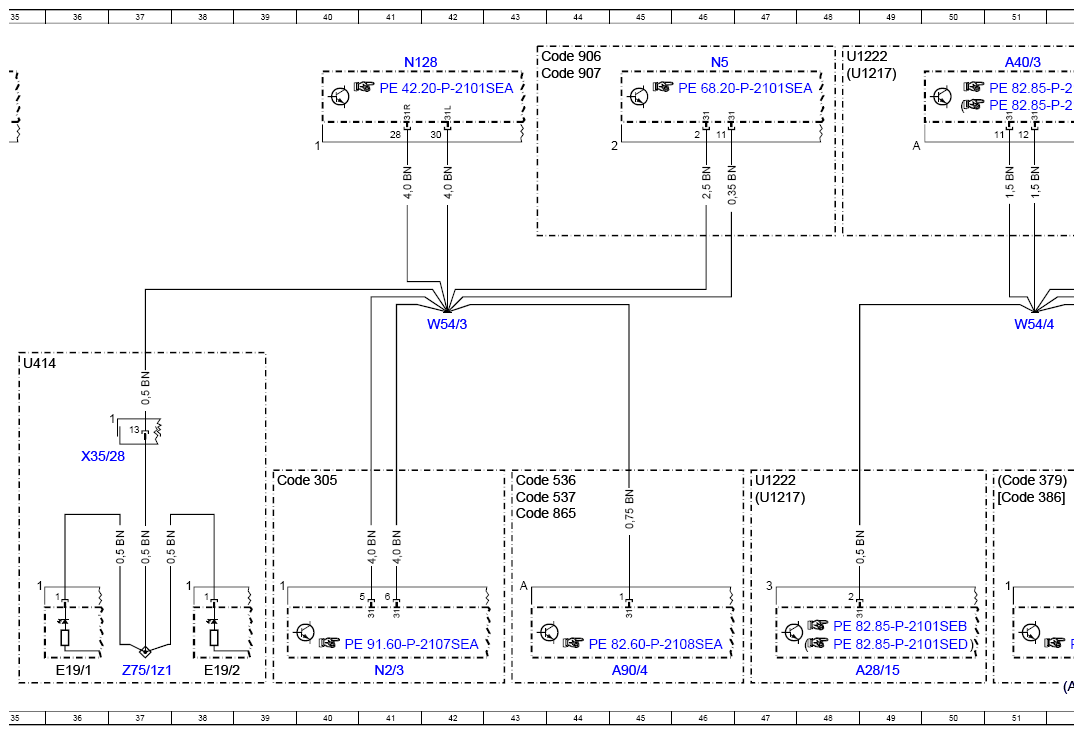

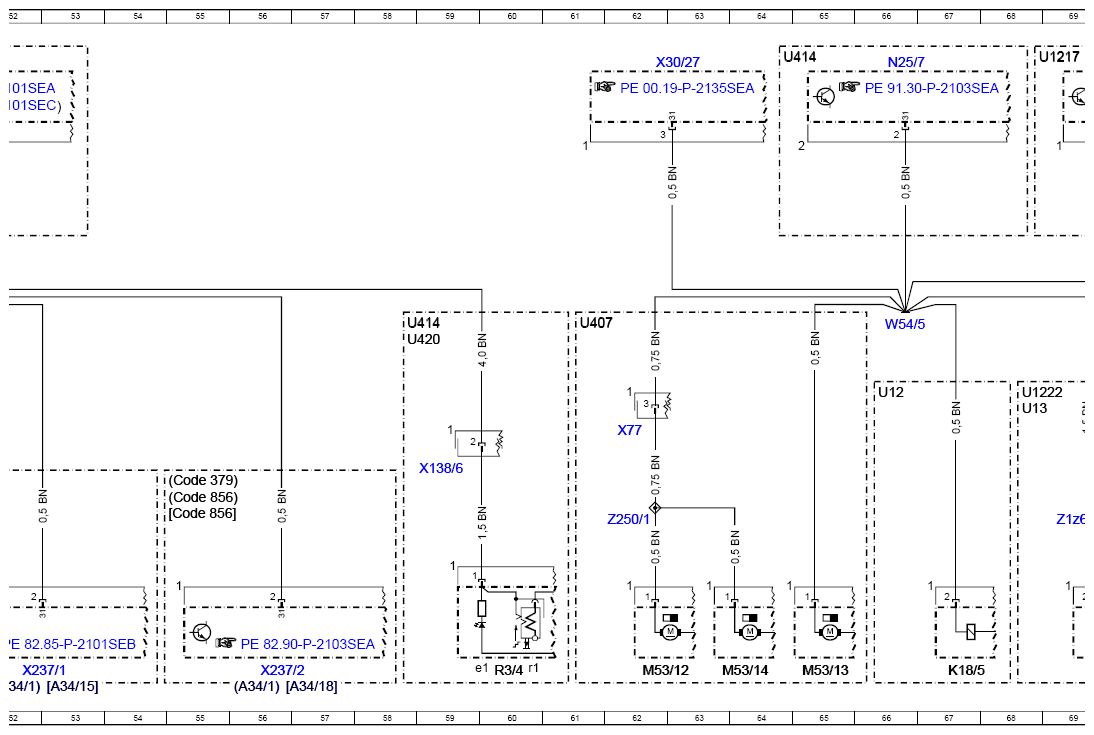

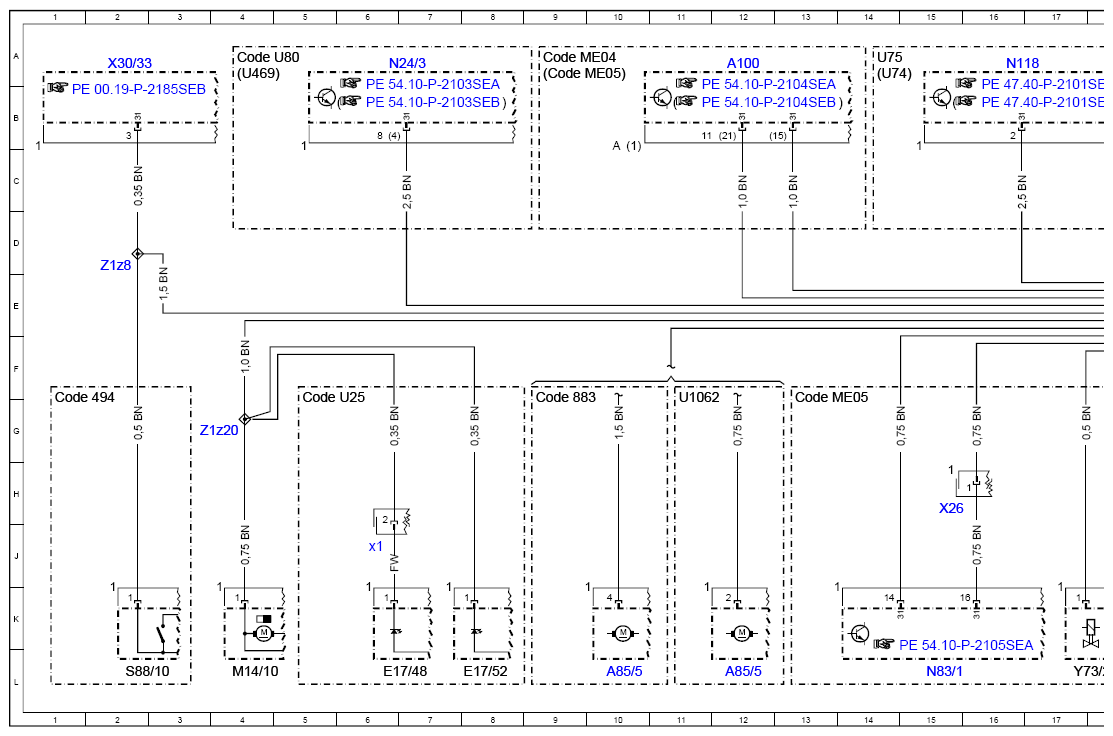

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97SEE
Model 217 up to model year 2018
W54, W54/3, W54/4, W54/5
Model 222 up to model year 2018
W54, W54/3, W54/4, W54/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| A100 | High-voltage battery module | 12A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 49L |
| A34/1 | Telephone module with Bluetooth® (SAP profile) | 52L |
| A34/1 | Telephone module with Bluetooth® (SAP profile) | 56L |
| A34/15 | Mobile phone holder | 53L |
| A34/18 | Rear mobile phone cradle | 57L |
| A39/1 | Rear backrest refrigerator box | 32L |
| A40/3 | COMAND control unit | 51A |
| A85/5 | Trunk lid lock | 10L |
| A85/5 | Trunk lid lock | 12L |
| A90/4 | Tuner unit | 45L |
| Code 223 | Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints | 29H |
| Code 305 | Rear PRE-SAFE | 39H |
| Code 308 | Refrigerator compartment in center rear backrest | 31H |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 51H |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 55H |
| Code 386 | Comfort telephony | 51H |
| Code 494 | USA version | 1G |
| Code 536 | SIRIUS satellite radio | 43H |
| Code 537 | Digital radio | 43H |
| Code 856 | Business telephony in rear passenger compartment | 55H |
| Code 856 | Business telephony in rear passenger compartment | 55H |
| Code 865 | TV tuner | 43H |
| Code 883 | Power closing | 9G |
| Code 906 | Front armrest heater | 43A |
| Code 907 | Rear armrest heater | 43A |
| Code ME04 | Mild hybrid drive | 9A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 13G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 9A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 27A |
| Code U25 | Illuminated door sills | 5G |
| Code U80 | 115 V socket | 4A |
| E17/48 | Right front illuminated door sill molding | 6L |
| E17/48x1 | Right front illuminated door sill molding electrical connector | 6J |
| E17/52 | Right rear illuminated door sill molding | 8L |
| E18/4 | Right luggage compartment lamp | 34L |
| E19/1 | Left license plate lamp | 36L |
| E19/2 | Right license plate lamp | 38L |
| F33 | Rear prefuse box | 33A |
| K18/4 | Seat belt comfort-fit function solenoid, driver seat | 69L |
| K18/5 | Seat belt comfort-fit function solenoid, front passenger seat | 67L |
| K18/7 | Seat belt comfort-fit function solenoid, right rear seat | 30L |
| K40/5 | Rear fuse and relay module | 27L |
| M14/10 | Tank cap central locking actuator | 4L |
| M53/12 | Left rear passenger compartment head restraint release actuator | 62L |
| M53/13 | Center rear passenger compartment head restraint release actuator | 65L |
| M53/14 | Right rear passenger compartment head restraint release actuator | 64L |
| N118 | Fuel pump control unit | 16A |
| N118 | Fuel pump control unit | 70A |
| N128 | Electric parking brake control unit | 41A |
| N2/3 | Active belt buckle control unit | 41L |
| N22/6 | Rear control unit | 24A |
| N24/3 | DC/AC converter control unit | 7A |
| N25/7 | AIRSCARF control unit | 66A |
| N26/6 | ATA [EDW]/towing sensor/interior motion sensor control unit | 20L |
| N5 | Armrest heater control unit | 46A |
| N83/1 | DC/DC converter control unit | 15L |
| N83/5 | Charger | 29A |
| R3/4 | Cigarette lighter with rear center console illumination | 60L |
| R3/4e1 | Illumination | 59L |
| R3/4r1 | Heating element | 60L |
| S88/10 | Trunk lid emergency opening switch | 2L |
| U1062 | Valid without code (883) Power closing for doors and trunk lid | 11G |
| U12 | Valid for left-hand drive vehicles | 66F |
| U1217 | Valid for model series 217 | 21A |
| U1217 | Valid for model series 217 | 47H |
| U1217 | Valid for model series 217 | 48A |
| U1217 | Valid for model series 217 | 68A |
| U1222 | Valid for model series 222 | 47H |
| U1222 | Valid for model series 222 | 68F |
| U1222 | Valid for model series 222 | 48A |
| U13 | Valid for right-hand drive vehicles | 68G |
| U407 | Valid without code (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints | 61E |
| U414 | Valid for model 217.4 | 18G |
| U414 | Valid for model 217.4 | 21C |
| U414 | Valid for model 217.4 | 35F |
| U414 | Valid for model 217.4 | 58E |
| U414 | Valid for model 217.4 | 64A |
| U420 | Valid for rear passenger compartment center console cigarette lighter | 58F |
| U469 | Valid for 230V socket | 4A |
| U74 | Valid for diesel engines | 14A |
| U75 | Valid for gasoline engines | 14A |
| W33/4 | Fuel tank filler neck ground point | 24L |
| W54 | Right rear wheel well ground point | 26H |
| W54/3 | Left rear wheel well ground point | 42E |
| W54/4 | Left rear wheel well ground point (vehicle interior) | 51E |
| W54/5 | Right rear wheel well ground point | 66E |
| X138/6 | Rear center console electrical connector | 59H |
| X237/1 | Mobile phone contact plate | 52L |
| X237/2 | Rear mobile phone contact plate | 56L |
| X26 | Interior and engine wiring harness electrical connector | 15H |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 63A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 2A |
| X35/28 | Rear bumper parking system electrical connector | 36G |
| X58/12 | Luggage compartment socket | 23L |
| X77 | Rear backrest head restraint release electrical connector | 62G |
| Y73/2 | Low-temperature circuit switchover valve 2 | 17L |
| Z1z14 | Circuit 31 connector sleeve | 34G |
| Z1z20 | Circuit 31 connector sleeve | 4G |
| Z1z21 | Circuit 31 connector sleeve | 28G |
| Z1z6 | Circuit 31 connector sleeve | 69J |
| Z1z8 | Circuit 31 connector sleeve | 2D |
| Z250/1 | Head restraint adjustment motor circuit 31 connector sleeve | 62J |
| Z56 | Interior protection sensors ground line connector sleeve | 20H |
| Z75/1z1 | License plate lamp connector sleeve | 37L |
