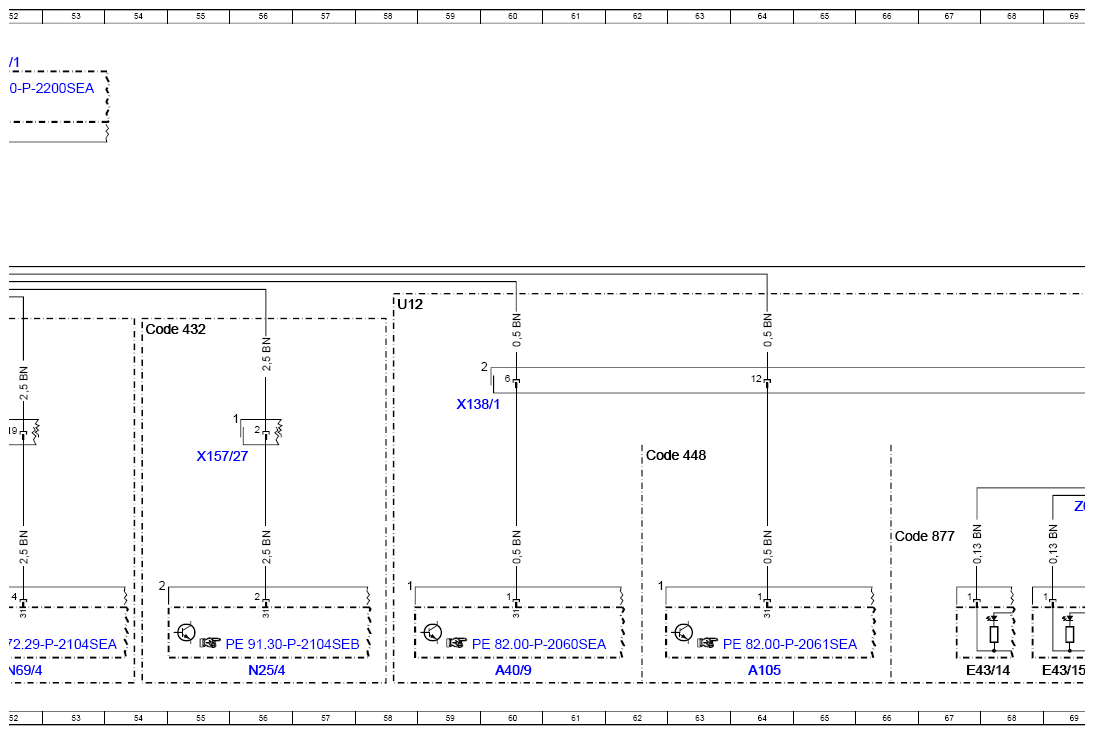

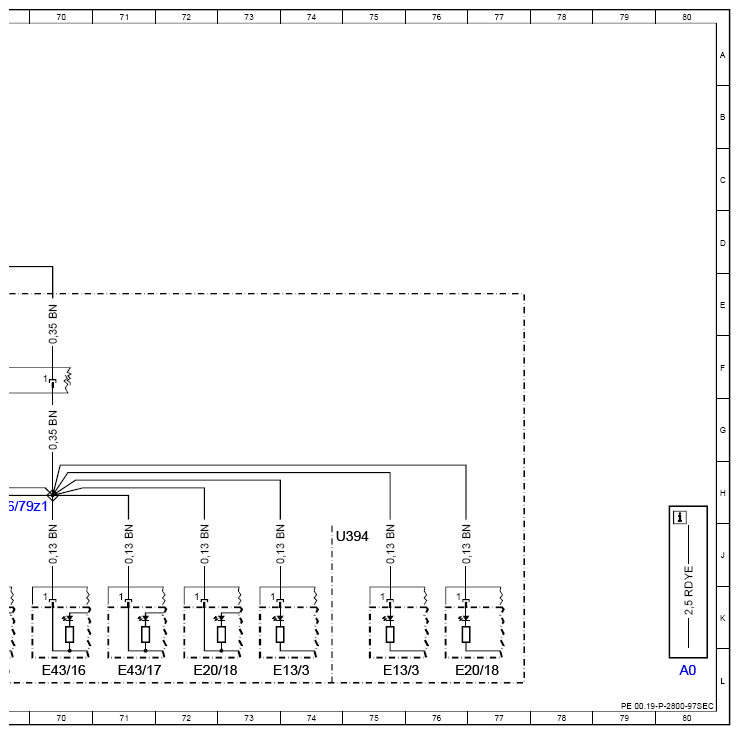

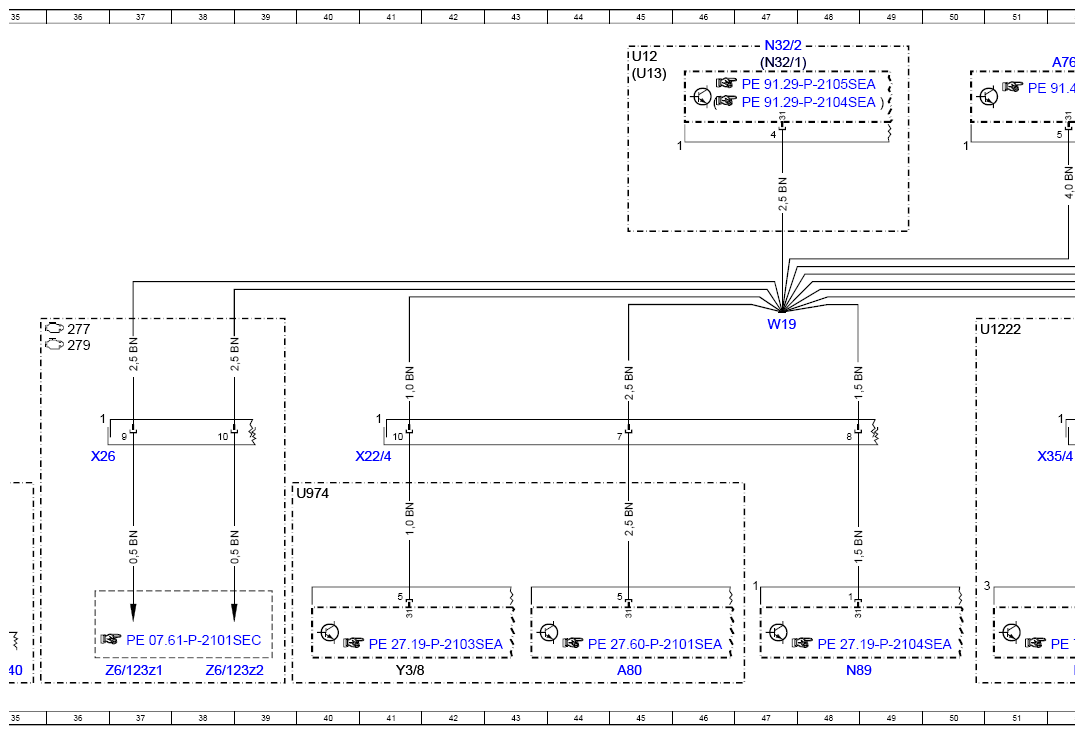

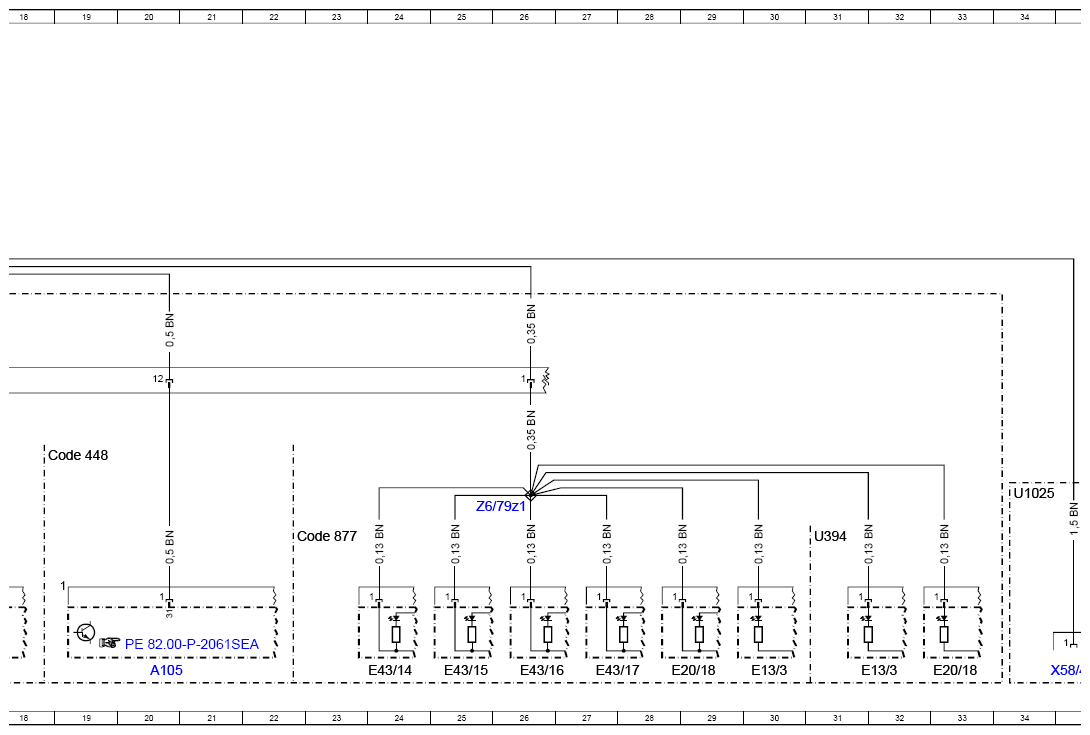

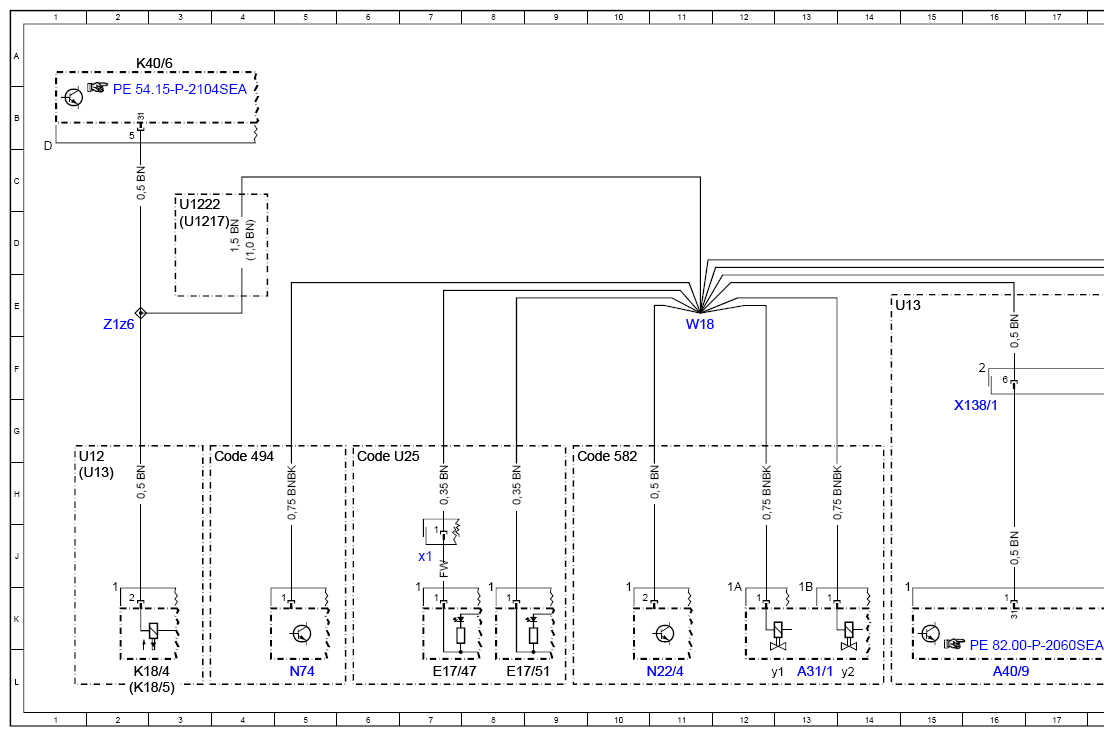

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97SEC
Model 217 up to model year 2018
W18, W19
Model 222 up to model year 2018
W18, W19
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A105 | Touchpad | 20L |
| A105 | Touchpad | 64L |
| A31/1 | Rear heating system valve unit | 13L |
| A31/1y1 | Left duo valve | 12L |
| A31/1y2 | Right duo valve | 14L |
| A40/9 | Audio/COMAND control panel | 16L |
| A40/9 | Audio/COMAND control panel | 60L |
| A76/1 | Right front reversible emergency tensioning retractor | 52A |
| A80 | Intelligent servo module for DIRECT SELECT | 45L |
| Code 432 | Left and right front dynamic multicontour seat | 54E |
| Code 448 | Touchpad | 18G |
| Code 448 | Touchpad | 62G |
| Code 494 | USA version | 4G |
| Code 582 | Air conditioning in rear | 9G |
| Code 877 | Ambiance illumination | 22J |
| Code 877 | Ambiance illumination | 66J |
| Code U25 | Illuminated door sills | 6G |
| E13/3 | Stowage compartment illumination | 32L |
| E13/3 | Stowage compartment illumination | 30L |
| E13/3 | Stowage compartment illumination | 75L |
| E13/3 | Stowage compartment illumination | 74L |
| E17/47 | Left front illuminated door sill molding | 7L |
| E17/47x1 | Left front illuminated door sill molding electrical connector | 7J |
| E17/51 | Left rear illuminated door sill molding | 8L |
| E20/18 | Front center console cup holder ambiance illumination | 33L |
| E20/18 | Front center console cup holder ambiance illumination | 29L |
| E20/18 | Front center console cup holder ambiance illumination | 72L |
| E20/18 | Front center console cup holder ambiance illumination | 76L |
| E43/14 | Left front center console ambiance illumination | 24L |
| E43/14 | Left front center console ambiance illumination | 67L |
| E43/15 | Left rear center console ambiance illumination | 25L |
| E43/15 | Left rear center console ambiance illumination | 69L |
| E43/16 | Right front center console ambiance illumination | 26L |
| E43/16 | Right front center console ambiance illumination | 70L |
| E43/17 | Right rear center console ambiance illumination | 27L |
| E43/17 | Right rear center console ambiance illumination | 71L |
| K18/4 | Seat belt comfort-fit function solenoid, driver seat | 2L |
| K18/5 | Seat belt comfort-fit function solenoid, front passenger seat | 2L |
| K40/6 | Left fuse and relay module | 2A |
| N22/4 | Rear air conditioning operating unit | 11L |
| N25/4 | Front passenger seat heater control unit | 56L |
| N32/1 | Driver seat control unit | 47A |
| N32/2 | Front passenger seat control unit | 47A |
| N69/4 | Right rear door control unit | 52L |
| N74 | Soot particulate sensor control unit | 5L |
| N89 | Transmission oil auxiliary oil pump control unit | 48L |
| U1025 | Valid for 12 V socket | 34H |
| U12 | Valid for left-hand drive vehicles | 1G |
| U12 | Valid for left-hand drive vehicles | 58E |
| U12 | Valid for left-hand drive vehicles | 45A |
| U1217 | Valid for model series 217 | 3D |
| U1222 | Valid for model series 222 | 3C |
| U1222 | Valid for model series 222 | 50E |
| U13 | Valid for right-hand drive vehicles | 1H |
| U13 | Valid for right-hand drive vehicles | 14E |
| U13 | Valid for right-hand drive vehicles | 45A |
| U394 | Valid without code 877 Ambiance illumination | 31J |
| U394 | Valid without code 877 Ambiance illumination | 74J |
| U974 | Not valid for hybrid drive | 39H |
| W18 | Left front seat crossmember ground point | 11E |
| W19 | Right front seat crossmember ground point | 47E |
| X138/1 | Front center console electrical connector | 16G |
| X138/1 | Front center console electrical connector | 59G |
| X157/27 | Front passenger seat heater control unit ambiance illumination electrical connector | 55H |
| X22/4 | Transmission/frame floor assembly connecting point | 41H |
| X26 | Interior and engine wiring harness electrical connector | 36H |
| X35/4 | Right rear door electrical connector | 52H |
| X58/40 | 12V socket | 35L |
| Y3/8 | Fully integrated transmission control control unit | 41L |
| Z1z6 | Circuit 31 connector sleeve | 2E |
| Z6/123z1 | Left cylinder bank ignition coil ground line connector sleeve 2 | 37L |
| Z6/123z2 | Right cylinder bank ignition coil ground line connector sleeve 2 | 38L |
| Z6/79z1 | Circuit 31 connector sleeve | 26H |
| Z6/79z1 | Circuit 31 connector sleeve | 69H |
