Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97SEA
Model 217 up to model year 2018
W2, W3_2, W6, W7, W9
Model 222 up to model year 2018
W2, W3_2, W6, W7, W9
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 113L |
| A9/1 | AIRMATIC compressor | 18L |
| A9/1m1 | Electric motor | 19L |

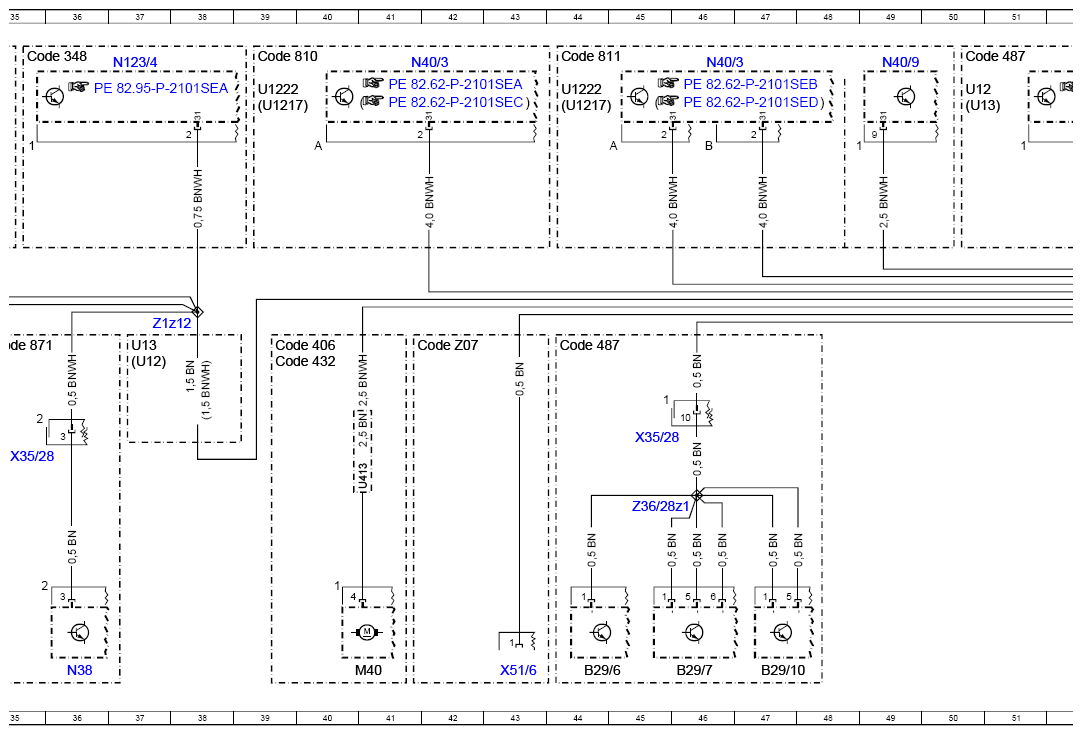

| B29/10 | Center rear bumper radar sensor | 47L |
| B29/6 | Left rear bumper radar sensor | 44L |
| B29/7 | Right rear bumper radar sensor | 46L |
| Code 209 | Temperature-controlled cup holder | 84F |
| Code 223 | Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints | 59A |
| Code 228 | Stationary heater | 100F |
| Code 233 | DISTRONIC PLUS | 56H |
| Code 235 | Active Park Assist | 55A |
| Code 348 | Emergency call/assistance system | 35A |
| Code 406 | Multicontour seats in rear | 39F |
| Code 432 | Left and right front dynamic multicontour seat | 39F |
| Code 475 | Tire pressure monitor | 71A |
| Code 487 | MAGIC BODY CONTROL | 44F |
| Code 487 | MAGIC BODY CONTROL | 50A |
| Code 610 | Night View Assist | 5H |
| Code 621 | Intelligent Light System (left-hand traffic) | 5A |
| Code 621 | Intelligent Light System (left-hand traffic) | 15A |
| Code 622 | Intelligent Light System (right-hand traffic) | 5A |
| Code 622 | Intelligent Light System (right-hand traffic) | 15A |
| Code 631 | Static LED headlamp, left-hand traffic | 10A |
| Code 631 | Static LED headlamp, left-hand traffic | 20A |
| Code 632 | Static LED headlamp, right-hand traffic | 10A |
| Code 632 | Static LED headlamp, right-hand traffic | 20A |
| Code 810 | Sound system | 39A |
| Code 811 | Advanced sound system | 44A |
| Code 871 | Sensor system for trunk lid opening/closing | 35F |
| Code 872 | Left and right rear seat heaters | 67A |
| Code 877 | Ambiance illumination | 81F |
| Code 877 | Ambiance illumination | 73F |
| Code B03 | ECO start/stop function | 16H |
| Code B54 | Live Traffic Information | 31H |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 10H |
| Code P43 | Rear seating comfort package | 60F |
| Code Z07 | Top protection | 41F |
| E1 | Left front lamp unit | 18A |
| E1 | Left front lamp unit | 23A |
| E2 | Right front lamp unit | 8A |
| E2 | Right front lamp unit | 13A |

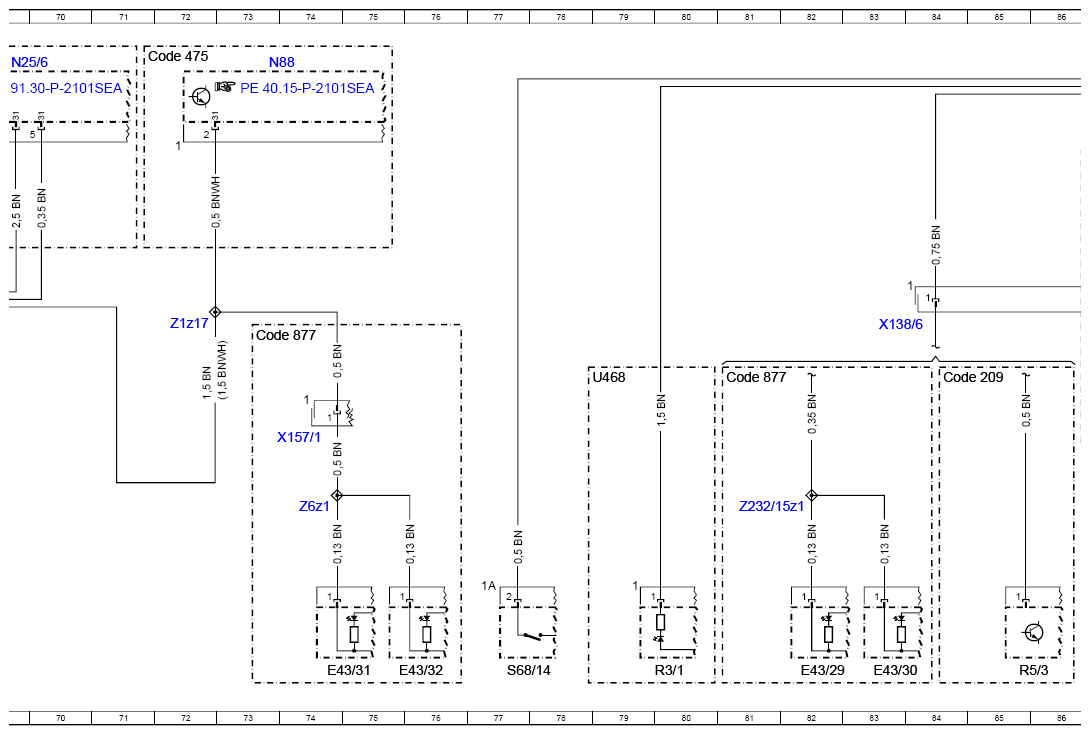

| E43/29 | Left rear center console ambiance illumination | 82L |
| E43/30 | Right rear center console ambiance illumination | 83L |
| E43/31 | Left rear panel ambiance illumination | 74L |
| E43/32 | Right rear panel ambiance illumination | 76L |
| G1/13 | ECO start/stop function additional battery | 17L |
| H2 | Left fanfare horn | 21L |
| H2/1 | Right fanfare horn | 22L |
| K18/6 | Seat belt comfort-fit function solenoid, left rear seat | 57L |
| K40/8 | Engine fuse and relay module | 3A |
| K40/8 | Engine fuse and relay module | 29A |
| K40/8kK | Oil pump relay | 2A |
| K40/8kN | Circuit 87M relay | 28A |
| M13/5 | Coolant circulation pump | 8L |
| M4/7 | Fan motor | 25L |
| M4/7 | Fan motor | 23L |
| M40 | Multicontour seat pneumatic pump | 41L |
| M43/6 | Low temperature circuit circulation pump 1 | 9L |
| M43/7 | Low temperature circuit circulation pump 2 | 11L |
| M5/2 | Night & Day View Assist long-range camera washer fluid pump | 6L |
| M6/1 | Wiper motor | 27L |
| M87 | Radiator shutters actuator motor | 15L |
| N112/2 | Telematics services communication module | 32L |
| N123/4 | Emergency call system control unit | 37A |
| N25/11 | Left rear seat heater control unit | 62L |
| N25/12 | Right rear seat heater control unit | 66L |
| N25/6 | Rear seat heaters control unit | 69A |
| N25/7 | AIRSCARF control unit | 98L |
| N32/5 | Right rear seat control unit | 65A |
| N32/6 | Left rear seat control unit | 62A |
| N38 | Rear switching module | 36L |
| N40/3 | Sound system amplifier control unit | 41A |
| N40/3 | Sound system amplifier control unit | 46A |
| N40/9 | Bass speaker amplifier | 49A |
| N53 | MAGIC SKY CONTROL control unit | 105L |
| N62 | Parking system control unit | 57A |
| N62/1 | Radar sensors control unit | 53A |
| N88 | Tire pressure monitor control unit | 73A |
| R2/10 | Wiper park heater | 29L |
| R22/5 | Left front seat AIRSCARF heating element | 93L |
| R22/6 | Right front seat AIRSCARF heating element | 95L |
| R3/1 | Cigarette lighter with ashtray illumination, rear | 80L |
| R3/4 | Cigarette lighter with rear center console illumination | 88L |
| R3/4e1 | Illumination | 87L |
| R3/4r1 | Heating element | 88L |
| R5/3 | Rear cup holder | 85L |
| S10/4 | Right rear brake wear sensor | 108L |
| S10/4x1 | Right rear brake wear sensor electrical connector | 107K |
| S68/14 | Center rear seat belt buckle switch | 77L |
| U1025 | Valid for 12 V socket | 89F |
| U12 | Valid for left-hand drive vehicles | 37F |
| U12 | Valid for left-hand drive vehicles | 31A |
| U12 | Valid for left-hand drive vehicles | 50B |
| U1217 | Valid for model series 217 | 39B |
| U1217 | Valid for model series 217 | 44B |
| U1217 | Valid for model series 217 | 92F |
| U1217 | Valid for model series 217 | 108C |
| U1222 | Valid for model series 222 | 39B |
| U1222 | Valid for model series 222 | 44B |
| U1222 | Valid for model series 222 | 86C |
| U1222 | Valid for model series 222 | 106C |
| U13 | Valid for right-hand drive vehicles | 37F |
| U13 | Valid for right-hand drive vehicles | 31A |
| U13 | Valid for right-hand drive vehicles | 50B |
| U413 | Valid for model 217.3 | 41H |
| U413 | Valid for model 217.3 | 96G |
| U413 | Valid for model 217.3 | 86C |
| U468 | Valid for cigarette lighter with ashtray illumination, rear | 78F |
| U709 | Valid for wiper park position heater | 28F |
| U960 | Valid for radiator shutters | 14H |

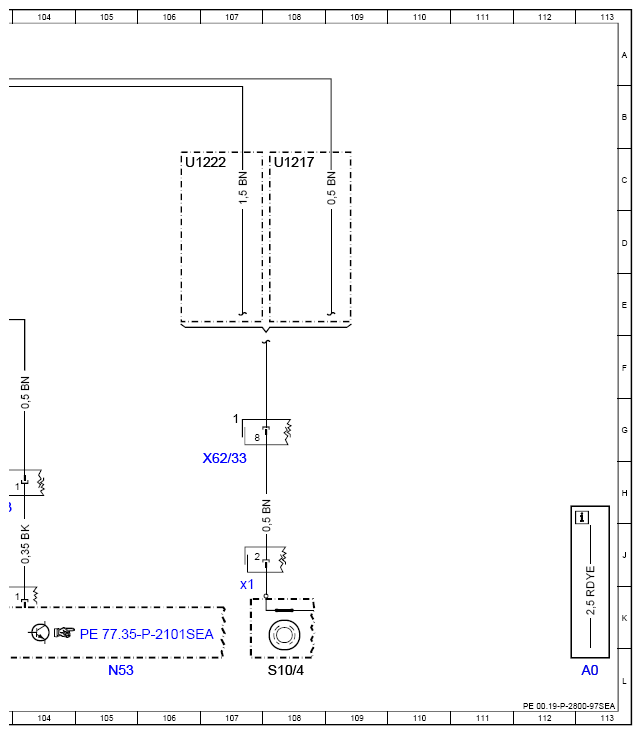

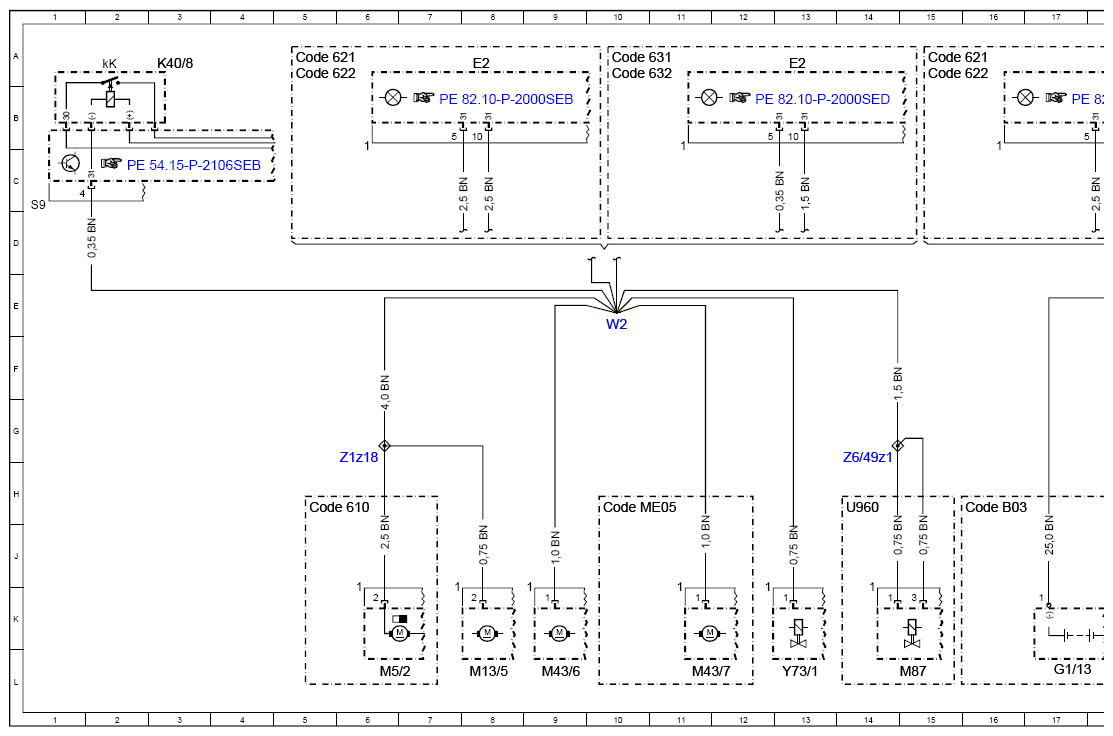

| W2 | Right front ground point (at lamp unit) | 10E |

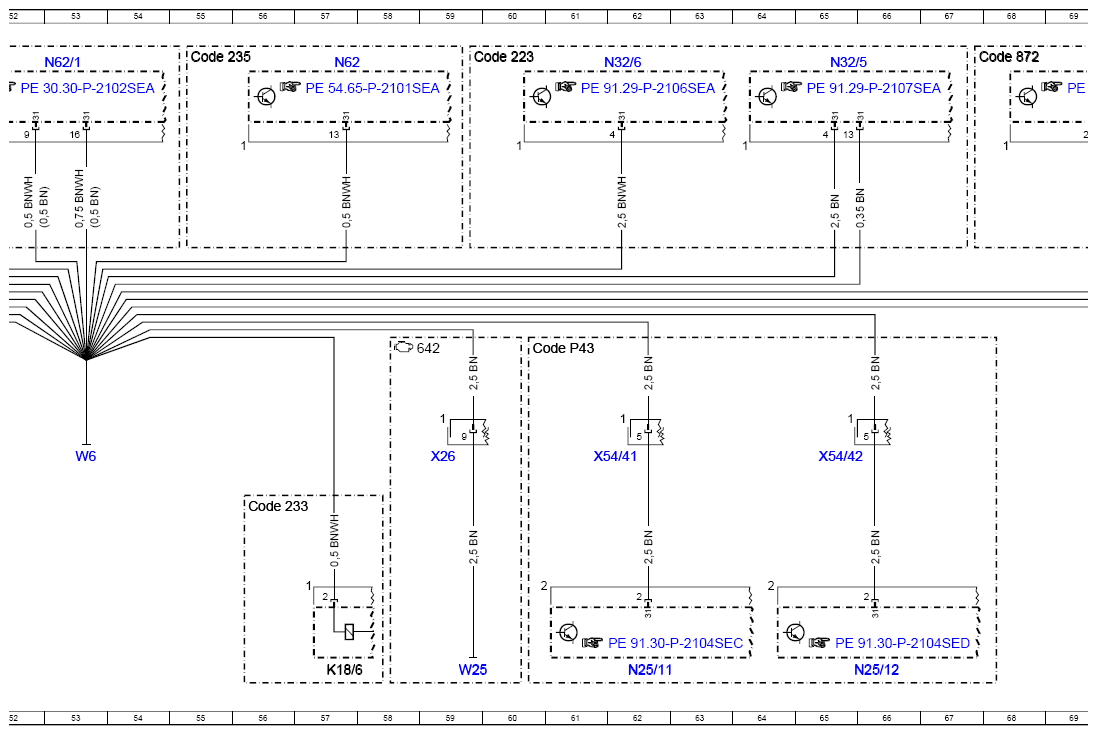

| W25 | ME/CDI control unit ground point | 59L |
| W3/2 | Left front wheel arch ground point | 28E |

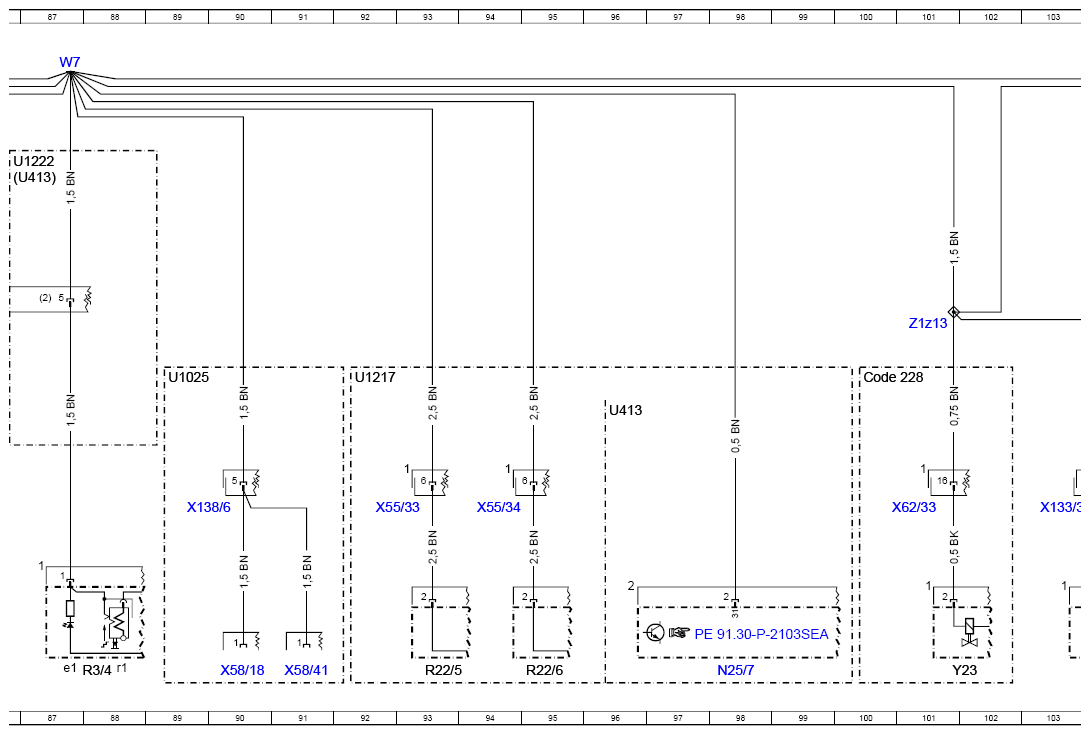

| W6 | Left wheel arch trunk ground point | 53H |
| W7 | Right wheelhouse trunk ground point | 87A |

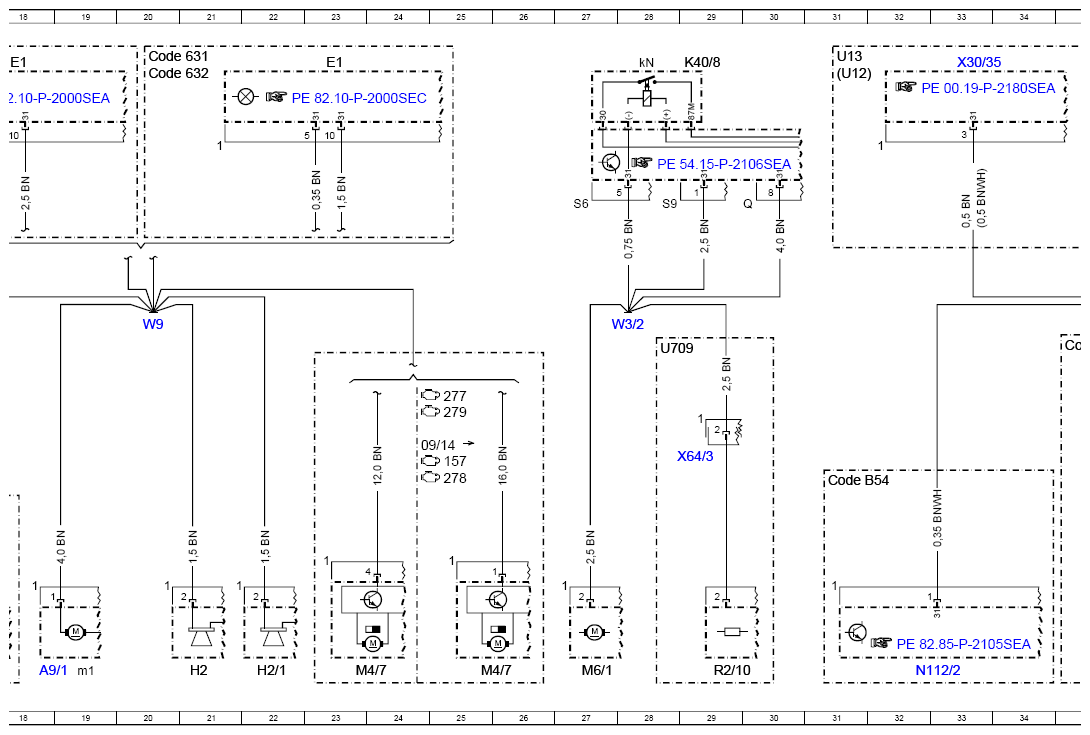

| W9 | Left front ground point (at lamp unit) | 20E |
| X133/3 | MAGIC SKY CONTROL electrical connector | 103H |
| X138/6 | Rear center console electrical connector | 90H |
| X138/6 | Rear center console electrical connector | 83E |
| X157/1 | Rear panel ambiance illumination electrical connector | 74G |
| X26 | Interior and engine wiring harness electrical connector | 59H |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 33A |
| X35/28 | Rear bumper parking system electrical connector | 35H |
| X35/28 | Rear bumper parking system electrical connector | 45G |
| X51/6 | Wildcard (customer option) electrical connector | 43L |
| X54/41 | Frame floor assembly/left rear seat backrest electrical connector | 62H |
| X54/42 | Frame floor assembly/right rear seat backrest electrical connector | 65H |
| X55/33 | Left AIRSCARF electrical connector | 93H |
| X55/34 | Right AIRSCARF electrical connector | 94H |
| X58/18 | Right rear center console 12V socket | 90L |
| X58/41 | Left rear center console 12V socket | 91L |
| X62/33 | Rear axle electrical connector, right distributor | 101H |
| X62/33 | Rear axle electrical connector, right distributor | 107H |
| X64/3 | Wiper park position heater electrical connector | 29H |
| Y23 | Stationary heater fuel pump | 101L |
| Y73/1 | Low-temperature circuit switchover valve | 13L |
| Z1z12 | Circuit 31 connector sleeve | 38E |
| Z1z13 | Circuit 31 connector sleeve | 101E |
| Z1z17 | Circuit 31 connector sleeve | 72E |
| Z1z18 | Circuit 31 connector sleeve | 6G |
| Z232/15z1 | Circuit 31 connector sleeve | 81H |
| Z36/28z1 | Rear radar sensors ground line connector sleeve | 45H |
| Z6/49z1 | Connector sleeve, ground point at front right (for lamp unit) | 14G |
| Z6z1 | Circuit 31 connector sleeve | 74H |
