Tightening Procedure For Charge Air Distributor - AR09.41-P-8683-01MNE
Engine 177 in model 167
Engine 177 in model 213, 217, 222
Engine 177 in model 463 as of model year 2019
CHARGE AIR LINE/CHARGE AIR COOLING
| |
Number |
Designation |
Engine 177 |
| |
BA09.41-P-1004-01X |
Bolt, charge air distributor to cylinder head |
Nm |
13 |

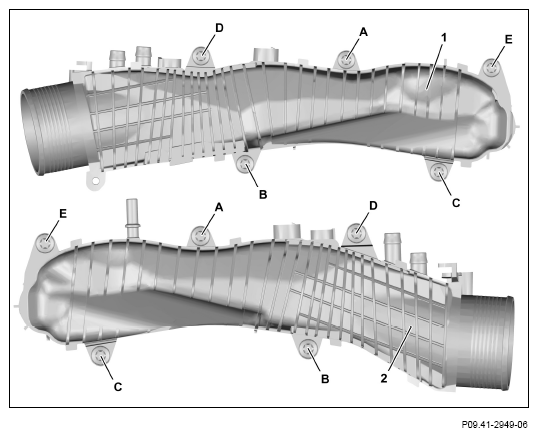

- Lightly tighten screws (A to E) of the left and right charge air distributor (1, 2) by hand in the alphabetic sequence.
- Tighten screw/bolts (A to E) of the left and right charge air distributor (1, 2) in the alphabetic sequence
 Courtesy of MERCEDES-BENZ USA
|
