Remove/install low-temperature circuit cooler - AR09.41-P-6936MNL
Engine 176 in model 217, 222 Engine 177 in model 217, 222
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Remove/install | |||
| 1 | Remove cooler (2) | Engine 177 in model 217, 222 | AR20.20-P-3865MNM |
| Engine 176 in model 217, 222 | AR20.20-P-3865MNL | ||

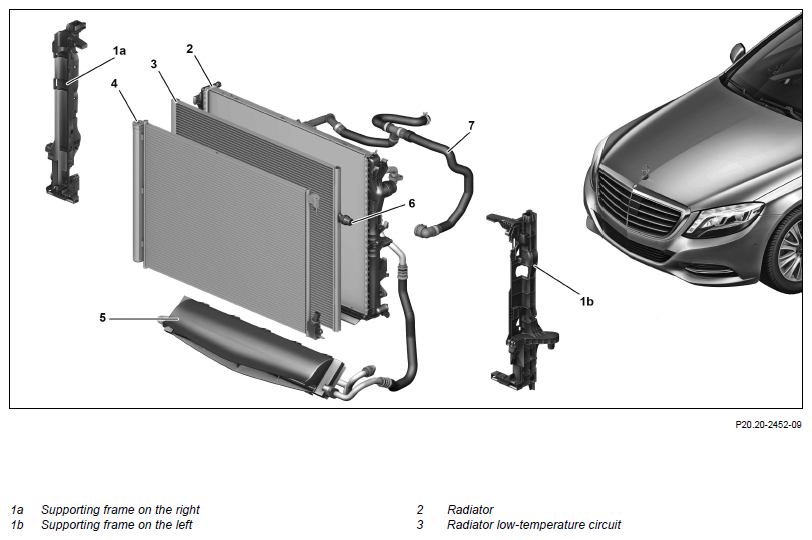

| 2 | Remove supporting frames (1a, 1b) from radiator package | ||
| 3 | Remove low-temperature circuit cooler (3) | ||
| 4 | Install in the reverse order |
