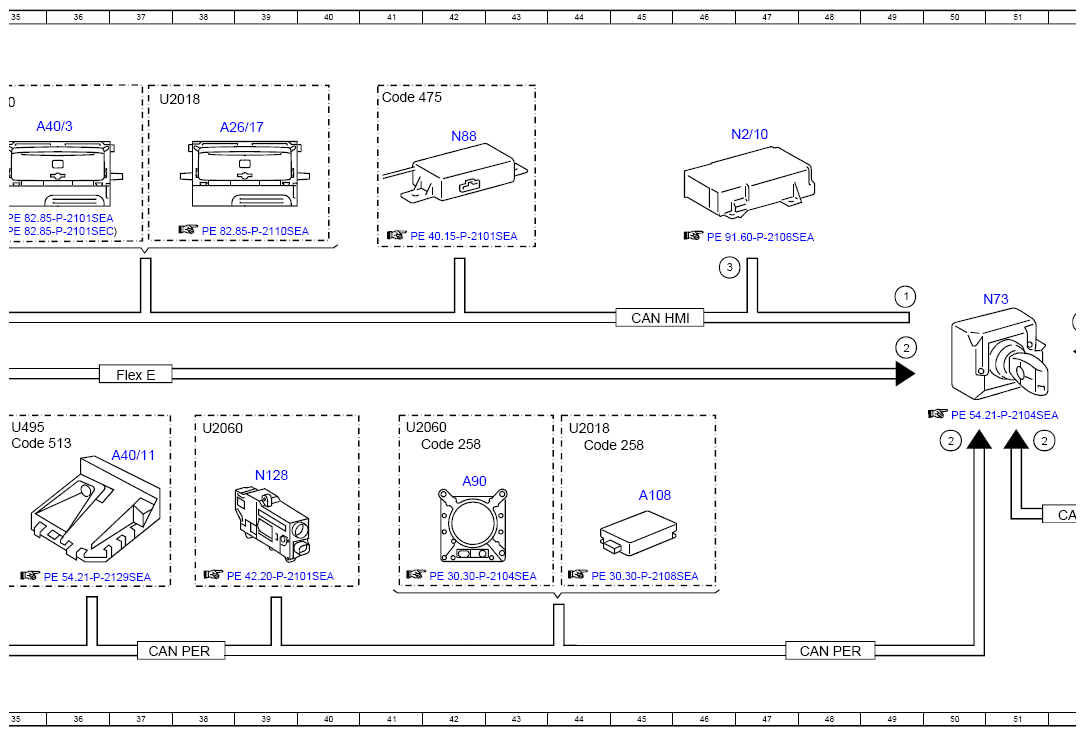

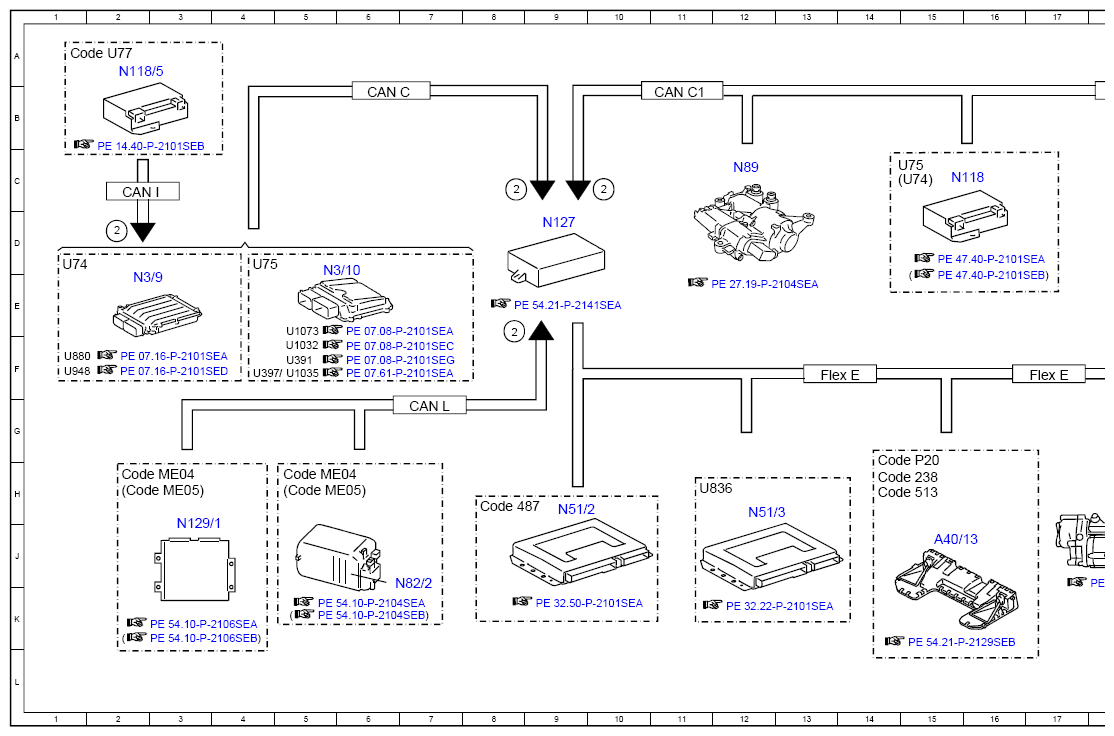

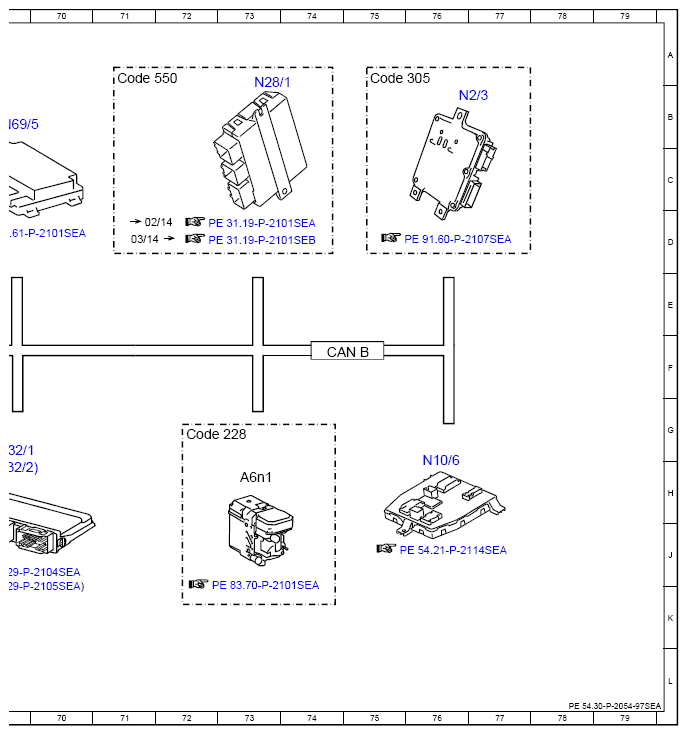

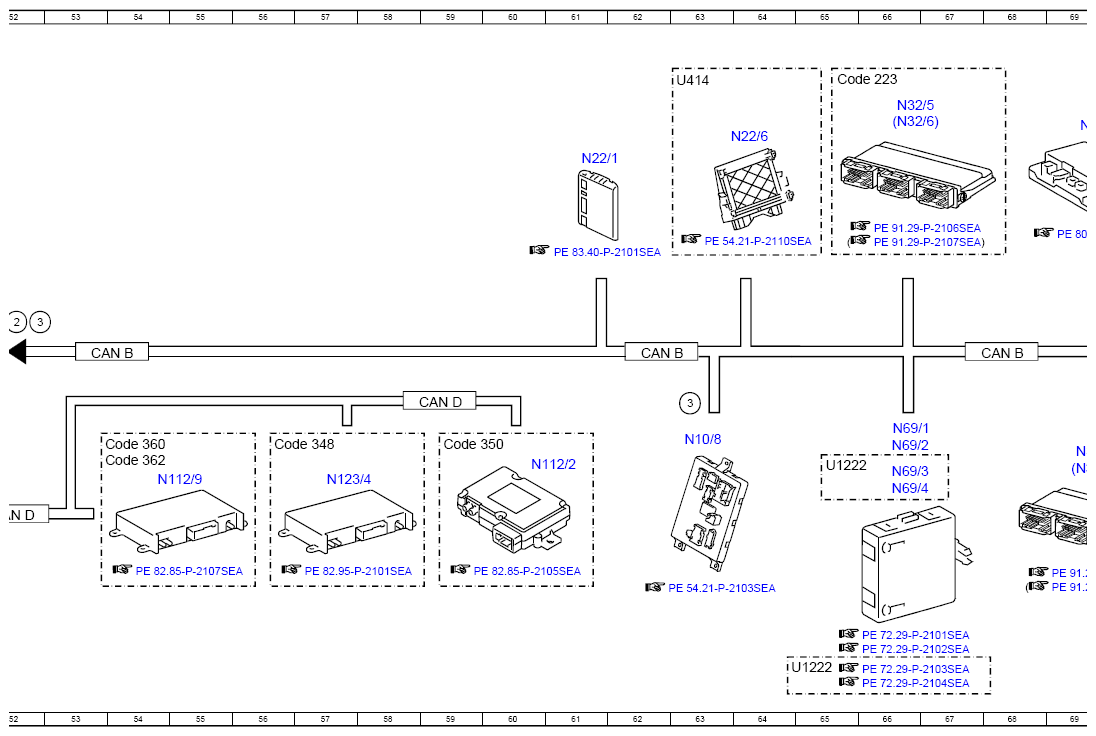

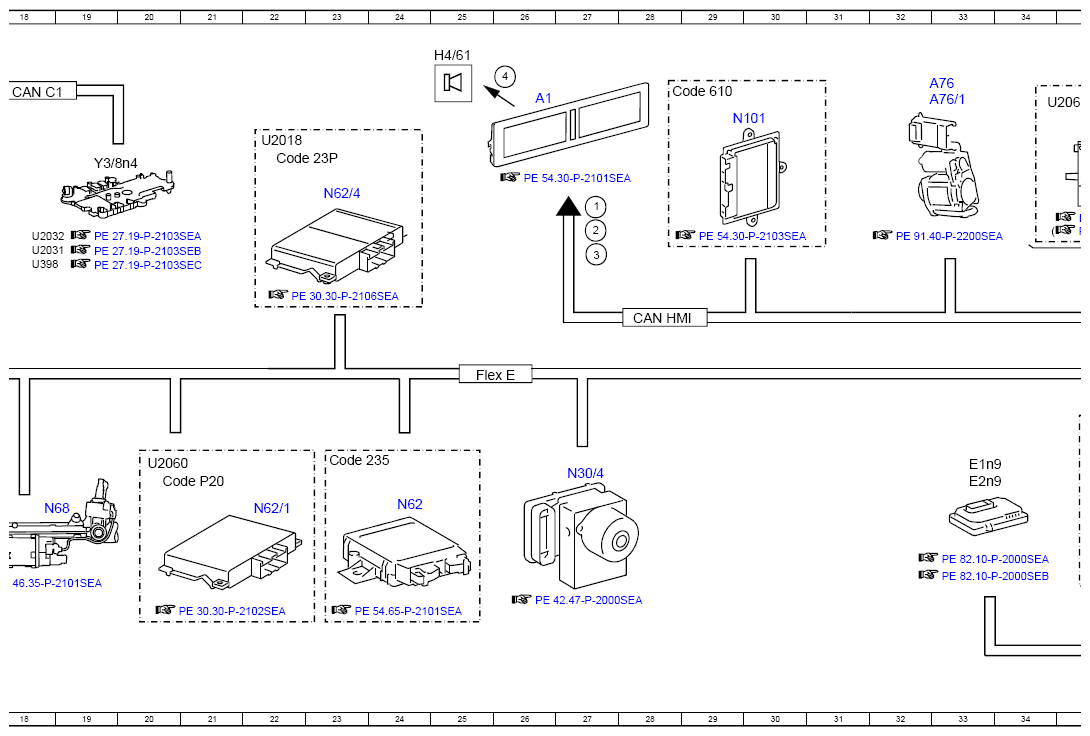

Electrical Function Schematic Of Instrument Cluster, Indicator/Warning Message - PE54.30-P-2054-97SEA
Model 217, 222
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 27C |
| 1 | Circuit 15, status | 49E |
| 2 | Instrument cluster, message | 50G |
| 2 | Instrument cluster, message | 51G |
| 2 | Instrument cluster, message | 8E |
| 2 | Instrument cluster, message | 8C |
| 2 | Instrument cluster, message | 10C |
| 2 | Instrument cluster, message | 27D |
| 2 | Instrument cluster, message | 49F |
| 2 | Instrument cluster, message | 52E |
| 2 | Instrument cluster, message | 2D |
| 3 | Seat belt buckle switch, status | 27D |
| 3 | Seat belt buckle switch, status | 63G |
| 3 | Seat belt buckle switch, status | 46D |
| 3 | Seat belt buckle switch, status | 52E |
| 4 | Speaker, actuation | 26A |
| A1 | Instrument cluster | 26B |
| A108 | Active Brake Assist controller unit | 45H |
| A26/17 | Head unit | 38B |
| A40/11 | Mono multifunction camera | 37G |
| A40/13 | Stereo multifunction camera | 15J |
| A40/3 | COMAND control unit | 35B |
| A6n1 | Stationary heater control unit | 73H |
| A76 | Left front reversible emergency tensioning retractor | 32B |
| A76/1 | Right front reversible emergency tensioning retractor | 32B |
| A90 | COLLISION PREVENTION ASSIST controller unit | 42H |
| CAN B | Interior CAN | 62F |
| CAN B | Interior CAN | 53F |
| CAN B | Interior CAN | 74F |
| CAN B | Interior CAN | 68F |
| CAN C | Engine CAN | 6B |
| CAN C1 | Drivetrain CAN | 18B |
| CAN C1 | Drivetrain CAN | 11B |
| CAN D | Diagnostic CAN | 52H |
| CAN D | Diagnostic CAN | 59G |
| CAN HMI | User interface CAN | 28E |
| CAN HMI | User interface CAN | 45E |
| CAN I | Drivetrain sensor CAN | 2C |
| CAN L | Hybrid CAN | 7G |
| CAN PER | Peripherals CAN | 37L |
| CAN PER | Peripherals CAN | 48L |
| Code 223 | Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints | 65A |
| Code 228 | Stationary heater | 72G |
| Code 235 | Active Park Assist | 23H |
| Code 238 | Active Lane Keeping Assist | 14H |
| Code 23P | Driver assistance package | 22C |
| Code 258 | COLLISION PREVENTION ASSIST | 41G |
| Code 258 | COLLISION PREVENTION ASSIST | 44G |
| Code 305 | Rear PRE-SAFE | 75A |
| Code 348 | Emergency call/assistance system | 56G |
| Code 350 | Ecall Europe emergency call system | 59G |
| Code 360 | HERMES UMTS | 53G |
| Code 362 | HERMES LTE | 53H |
| Code 475 | Tire pressure monitor | 41B |
| Code 487 | MAGIC BODY CONTROL | 8H |
| Code 513 | Traffic sign recognition | 14H |
| Code 513 | Traffic sign recognition | 35G |
| Code 550 | Trailer hitch | 71A |
| Code 610 | Night View Assist | 28B |
| Code ME04 | Mild hybrid drive | 5H |
| Code ME04 | Mild hybrid drive | 2H |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 5H |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 2H |
| Code P20 | Driver assistance package PLUS | 14H |
| Code P20 | Driver assistance package PLUS | 20H |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 1A |
| E1n9 | Left headlamp control unit | 33H |
| E2n9 | Right headlamp control unit | 33H |
| Flex E | Chassis FlexRay | 13F |
| Flex E | Chassis FlexRay | 17F |
| Flex E | Chassis FlexRay | 25F |
| Flex E | Chassis FlexRay | 37F |
| H4/61 | Instrument cluster speaker | 25A |
| N10/6 | Front SAM control unit | 76H |
| N10/8 | Rear SAM control unit | 63G |
| N101 | Night View Assist control unit | 29B |
| N112/2 | Telematics services communication module | 60H |
| N112/9 | HERMES control unit | 54H |
| N118 | Fuel pump control unit | 15C |
| N118/5 | AdBlue® control unit | 2A |
| N123/4 | Emergency call system control unit | 57H |
| N127 | Drivetrain control unit | 9D |
| N128 | Electric parking brake control unit | 39H |
| N129/1 | Power electronics control unit | 3J |
| N2/10 | Supplemental restraint system control unit | 46B |
| N2/3 | Active belt buckle control unit | 76B |
| N22/1 | Climate control control unit | 61C |
| N22/6 | Rear control unit | 64B |
| N28/1 | Trailer recognition control unit | 73B |
| N3/10 | ME-SFI [ME] control unit | 5E |
| N3/9 | CDI control unit | 2E |
| N30/4 | Electronic Stability Program control unit | 27H |
| N32/1 | Driver seat control unit | 69G |
| N32/2 | Front passenger seat control unit | 69H |
| N32/5 | Right rear seat control unit | 66B |
| N32/6 | Left rear seat control unit | 66B |
| N51/2 | Active Body Control control unit | 9H |
| N51/3 | AIRMATIC control unit | 12H |
| N62 | Parking system control unit | 24H |
| N62/1 | Radar sensors control unit | 22H |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 23C |
| N68 | Electrical power steering control unit | 18H |
| N69/1 | Left front door control unit | 66G |
| N69/2 | Right front door control unit | 66G |
| N69/3 | Left rear door control unit | 66H |
| N69/4 | Right rear door control unit | 66H |
| N69/5 | KEYLESS-GO control unit | 69B |
| N73 | Electronic ignition switch control unit | 50E |
| N82/2 | Battery management system control unit | 7K |
| N88 | Tire pressure monitor control unit | 42B |
| N89 | Transmission oil auxiliary oil pump control unit | 12C |
| U1032 | Valid for engine 278 and 157 | 5F |
| U1035 | Valid for gasoline engine 279 | 5F |
| U1073 | Valid for gasoline engine 276.9 | 5E |
| U1222 | Valid for model series 222 | 64L |
| U1222 | Valid for model series 222 | 65H |
| U2018 | Valid as of model year 2018 | 22B |
| U2018 | Valid as of model year 2018 | 37B |
| U2018 | Valid as of model year 2018 | 44G |
| U2031 | Valid for transmission 724 | 18D |
| U2032 | Valid for transmission 722 | 18D |
| U2060 | Valid up to model year 2018 | 20H |
| U2060 | Valid up to model year 2018 | 38G |
| U2060 | Valid up to model year 2018 | 34B |
| U2060 | Valid up to model year 2018 | 41G |
| U391 | Valid for gasoline engine 276.8 | 5F |
| U397 | Valid for gasoline engine 277 | 4F |
| U398 | Valid for transmission 725 (NAG3) | 18D |
| U414 | Valid for model 217.4 | 63A |
| U495 | Not valid for driving assistance package | 35G |
| U74 | Valid for diesel engines | 1D |
| U74 | Valid for diesel engines | 14C |
| U75 | Valid for gasoline engines | 4D |
| U75 | Valid for gasoline engines | 14C |
| U836 | Valid for AIRMATIC | 11H |
| U880 | Valid for diesel engine 642 | 1F |
| U948 | Valid for diesel engine 651 | 1F |
| Y3/8n4 | Fully integrated transmission control control unit | 19C |
