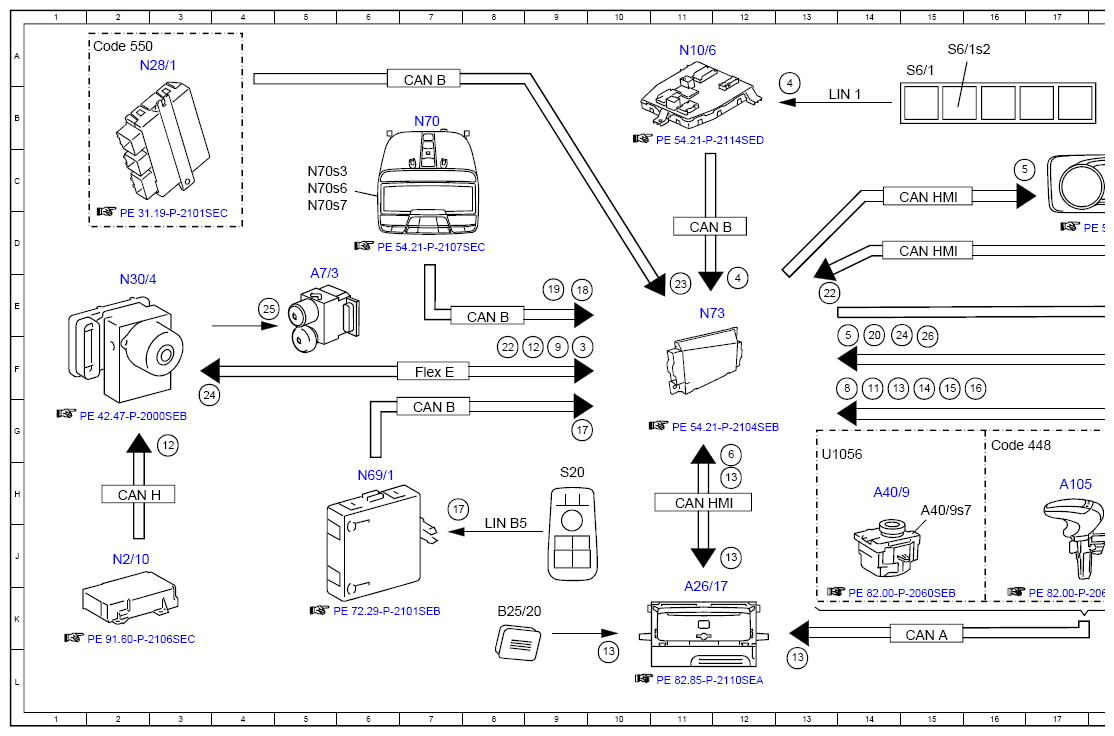

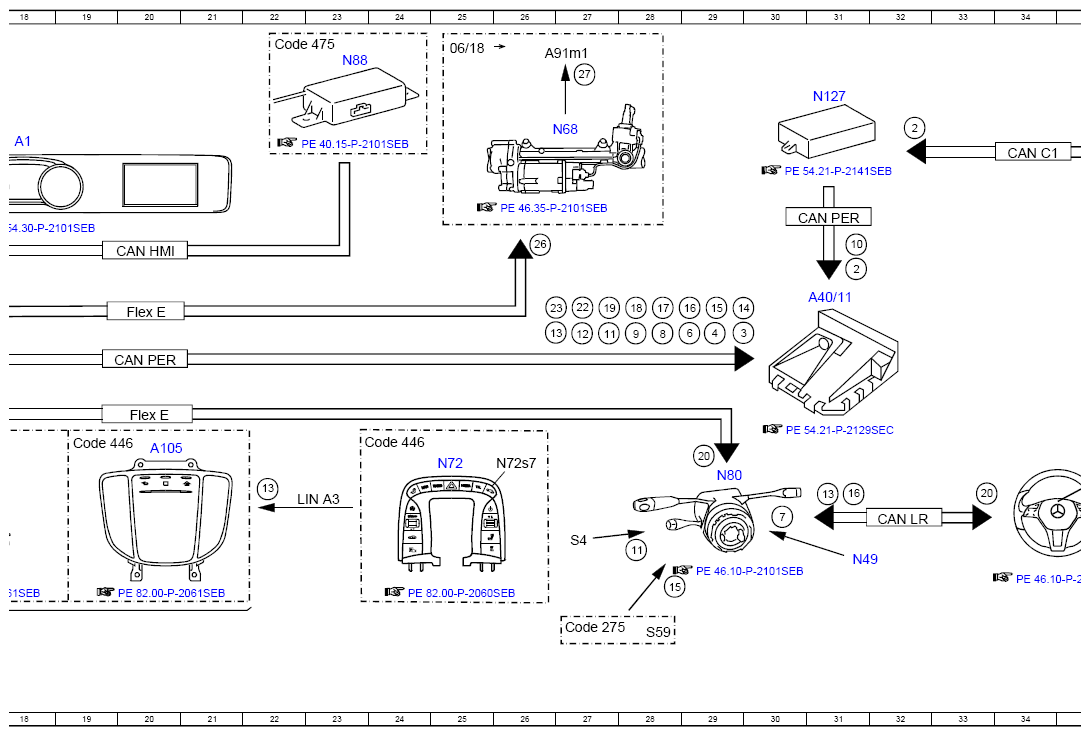

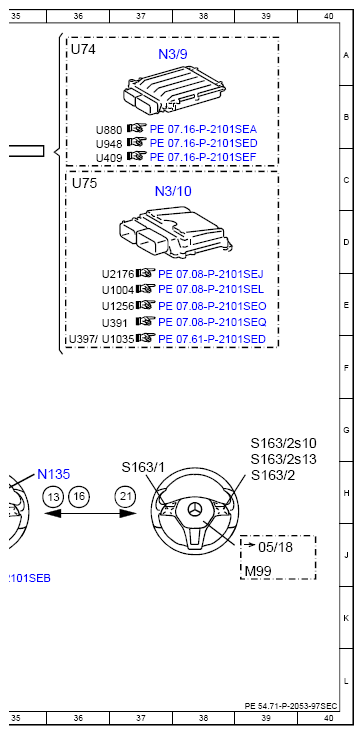

Electrical Function Schematic For Active Lane Keeping Assist - PE54.71-P-2053-97SEC
Model 217, 222 as of model year 2018
with code 243 (Active lane keeping Assist)
except code 23P (Driving Assistance package)
| Code: | Designation: | Position: |
|---|---|---|
| 10 | Accelerator pedal sensor, signal | 31D |
| 11 | Combination switch, status | 28J |
| 11 | Combination switch, status | 14F |
| 11 | Combination switch, status | 27F |
| 12 | Speed, turn rate and lateral acceleration, signal | 3G |
| 12 | Speed, turn rate and lateral acceleration, signal | 9F |
| 12 | Speed, turn rate and lateral acceleration, signal | 27F |
| 13 | Operation, signal | 26E |
| 13 | Operation, signal | 12H |
| 13 | Operation, signal | 31H |
| 13 | Operation, signal | 36H |
| 13 | Operation, signal | 13L |
| 13 | Operation, signal | 14F |
| 13 | Operation, signal | 10L |
| 13 | Operation, signal | 22H |
| 13 | Operation, signal | 12J |
| 14 | CRUISE CONTROL lever, signal | 29E |
| 14 | CRUISE CONTROL lever, signal | 15F |
| 15 | Steering column adjustment switch, status | 28K |
| 15 | Steering column adjustment switch, status | 15F |
| 15 | Steering column adjustment switch, status | 29E |
| 16 | Multifunction steering wheel button group, signal | 16F |
| 16 | Multifunction steering wheel button group, signal | 29E |
| 16 | Multifunction steering wheel button group, signal | 36H |
| 16 | Multifunction steering wheel button group, signal | 31H |
| 17 | Driver-side switch group, status | 7H |
| 17 | Driver-side switch group, status | 9G |
| 17 | Driver-side switch group, status | 28E |
| 18 | Automatic function switch, status | 28E |
| 18 | Automatic function switch, status | 9E |
| 19 | Reading lamp button, status | 27E |
| 19 | Reading lamp button, status | 9E |
| 2 | Drivetrain operational, signal | 31D |
| 2 | Drivetrain operational, signal | 32B |
| 20 | Steering wheel vibration motor, request | 14F |
| 20 | Steering wheel vibration motor, request | 29G |
| 20 | Steering wheel vibration motor, request | 33H |
| 21 | Steering wheel vibration motor, actuation | 37H |
| 22 | Tire pressure sensor, signal | 8F |
| 22 | Tire pressure sensor, signal | 13E |
| 22 | Tire pressure sensor, signal | 27E |
| 23 | Trailer recognition, status | 11E |
| 23 | Trailer recognition, status | 26E |
| 24 | Braking torque increase, request | 4F |
| 24 | Braking torque increase, request | 14E |
| 25 | Traction system hydraulic unit, actuation | 4E |
| 26 | Electric power steering, request | 26D |
| 26 | Electric power steering, request | 15F |
| 27 | Electric power steering actuator motor, actuation | 27A |
| 3 | Wheel speed, signal | 9F |
| 3 | Wheel speed, signal | 29F |
| 4 | Active Lane Keeping Assist button, status | 12D |
| 4 | Active Lane Keeping Assist button, status | 13A |
| 4 | Active Lane Keeping Assist button, status | 29E |
| 5 | Lane Keeping Assist, status | 14E |
| 5 | Lane Keeping Assist, status | 16C |
| 6 | Operating mode, request | 29F |
| 6 | Operating mode, request | 12G |
| 7 | Steering wheel angle sensor, signal | 30H |
| 8 | Steering wheel angle, signal | 14F |
| 8 | Steering wheel angle, signal | 28F |
| 9 | Brake pedal, status | 9F |
| 9 | Brake pedal, status | 28E |
| A1 | Instrument cluster | 18B |
| A105 | Touchpad | 17H |
| A105 | Touchpad | 20G |
| A26/17 | Head unit | 11K |
| A40/11 | Mono multifunction camera | 31E |
| A40/9 | Audio/COMAND control panel | 14H |
| A40/9s7 | CAR button | 15H |
| A7/3 | Traction system hydraulic unit | 5E |
| A91m1 | Electric power steering actuator motor | 27A |
| B25/20 | Driver hands-free system microphone | 8K |
| CAN A | Telematics CAN | 15K |
| CAN B | Interior CAN | 11D |
| CAN B | Interior CAN | 7G |
| CAN B | Interior CAN | 8E |
| CAN B | Interior CAN | 7A |
| CAN C1 | Drivetrain CAN | 34C |
| CAN H | Vehicle dynamics CAN | 2H |
| CAN HMI | User interface CAN | 11H |
| CAN HMI | User interface CAN | 15D |
| CAN HMI | User interface CAN | 20D |
| CAN HMI | User interface CAN | 15C |
| CAN LR | Steering wheel CAN | 32H |
| CAN PER | Peripherals CAN | 31D |
| CAN PER | Peripherals CAN | 20F |
| Code 275 | Front power seats memory package | 27K |
| Code 446 | Touchpad only | 23G |
| Code 446 | Touchpad only | 19G |
| Code 448 | Touchpad | 16G |
| Code 475 | Tire pressure monitor | 22A |
| Code 550 | Trailer hitch | 2A |
| Flex E | Chassis FlexRay | 7F |
| Flex E | Chassis FlexRay | 20G |
| Flex E | Chassis FlexRay | 20E |
| LIN 1 | Instrument panel LIN | 13B |
| LIN A3 | LCP LIN | 23H |
| LIN B5 | Left front door LIN | 8J |
| M99 | Steering wheel vibration motor | 39J |
| N10/6 | Front SAM control unit | 11A |
| N127 | Drivetrain control unit | 31B |
| N135 | Steering wheel electronics | 35H |
| N2/10 | Supplemental restraint system control unit | 2J |
| N28/1 | Trailer recognition control unit | 2A |
| N3/10 | ME-SFI [ME] control unit | 37C |
| N3/9 | CDI control unit | 37A |
| N30/4 | Electronic Stability Program control unit | 2E |
| N49 | Steering wheel angle sensor | 31J |
| N68 | Electrical power steering control unit | 27B |
| N69/1 | Left front door control unit | 6H |
| N70 | Overhead control panel control unit | 7B |
| N70s3 | Interior lamp automatic function button | 5C |
| N70s6 | Left front reading lamp button | 5C |
| N70s7 | Right front reading lamp button | 5C |
| N72 | Lower control panel | 25H |
| N72s7 | CAR button | 26H |
| N73 | Electronic ignition switch control unit | 11E |
| N80 | Steering column module control unit | 29H |
| N88 | Tire pressure monitor control unit | 23A |
| S163/1 | Instrument cluster multifunction steering wheel button group | 37H |
| S163/2 | Head unit multifunction steering wheel button group | 39H |
| S163/2s10 | Head unit finger navigation pad | 39G |
| S163/2s13 | Back button | 39H |
| S20 | Power window and outside mirror adjustment switch group, driver side | 9H |
| S4 | Combination switch | 27J |
| S59 | Steering column adjustment switch | 28K |
| S6/1 | Driver-side instrument panel button group | 15A |
| S6/1s2 | Active Lane Keeping Assist button | 15A |
| U1004 | Valid for engine 177 | 36E |
| U1035 | Valid for gasoline engine 279 | 36F |
| U1056 | Valid except code 446 (Touchpad only) | 13G |
| U1256 | Valid for engine 256 | 36E |
| U2176 | Valid for engine 176 | 36E |
| U391 | Valid for gasoline engine 276.8 | 36E |
| U397 | Valid for gasoline engine 277 | 36F |
| U409 | Valid for diesel engine 656 | 36C |
| U74 | Valid for diesel engines | 36A |
| U75 | Valid for gasoline engines | 36C |
| U880 | Valid for diesel engine 642 | 36B |
| U948 | Valid for diesel engine 651 | 36B |
