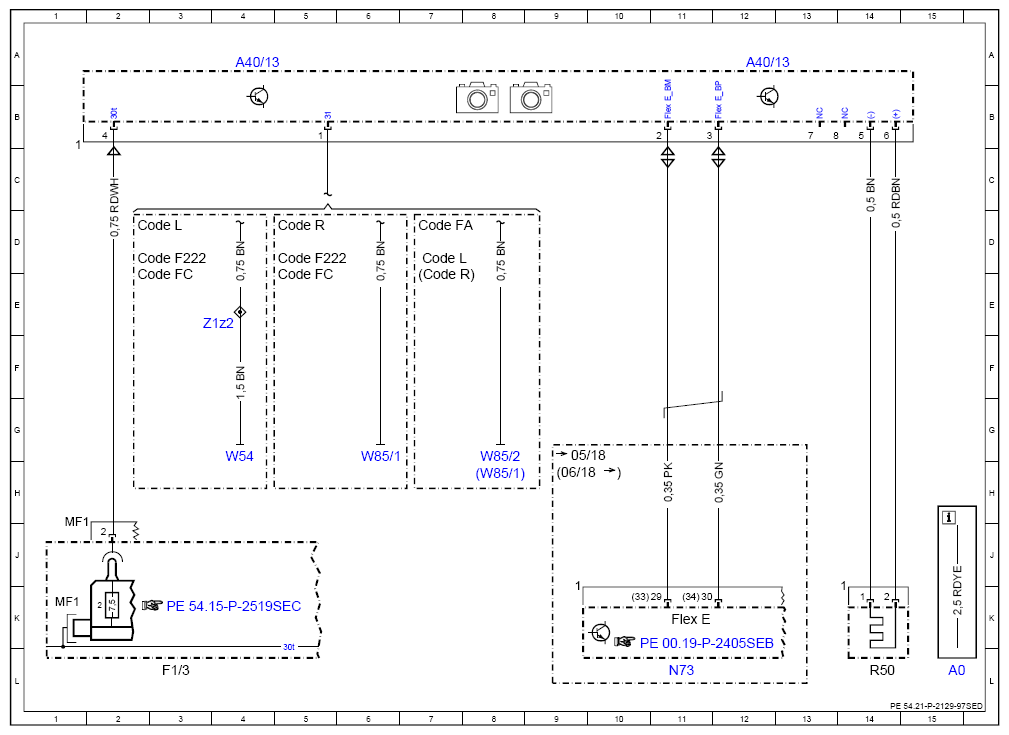

Wiring Diagram For Multifunction Camera - PE54.21-P-2129-97SED
Model 217, 222 as of model year 2018 with code 23P (Driving Assistance package) Stereo multifunction camera A40/13
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A40/13 | Stereo multifunction camera | 4A |
| A40/13 | Stereo multifunction camera | 12A |
| Code F222 | MODEL SERIES 222 | 2D |
| Code F222 | MODEL SERIES 222 | 5D |
| Code FA | CABRIOLET | 7D |
| Code FC | COUPE | 2E |
| Code FC | COUPE | 5E |
| Code L | LEFT-HAND DRIVE | 2D |
| Code L | LEFT-HAND DRIVE | 7D |
| Code R | RIGHT-HAND DRIVE | 5D |
| Code R | RIGHT-HAND DRIVE | 7E |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3MF1 | Multiple fuse 1 | 1K |
| Flex E | Chassis FlexRay | 11K |
| N73 | Electronic ignition switch control unit | 11L |
| R50 | Auxiliary heater heating element | 14L |
| W54 | Right rear wheel well ground point | 4H |
| W85/1 | Driver footwell frame floor assembly ground point | 8H |
| W85/1 | Driver footwell frame floor assembly ground point | 6H |
| W85/2 | Front passenger footwell frame floor assembly ground point | 8H |
| Z1z2 | Circuit 31 connector sleeve | 4E |
