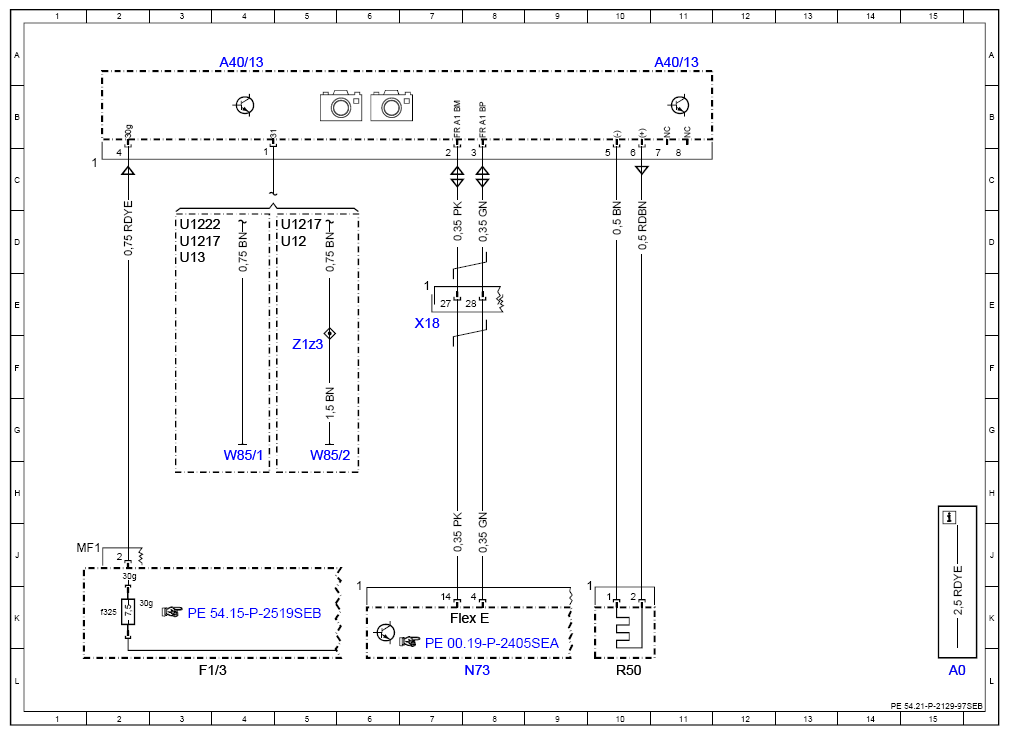

Wiring Diagram For Multifunction Camera - PE54.21-P-2129-97SEB
Model 217 up to model year 2018 Control unit A40/13
with code 238 (Active lane keeping Assist)
with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q)
with code 266 (Steer Assist)
with code 271 (Autonomous brake intervention/pedestrian protection)
with code 487 (MAGIC BODY CONTROL)
with code 513 (Traffic Sign Assist)
with code 608 (Adaptive Highbeam Assist)
with code 610 (Night view assist)
with code 628 (Adaptive Highbeam Assist Plus)
Model 222 up to model year 2018 with code 238 (Active lane keeping Assist)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A40/13 | Stereo multifunction camera | 4A |
| A40/13 | Stereo multifunction camera | 11A |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f325 | Fuse 325 | 2K |
| Flex E | Chassis FlexRay | 7K |
| N73 | Electronic ignition switch control unit | 8L |
| R50 | Auxiliary heater heating element | 10L |
| U12 | Valid for left-hand drive vehicles | 5D |
| U1217 | Valid for model series 217 | 3D |
| U1217 | Valid for model series 217 | 5D |
| U1222 | Valid for model series 222 | 3D |
| U13 | Valid for right-hand drive vehicles | 3D |
| W85/1 | Driver footwell frame floor assembly ground point | 4G |
| W85/2 | Front passenger footwell frame floor assembly ground point | 5G |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 7E |
| Z1z3 | Circuit 31 connector sleeve | 5F |
