Wiring Diagram For Engine Compartment Fuse And Relay Module - PE54.15-P-2106-97SEA

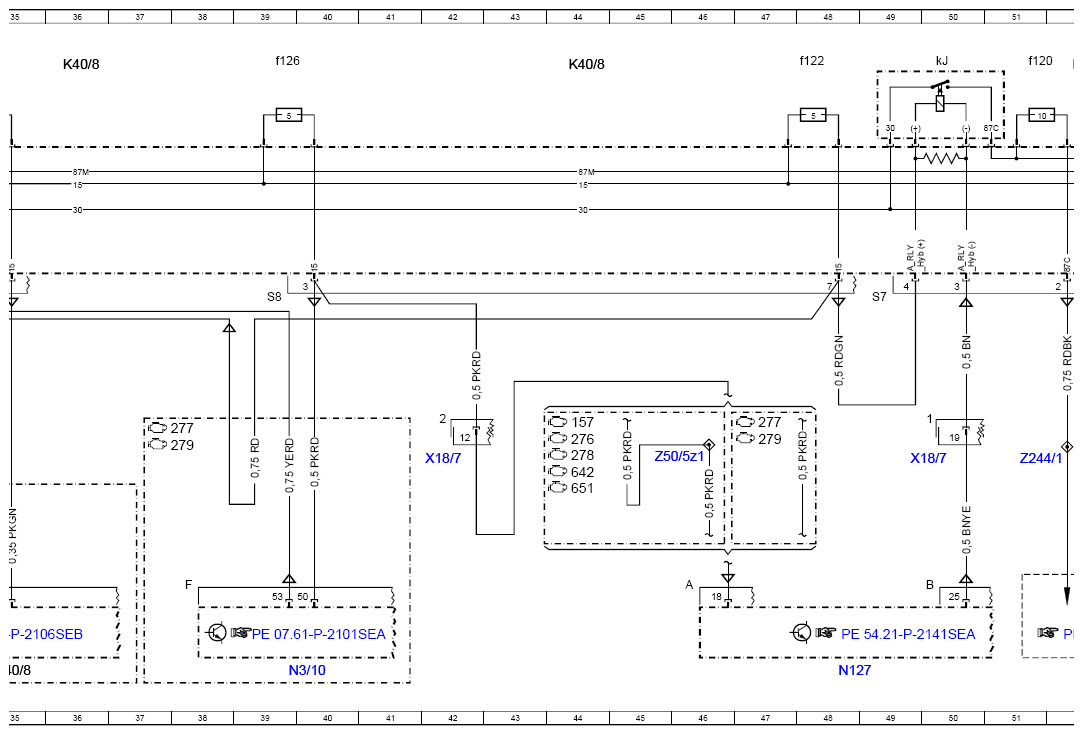

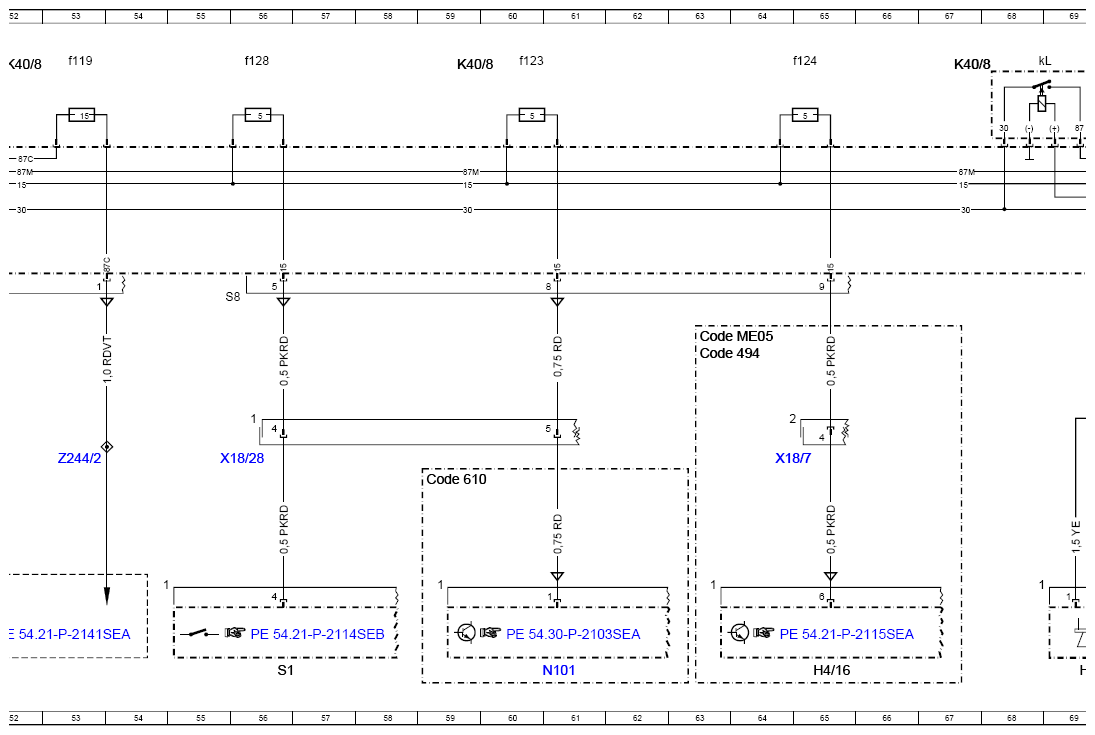

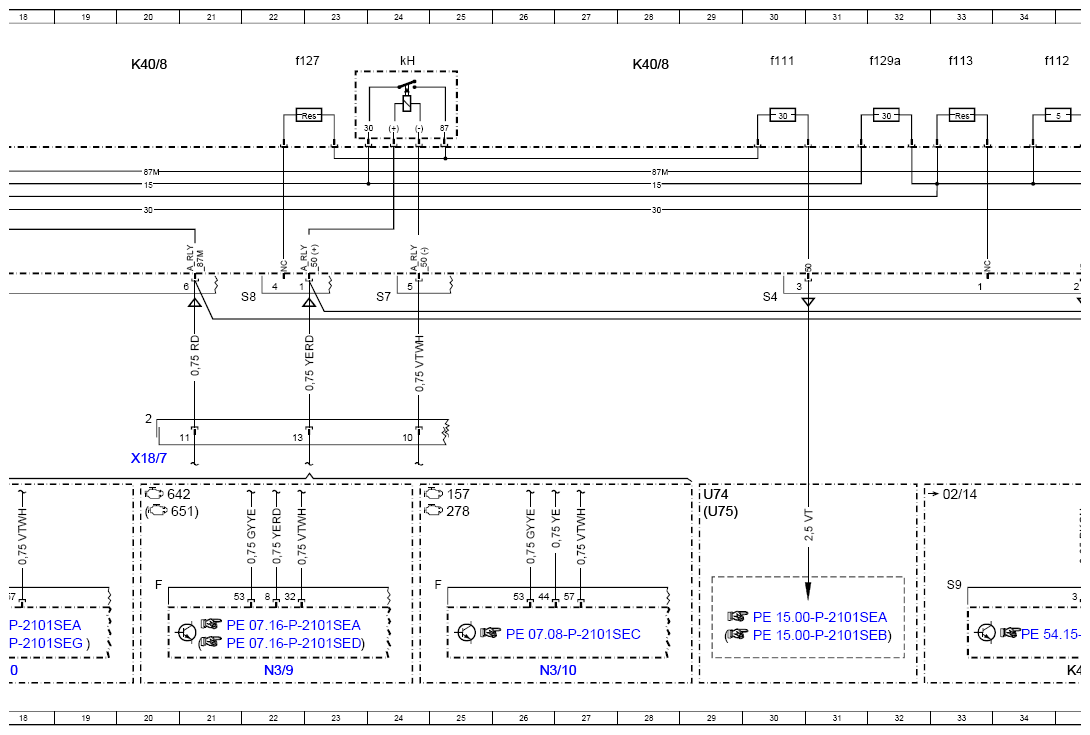

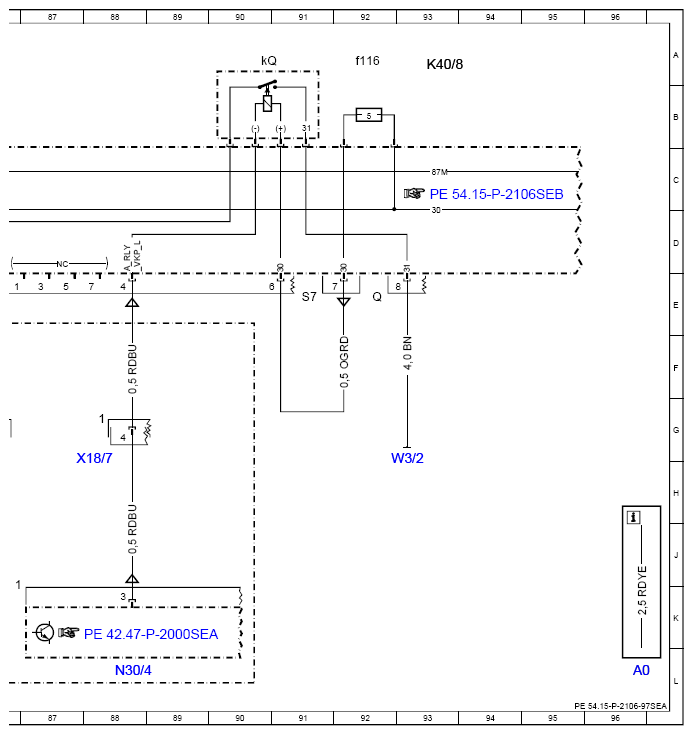

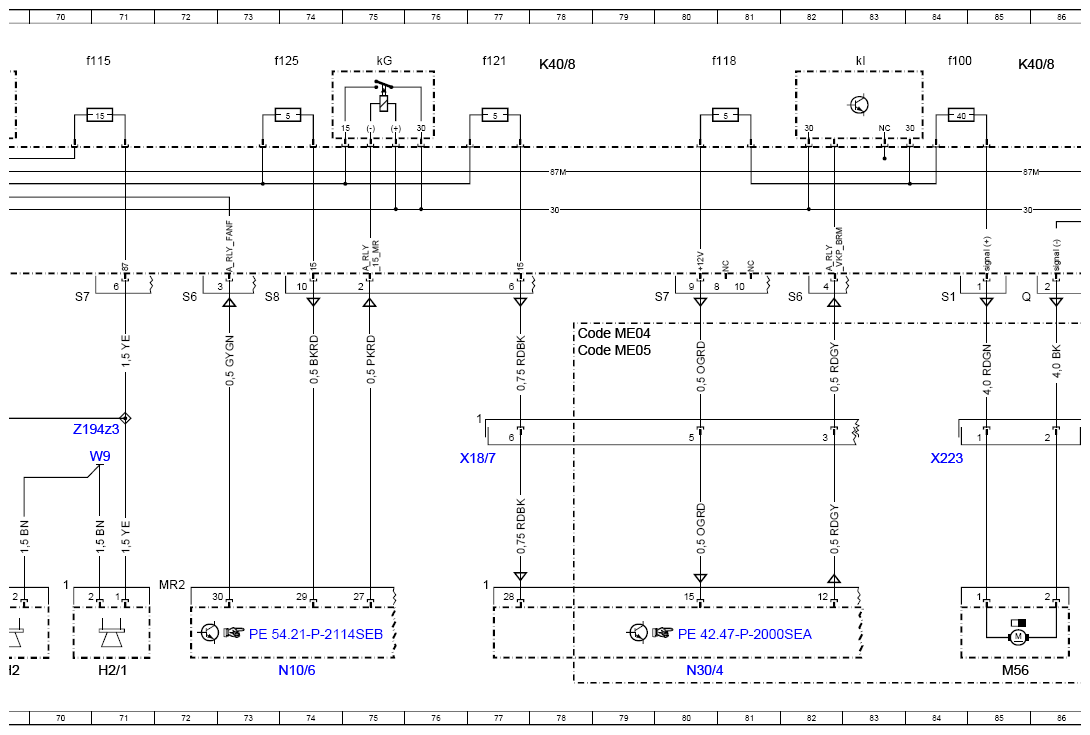

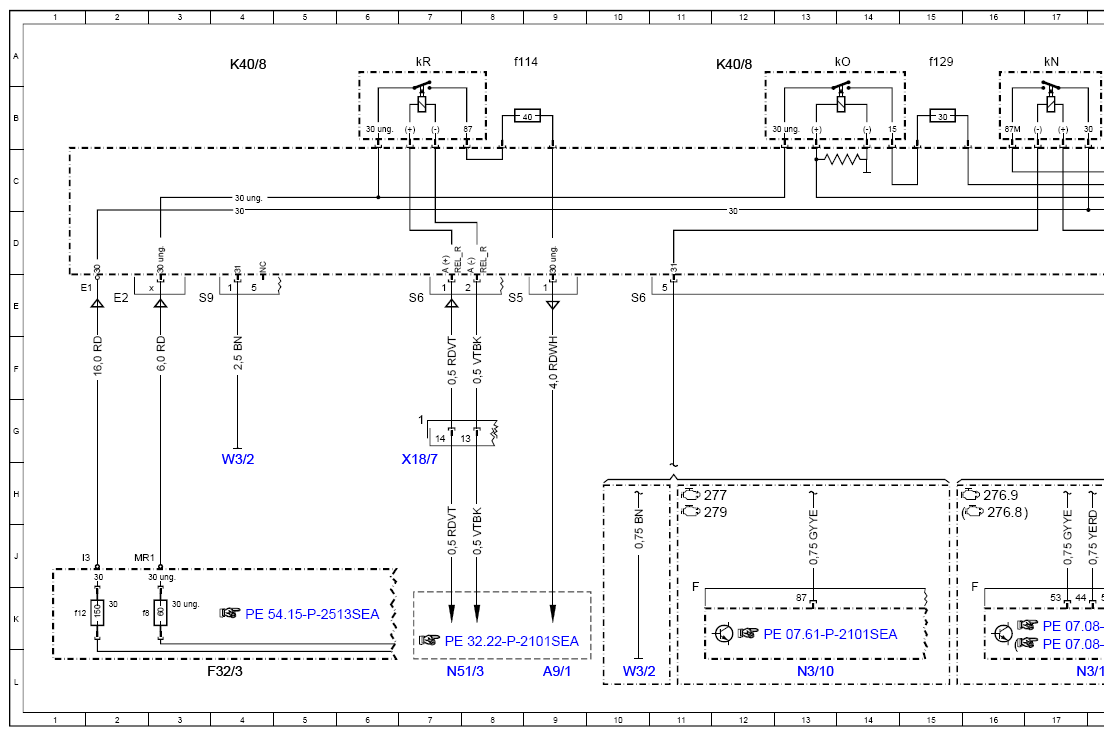

Model 217 up to model year 2018 Fuse and relay module K40/8, Sheet 1
Model 222 up to model year 2018 Fuse and relay module K40/8, Sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| A9/1 | AIRMATIC compressor | 9L |
| Code 494 | USA version | 63F |
| Code 610 | Night View Assist | 59H |
| Code ME04 | Mild hybrid drive | 78F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 78F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 63F |
| F32/3 | Engine compartment prefuse box | 4L |
| F32/3f12 | Fuse 12 | 1K |
| F32/3f8 | Fuse 8 | 2K |
| H2 | Left fanfare horn | 69L |
| H2/1 | Right fanfare horn | 71L |
| H4/16 | Sound generator | 65L |
| K40/8 | Engine fuse and relay module | 35L |
| K40/8 | Engine fuse and relay module | 4A |
| K40/8 | Engine fuse and relay module | 12A |
| K40/8 | Engine fuse and relay module | 20A |
| K40/8 | Engine fuse and relay module | 28A |
| K40/8 | Engine fuse and relay module | 36A |
| K40/8 | Engine fuse and relay module | 44A |
| K40/8 | Engine fuse and relay module | 52A |
| K40/8 | Engine fuse and relay module | 59A |
| K40/8 | Engine fuse and relay module | 67A |
| K40/8 | Engine fuse and relay module | 78A |
| K40/8 | Engine fuse and relay module | 85A |
| K40/8 | Engine fuse and relay module | 93A |
| K40/8f100 | Fuse 100 | 84A |
| K40/8f111 | Fuse 111 | 30A |
| K40/8f112 | Fuse 112 | 34A |
| K40/8f113 | Fuse 113 | 33A |
| K40/8f114 | Fuse 114 | 8A |
| K40/8f115 | Fuse 115 | 70A |
| K40/8f116 | Fuse 116 | 92A |
| K40/8f118 | Fuse 118 | 80A |
| K40/8f119 | Fuse 119 | 53A |
| K40/8f120 | Fuse 120 | 51A |
| K40/8f121 | Fuse 121 | 77A |
| K40/8f122 | Fuse 122 | 48A |
| K40/8f123 | Fuse 123 | 60A |
| K40/8f124 | Fuse 124 | 65A |
| K40/8f125 | Fuse 125 | 73A |
| K40/8f126 | Fuse 126 | 39A |
| K40/8f127 | Fuse 127 | 22A |
| K40/8f128 | Fuse 128 | 56A |
| K40/8f129 | Fuse 129 | 15A |
| K40/8f129a | Fuse 129a | 32A |
| K40/8kG | Engine compartment terminal 15 relay | 75A |
| K40/8kH | Starter circuit 50 relay | 24A |
| K40/8kI | Brake vacuum pump relay | 83A |
| K40/8kJ | HYBRID relay | 50A |
| K40/8kL | Fanfare horn relay | 68A |
| K40/8kN | Circuit 87M relay | 17A |
| K40/8kO | Starter terminal 15 relay | 14A |
| K40/8kQ | Vacuum pump relay | 90A |
| K40/8kR | AIRMATIC relay | 7A |
| M56 | Vacuum pump | 85L |
| N10/6 | Front SAM control unit | 74L |
| N101 | Night View Assist control unit | 61L |
| N127 | Drivetrain control unit | 48L |
| N3/10 | ME-SFI [ME] control unit | 17L |
| N3/10 | ME-SFI [ME] control unit | 13L |
| N3/10 | ME-SFI [ME] control unit | 26L |
| N3/10 | ME-SFI [ME] control unit | 40L |
| N3/9 | CDI control unit | 22L |
| N30/4 | Electronic Stability Program control unit | 80L |
| N30/4 | Electronic Stability Program control unit | 88L |
| N51/3 | AIRMATIC control unit | 7L |
| S1 | Exterior lights switch | 56L |
| U74 | Valid for diesel engines | 29H |
| U75 | Valid for gasoline engines | 29H |
| W3/2 | Left front wheel arch ground point | 10L |
| W3/2 | Left front wheel arch ground point | 4H |
| W3/2 | Left front wheel arch ground point | 93H |
| W9 | Left front ground point (at lamp unit) | 71G |
| X18/28 | Left cockpit/engine compartment electrical connector | 56H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 7H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 20H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 42H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 50H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 65H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 77H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 88H |
| X223 | Vacuum pump electrical connector | 84H |
| Z194z3 | Right lamp unit circuit 30L connector sleeve | 71G |
| Z244/1 | Connector sleeve, circuit 87/C1 | 51H |
| Z244/2 | Circuit 87/C2 connector sleeve | 53H |
| Z50/5z1 | Tml. 15 connector sleeve | 46G |
