Remove/Install Parking System Speaker - AR54.65-P-0034LC

Model 217

with code 235 (Active Parking Assist)

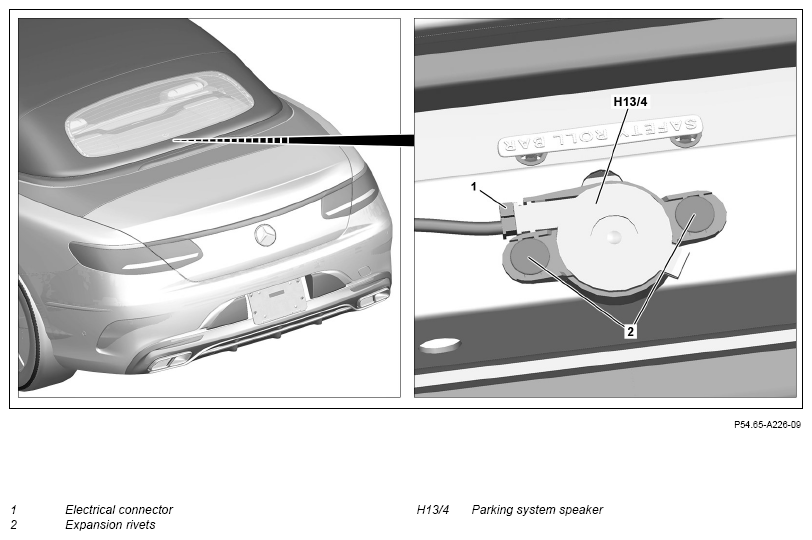

Fig 1: Parking System Speaker Component Location - Model 217 With Code 235

Courtesy of MERCEDES-BENZ USA

Shown on model 217.4

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1.1	Remove rear shelf.	Model 217.3 with code 235 (Active Parking Assist)	AR68.30-P-4581LC
1.2	Remove paneling from soft top at front.	Model 217.4 with code 235 (Active Parking Assist)	AR68.30-P-4320LCA
2	Release electrical connector (1) and disconnect.
3	Remove expansion rivets (2) and remove parking system speaker (H13/4).	Dismantling tool	Fig 2
4	Install in the reverse order.

Fig 2: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
