Remove/Install Night View Assist Control Unit - AR54.30-P-3100LF

Model 217, 222

with code 610 (Night view assist)

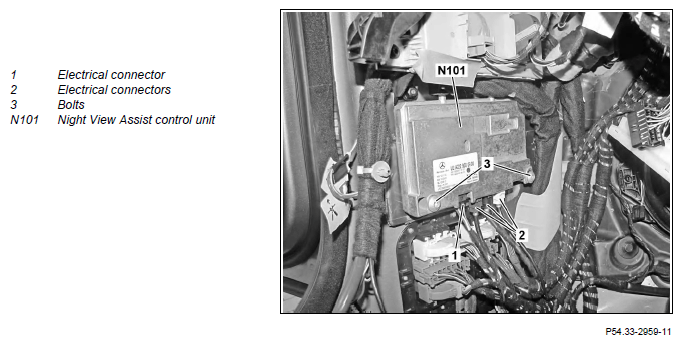

Shown on model 222 - View of left driver footwell

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and remove transmitter key
2	Remove left door sill panel
3	Press floor covering to one side
4	Disconnect electrical connections (1, 2)
5	Remove bolts (3) and remove Night View Assist control unit (N101) downwards
6	Install in the reverse order
7	Calibrate Night View Assist camera (B84) and Night View Assist infrared camera 2 (B84/11) using diagnostic system	When replacing Night View Assist control unit (N101)
			AD00.00-P-2000-04B
	000 588 00 63 00 Test box	When the Night View Assist camera (B84) is calibrated the Night View Assist infrared camera 2 (B84/11) must also be calibrated. The calibration target for the Night View Assist is required for calibration of the Night View Assist camera (B84) and Night View Assist infrared camera 2 (B84/11)	WS82.00-P-0027B
		Calibration device	Fig 1

Fig 1: Identifying Calibration device (000 589 02 21 00)

Courtesy of MERCEDES-BENZ USA
