Remove/Install Interior Compartment Pre-Fuse Box - AR54.15-P-1350LF
Model 217, 222
MODIFICATION NOTES
| 26.09.2017 | Tightening torques added | Step 5 |
Shown on model 222
| Remove/install | |||
| 1 | Move front passenger seat all the way to the rear | ||
| 2 | Detach ground line of on-board electrical system battery | AR54.10-P-0003LF | |

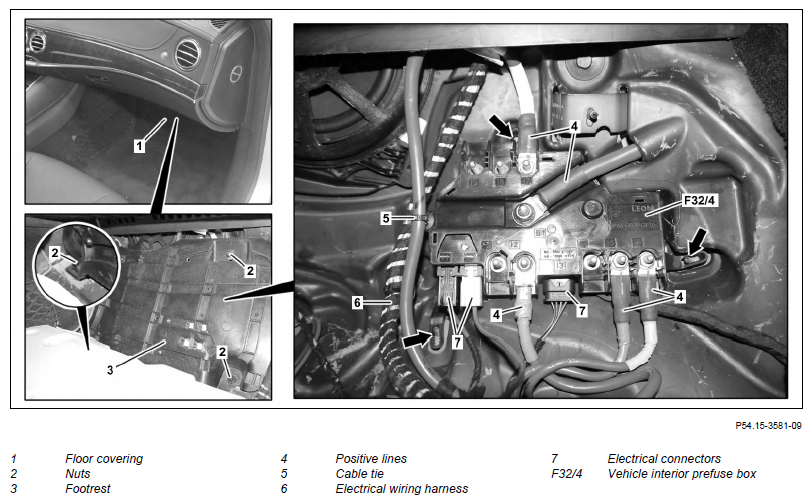

| 3 | Fold back floor covering (1) in passenger footwell toward rear | ||
| 4 | Unscrew nuts (2) and fold back footrest (3) toward rear | ||
| 5 | Detach positive lines (4) from vehicle interior prefuse box (F32/4) | The connections of the positive lines (4) are shape-keyed. |
*BA54.15-P-1003-01J |
| 6 | Open cable tie (5) | ||
| 7 | Detach electrical wiring harness (6) from vehicle interior prefuse box (F32/4) | ||
| 8 | Unclip vehicle interior prefuse box (F32/4) from threaded pin (arrows) | ||
| 9 | Disconnect electrical connectors (7) and remove vehicle interior prefuse box (F32/4) from front passenger footwell | ||
| 10 | Install in the reverse order |
FUSE AND RELAY BOX
| Number | Designation | Model 217 | Model 222 | ||
|---|---|---|---|---|---|
| BA54.15-P-1003-01J | Nut, positive terminal to vehicle interior prefuse box | M6 | Nm | 8 | 8 |
| M8 | Nm | 16 | 16 | ||
