Remove/Install Cigarette Lighter - AR54.10-P-0030LC

Model 217

with code 301 (Package SMOKER)

Courtesy of MERCEDES-BENZ USA

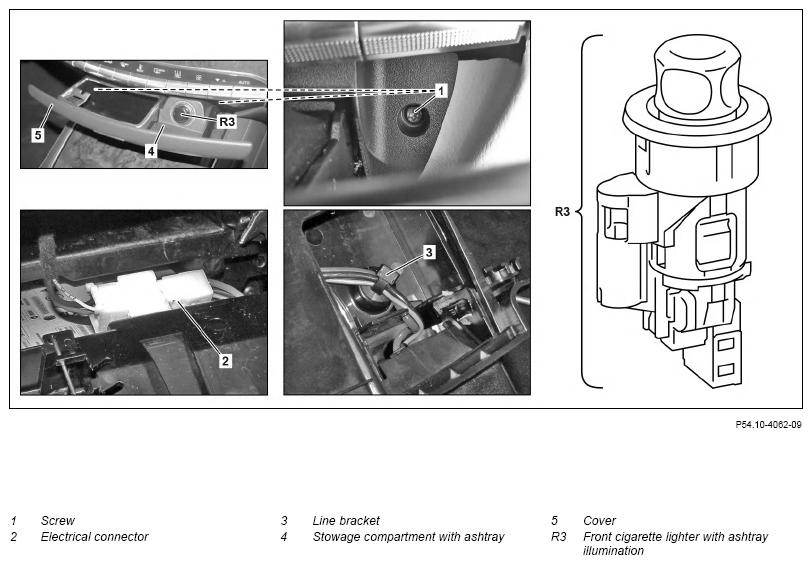

	Remove/install
1	Open stowage compartment with ashtray (4)
2	Remove bolt (1)
3	Remove stowage compartment with ashtray (4)
4	Unclip cover (5) from ashtray (4) and remove
5	Detach electrical connection (2) from rear of stowage compartment (4)
6	Unclip electrical wiring harness from line bracket (3)	: Replace the damaged line bracket (9).
7	Release front cigarette lighter with ashtray illumination (R3) using pliers and pull far enough out of spring pin until electrical connection is accessible	Pliers	Fig 1
8	Disconnect electrical connection from cigarette lighter (R3) and remove housing of cigarette lighter with front ashtray illumination (R3)
9	Unclip spring pin by pushing back both catch hooks and remove from stowage compartment with ashtray (4)	: Ensure spring pin is in correct installation position.
10	Install in the reverse order

Fig 1: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
