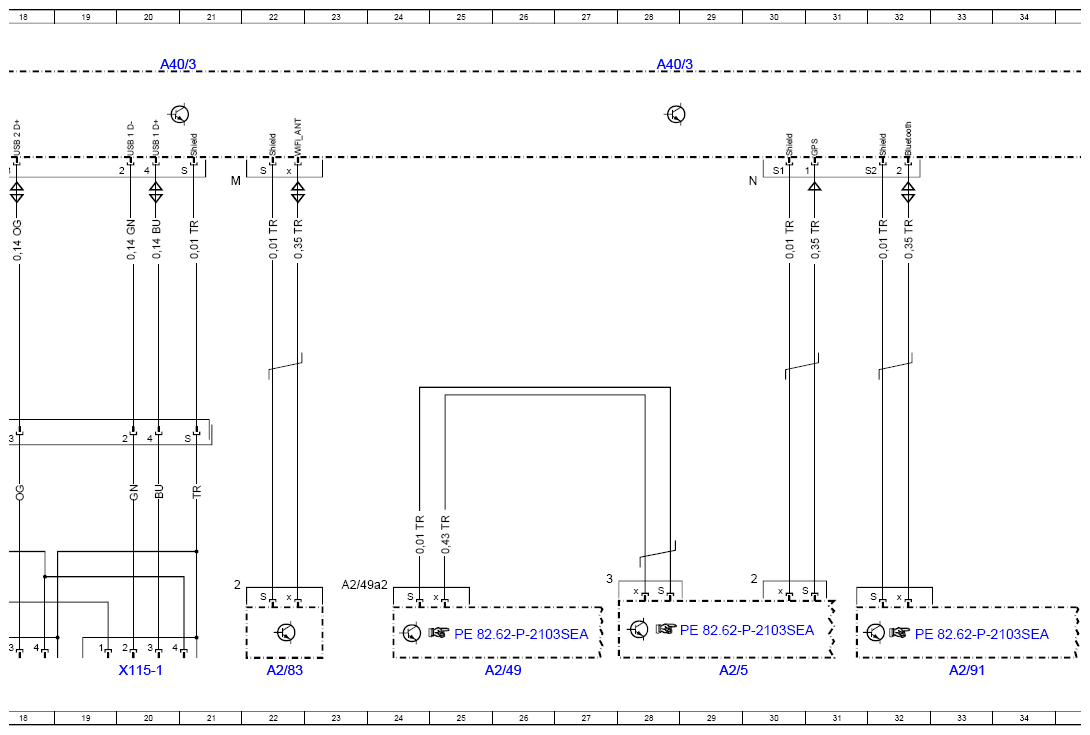

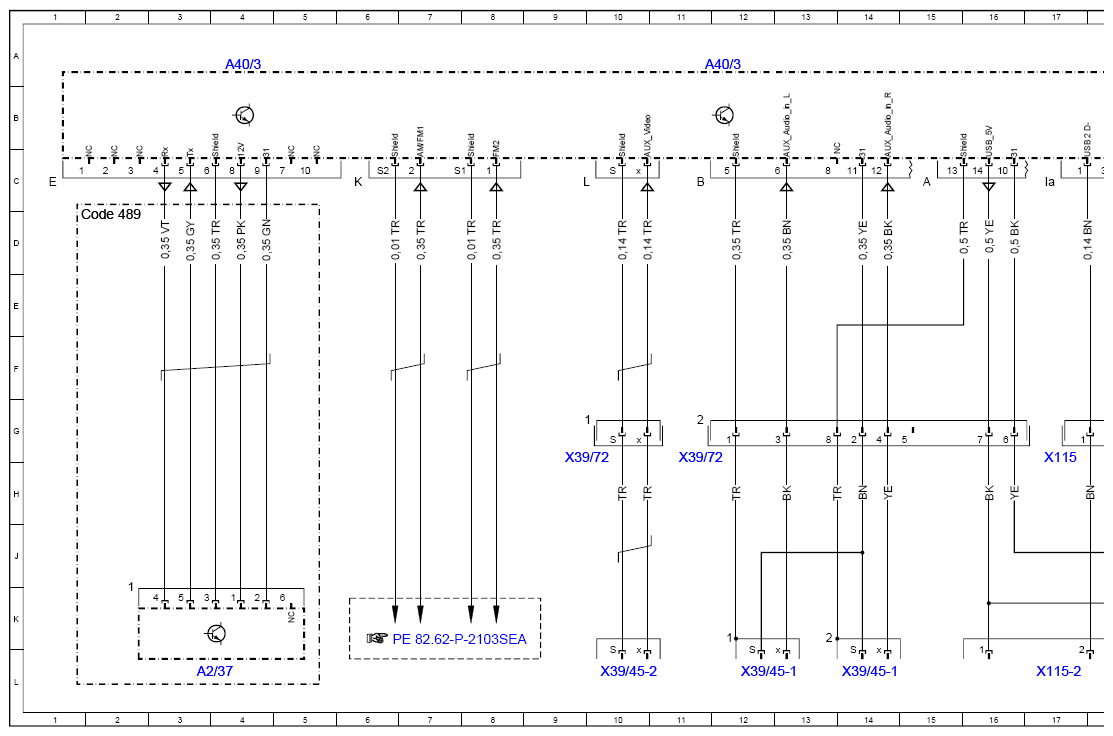

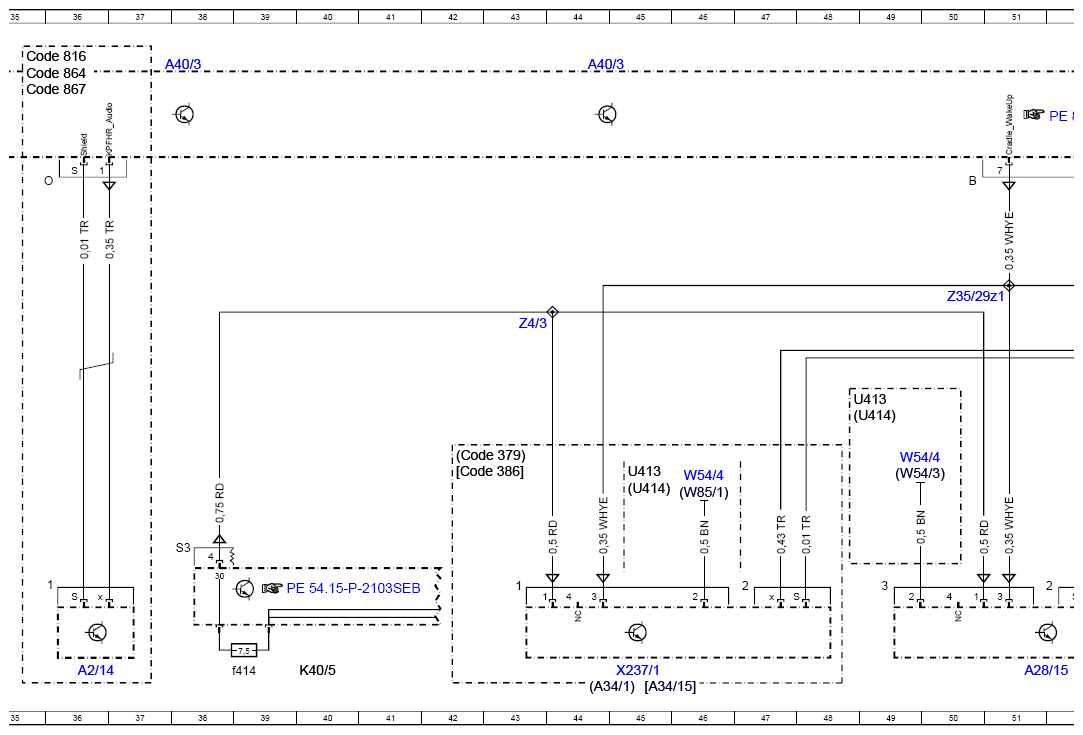

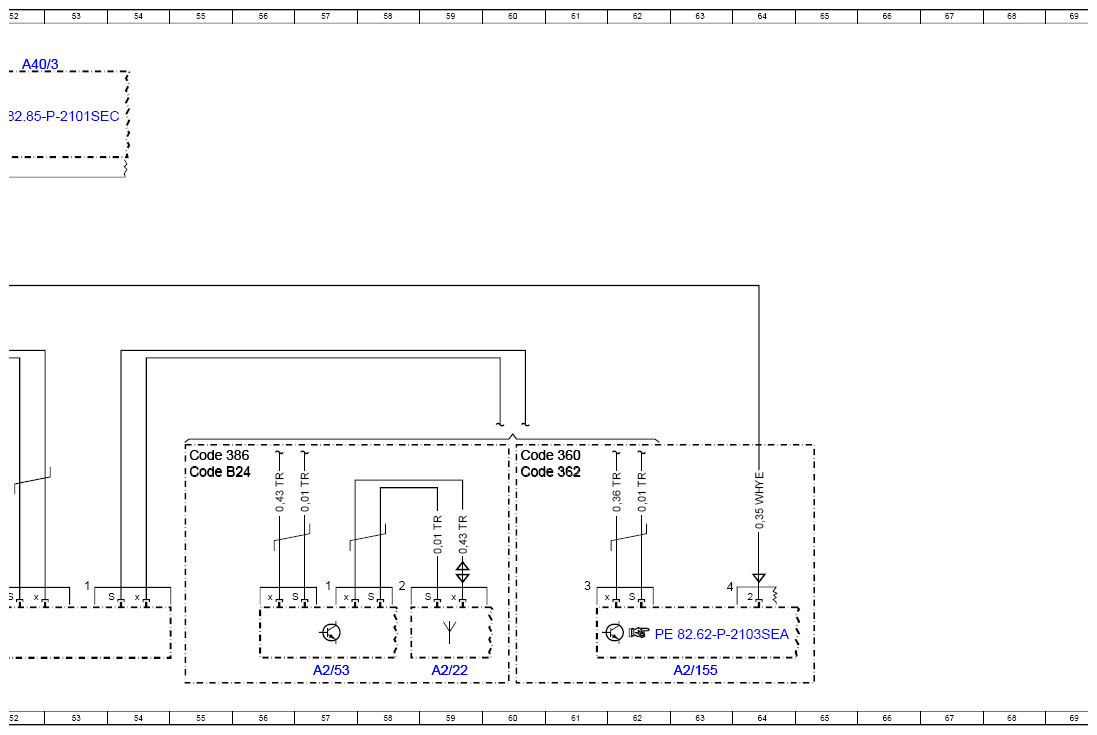

Cockpit Management And Data System (Command) Control Unit Wiring Diagram - PE82.85-P-2101-97SED
Model 217 up to model year 2018 with code 531 (COMAND APS) Control unit A40/3, Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| A2/14 | Headphones and remote control antenna | 36L |
| A2/155 | Telephone and stationary heater antenna changeover switch | 63L |
| A2/22 | Telephone and stationary heater antenna | 59L |
| A2/37 | Vehicle Information and Communication System (VICS) control unit | 3L |
| A2/49 | Telematics services and GPS antenna | 26L |
| A2/5 | Global positioning system antenna splitter | 29L |
| A2/53 | Mobile phone and stationary heater radio remote control antenna splitter | 57L |
| A2/83 | WLAN antenna | 22L |
| A2/91 | Bluetooth® antenna | 33L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 51L |
| A34/1 | Telephone module with Bluetooth® (SAP profile) | 44L |
| A34/15 | Mobile phone holder | 45L |
| A40/3 | COMAND control unit | 4A |
| A40/3 | COMAND control unit | 12A |
| A40/3 | COMAND control unit | 20A |
| A40/3 | COMAND control unit | 28A |
| A40/3 | COMAND control unit | 38A |
| A40/3 | COMAND control unit | 44A |
| A40/3 | COMAND control unit | 52A |
| Code 360 | HERMES UMTS | 60G |
| Code 362 | HERMES LTE | 60H |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 42G |
| Code 386 | Comfort telephony | 42H |
| Code 386 | Comfort telephony | 55G |
| Code 489 | AIRMATIC | 1D |
| Code 816 | Entertainment remote control | 35A |
| Code 864 | Rear compartment entertainment | 35A |
| Code 867 | SPLITVIEW | 35B |
| Code B24 | Radio remote control for stationary heater | 55H |
| K40/5 | Rear fuse and relay module | 40L |
| K40/5f414 | Fuse 414 | 39L |
| U413 | Valid for model 217.3 | 45H |
| U413 | Valid for model 217.3 | 48G |
| U414 | Valid for model 217.4 | 45H |
| U414 | Valid for model 217.4 | 48G |
| W54/3 | Left rear wheel well ground point | 49H |
| W54/4 | Left rear wheel well ground point (vehicle interior) | 46H |
| W54/4 | Left rear wheel well ground point (vehicle interior) | 49H |
| W85/1 | Driver footwell frame floor assembly ground point | 46H |
| X115 | USB electrical connector | 17H |
| X115-1 | USB electrical connector 1 | 20L |
| X115-2 | USB electrical connector 2 | 17L |
| X237/1 | Mobile phone contact plate | 45L |
| X39/45-1 | Front audio AUX connection electrical connector 1 | 14L |
| X39/45-1 | Front audio AUX connection electrical connector 1 | 12L |
| X39/45-2 | Video AUX connection electrical connector | 10L |
| X39/72 | Front AUX connection electrical connector | 10H |
| X39/72 | Front AUX connection electrical connector | 11H |
| Z35/29z1 | Front telephone wake-up signal connector sleeve | 50E |
| Z4/3 | Tml. 30 connector sleeve | 43E |
