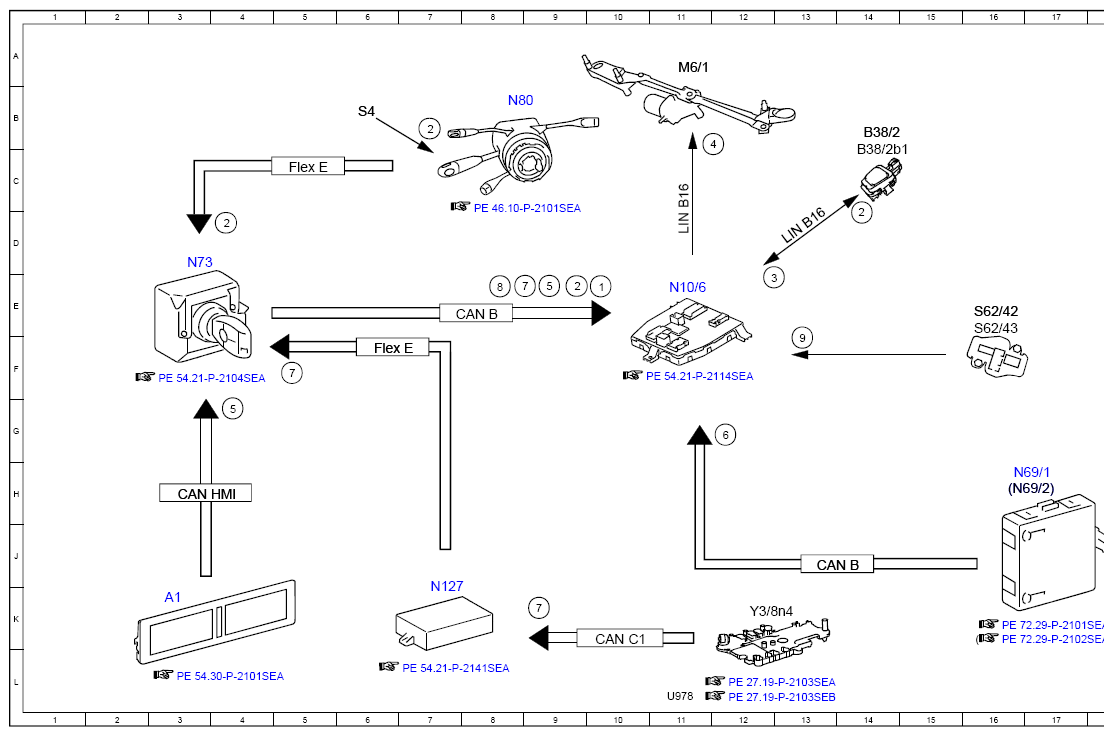

Electrical Function Schematic For Windshield Wiper - PE82.30-P-2051-97SEA
Model 217, 222
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 10E |
| 2 | Combination switch, status | 4D |
| 2 | Combination switch, status | 7B |
| 2 | Combination switch, status | 9E |
| 2 | Combination switch, status | 14C |
| 3 | Rain sensor, request | 13E |
| 4 | Wiper motor, actuation | 12B |
| 5 | Vehicle speed, signal | 4G |
| 5 | Vehicle speed, signal | 9E |
| 6 | Door rotary tumbler switch, status | 12G |
| 7 | Gear range, status | 4F |
| 7 | Gear range, status | 9E |
| 7 | Gear range, status | 9K |
| 8 | Circuit 50, status | 8E |
| 9 | Engine hood contact switch, status | 13E |
| A1 | Instrument cluster | 3K |
| B38/2 | Rain/light sensor with additional functions | 14B |
| B38/2b1 | Rain sensor | 14C |
| CAN B | Interior CAN | 8E |
| CAN B | Interior CAN | 13J |
| CAN C1 | Drive train CAN | 10K |
| CAN MM] | User interface CAN | 3H |
| Flex E | Chassis FlexRay | 5C |
| Flex E | Chassis FlexRay | 6F |
| LIN B16 | Rain and Light sensor LIN | 11C |
| LIN B16 | Rain and Light sensor LIN | 13D |
| M6/1 | Wiper motor | 11A |
| N10/6 | Front SAM control unit | 11E |
| N127 | Drivetrain control unit | 7K |
| N69/1 | Left front door control unit | 16H |
| N69/2 | Right front door control unit | 16H |
| N73 | Electronic ignition switch control unit | 3D |
| N80 | Steering column module control unit | 8B |
| S4 | Combination switch | 6B |
| S62/42 | Right engine hood contact switch | 16E |
| S62/43 | Left engine hood contact switch | 16E |
| U978 | Valid for hybrid drive | 11L |
| Y3/8n4 | Fully integrated transmission control control unit | 12K |
