Remove/Install Multimedia Connection Unit In Center Console - AR82.60-P-1037LF

Model 217, 222

as of model year 2018

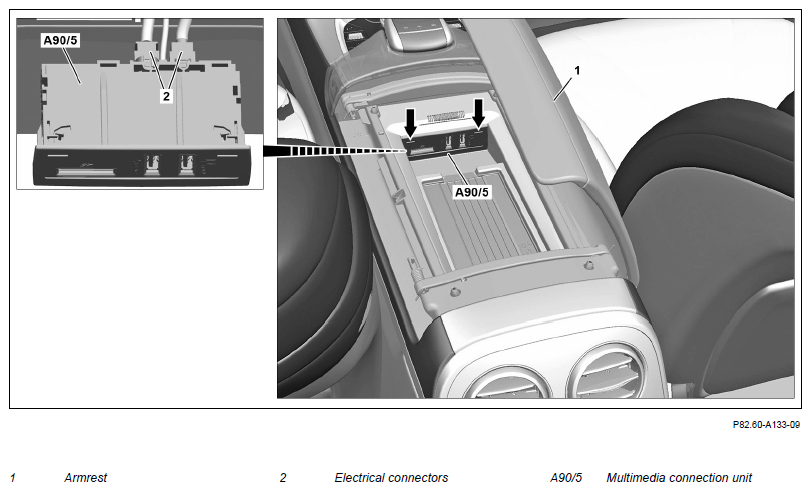

Fig 1: Multimedia Connection Unit Component Location - Model 217 As Of Model Year 2018

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Open armrest (1).
3	Insert removal fixtures into openings (arrows) and unclip multimedia connection unit (A90/5).	Removal assembly	Fig 2
4	Pull out multimedia connection unit (A90/5) until electrical connectors (2) are accessible.
5	Release and disconnect electrical connectors (2) then remove multimedia connection unit (A90/5).
6	Install in the reverse order.

Fig 2: Identifying Removal Assembly (000 589 88 63 00)

Courtesy of MERCEDES-BENZ USA
