Remove/Install Loudspeakers In Front Doors - AR82.62-P-7845LC
Model 217

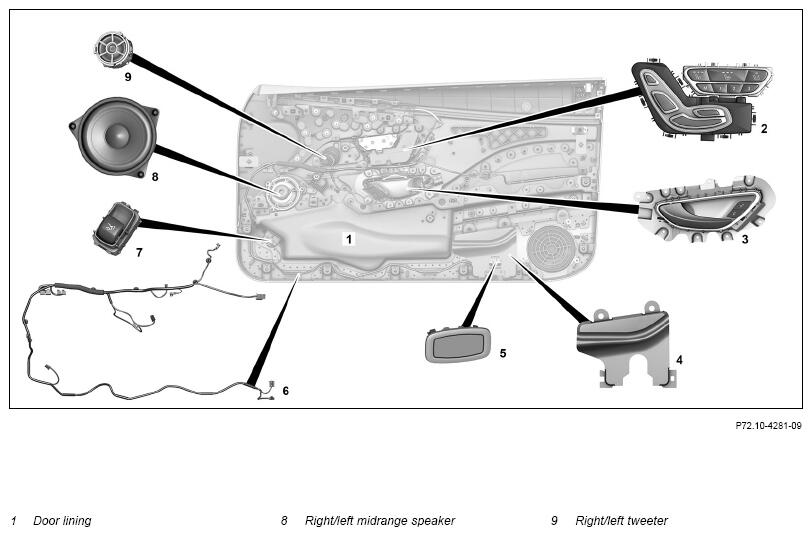

Shown on MODEL 217 with CODE 811 (Advanced sound system)
| Remove/install | |||
| 1 | Remove door lining (1) at right or left front door | AR72.10-P-1000LC | |
| 2 | Remove insulation mat from door lining | When removing right/left tweeter (9) or right/left midrange speaker (8). | |
| 3 | Unclip right/left tweeter (9) from door lining (1) | When removing right/left tweeter (9). | |
| 4 | Unclip right/left midrange speaker (8) from door lining (1) | When removing right/left midrange speaker (8). | |
| 5 | Secure right/left woofer (11) against falling down | ||

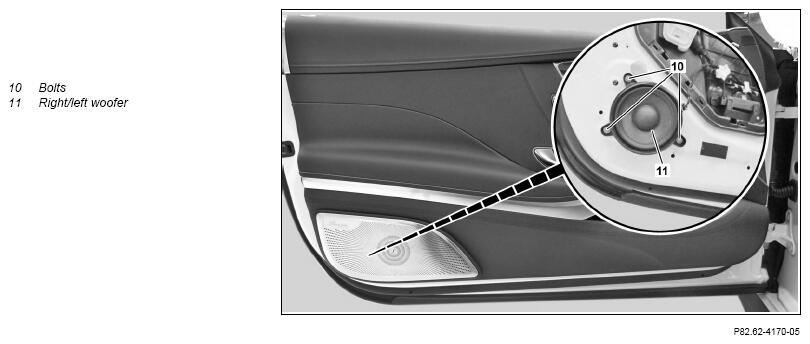

| 6 | Remove bolts (10) | Model 217 with code 811 (Advanced sound system) |
|
| 7 | Remove right/left woofer (11) and disconnect electrical connector | Model 217 with code 811 (Advanced sound system) |
|
| 8 | Install in the reverse order |
