Remove And Install Underbody Paneling - Ar61.30-P-1001LF
Model 217, 222
Shown on model 222.0
Shown on MODEL 222.0 with CODE 413 (Panoramic sliding roof)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Raise vehicle with vehicle lift | ||

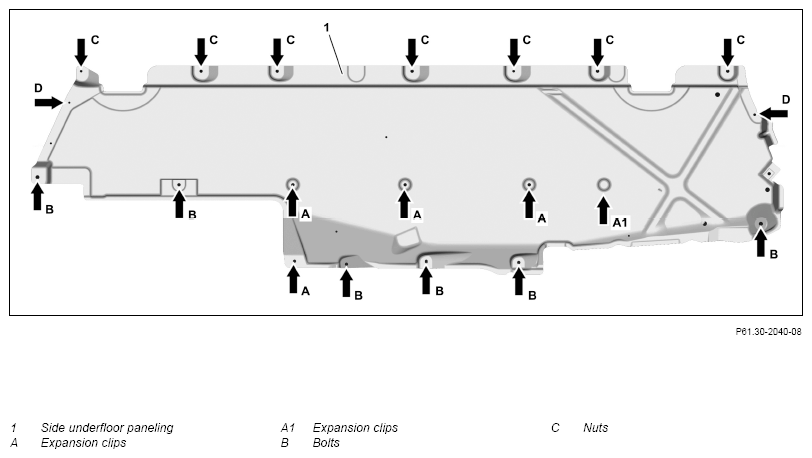

| Remove side underfloor paneling (1) | |||
| 2 | Unscrew nuts (C) | ||
| 3 | Unscrew bolts (B and D) | ||
| 4 | Detach engine compartment paneling until side underfloor paneling (1) can be removed | ||
| 5 | Remove expansion rivets (A and A1) and remove side underfloor paneling (1) | The expansion rivet (arrow A1) is only installed on MODEL 222.1##. |
|

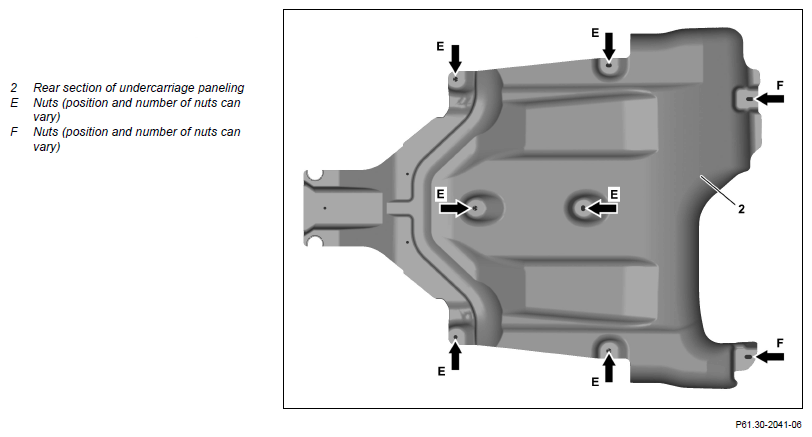

| Remove rear underfloor paneling (2) | |||
| 6 | Unscrew bolts on cross strut and detach cross strut | Model 222 with code 413 (Automatic panoramic sliding sunroof) Model 222 with code 419 (Solar module for interior ventilation) |
*BA61.10-P-1009-01K |
| 7 | Unscrew nuts (E and F) and remove rear underfloor paneling (2) | ||
| 8 | Install in the reverse order |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 222.0/1/9 | |
|---|---|---|---|
| BA61.10-P-1009-01K | Screw/bolt, rear diagonal strut to bracket/spare wheel well | Nm | 50 |
