Remove/Install Left Front Or Right RPM Sensor - AR42.30-P-0712LF
Model 217, 222
Shown on model 222
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Detach corresponding complete wheel | AR40.10-P-1102A | |

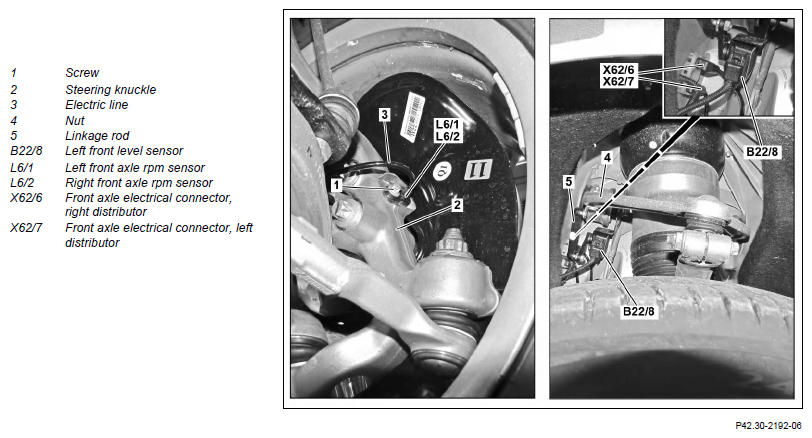

| 3 | Remove bolt (1) and pull left front axle rpm sensor (L6/1) and right front axle rpm sensor (L6/2) out of steering knuckle (2) | *BA42.30-P-1001-01K | |
| 4 | Expose electrical line (3) of left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2) | ||
| 5 | Unscrew nut (4) and place linkage (5) of left front level sensor (B22/8) to one side | When removing left front axle rpm sensor (L6/1) |
|
| *BA82.10-P-1002-01D | |||
| 6 | Detach corresponding right front axle distributor electrical connection (X62/6) or left front axle distributor electrical connection (X62/7) and remove left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2) | ||
| 7 | Install in the reverse order | ||
| 8 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B |
FRONT AXLE RPM SENSOR
| Number | Designation | Model 217 | Model 222 | ||
|---|---|---|---|---|---|
| BA42.30-P-1001-01K | Bolt, rpm sensor to steering knuckle | M6 | Nm | 8 | 8 |
FRONT AXLE LEVEL SENSOR
| Number | Designation | Model 217 | Model 222 | |
|---|---|---|---|---|
| BA82.10-P-1002-01D | Nut, connecting strut to upper transverse control arm | Nm | 6 | 6 |
