Brake System - Inspect Fluid Level - AP42.10-P-4210HA
Model 217, 222

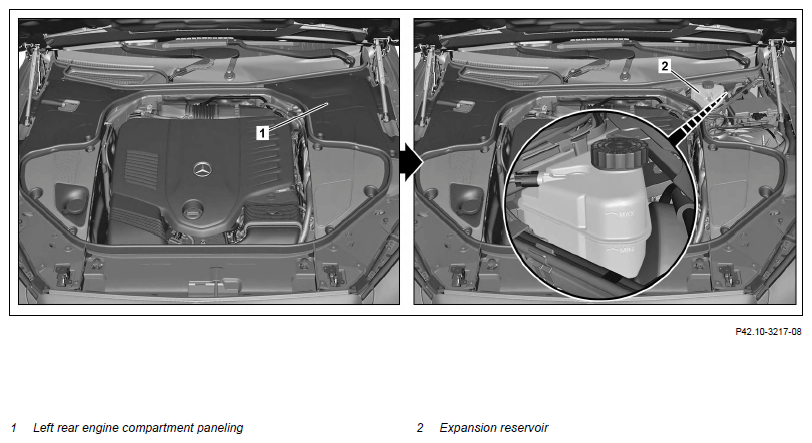

Shown on engine 256.9 in model 222.159
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Topical note | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Topical note | Brake fluid notes | AH42.50-P-0001-01A | |
| Remove | |||
| 1 | Remove rear left engine compartment trim (1) above expansion reservoir (2) | ||
| Check | |||
| 2 | Check fluid level in expansion reservoir (2) | ||
| General brake fluid | BB00.40-P-0330-01A | ||
| Brake fluids (DOT 4 plus) | If the fluid level is too low ↓ Rectify problem subject to separate repair order. If the fluid level is too high ↓ Extract brake fluid down to "Max." marking. |
BB00.40-P-0331-00A | |
| Install | |||
| 3 | Install rear left engine compartment trim (1) above expansion reservoir (2) |
