Assess Condition Of Brake Disks - AP42.10-P-4256EW
Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293, 453, 461, 463
Shown on model 223.063

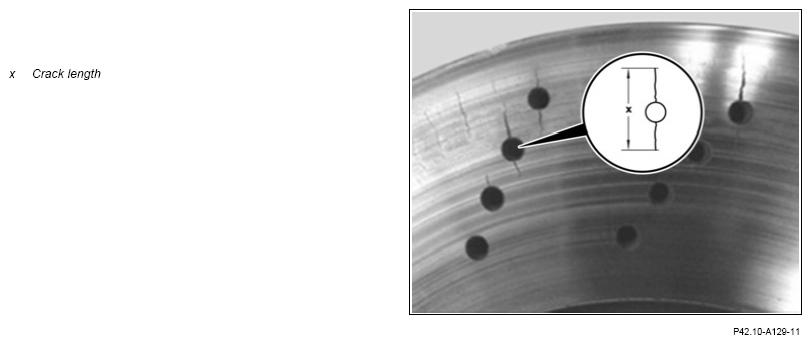

Damage profile on drilled brake disk with cast iron friction ring

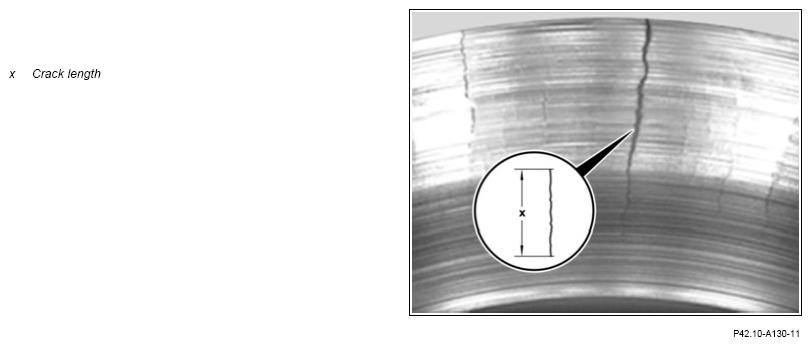

Damage profile on brake disk with cast iron friction ring

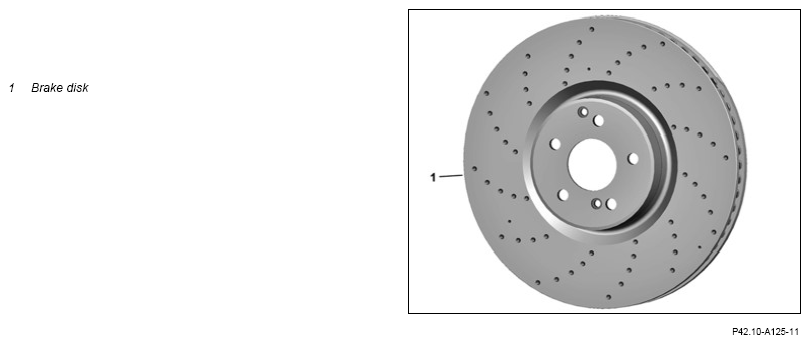

One-piece, internally-ventilated, drilled brake disk with cast iron friction ring

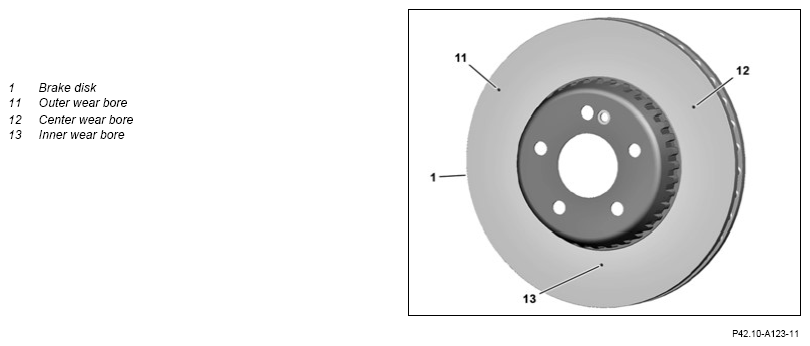

2-piece, internally-ventilated compound brake disk with cast iron friction ring, steel pan and wear bores

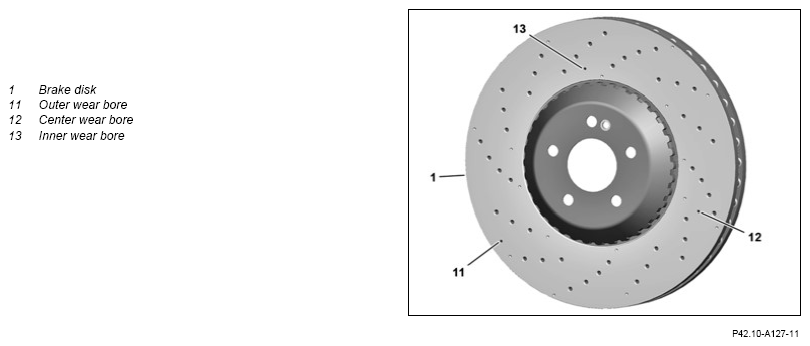

2-piece, internally-ventilated, drilled compound brake disk with cast iron friction ring, steel pan and wear bores

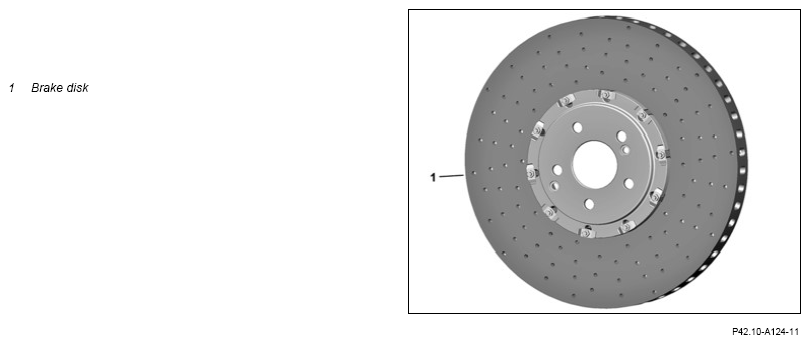

3-piece, internally ventilated, drilled compound brake disk with ceramic friction ring and aluminum pan
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notice | Notes on handling, transport and storage of composite brake disks | Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461, 463 | AH42.10-P-9406-12LF |
| Notice | Notes on handling, transport and storage of ceramic brake disks | Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461, 463 | AH42.10-P-9406-13A |
| Check | |||
| 1.1 | Assess brake disks (1) with a cast iron friction ring for soiling (e.g. oil, grease). | Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 203, 204, 207, 209, 211, 216, 219, 221, 230, 238, 242, 245, 246, 247, 251, 257, 292, 293, 453, 461, 463 Model 190, 197, 205, 212, 213, 217, 218, 222, 231, 253, 290 except code B07 (AMG - ceramic brake system) Model 205 with code B07 (AMG - ceramic brake system) and brake disks (1) with a cast iron friction ring on rear axle If soiling (e.g. oil, grease) is present, ↓ clean brake disks (1) with a cast iron friction ring; replace, if necessary. |
|
| 1.2 | Assess brake disks (1) with a ceramic friction ring for soiling. | Model 190, 197, 205, 212, 213, 218, 231, 253, 290 with code B07 (AMG - ceramic brake system) If the brake disks (1) with a ceramic friction ring are soiled with oil or grease, ↓ replace brake disks (1) with a ceramic friction ring. |
|
| 1.3 | Assess brake disks (1) with a ceramic friction ring for soiling. | Model 217, 222 with code B07 (AMG - ceramic brake system) If the brake disks (1) with a ceramic friction ring are soiled with oil or grease, ↓ Replace brake disks (1) with ceramic friction ring on each axle. |
|
| 2.1 | Assess brake disks (1) with a cast iron friction ring for damage, score marks, cracks and corrosion. | Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 203, 204, 207, 209, 211, 216, 219, 221, 230, 238, 242, 245, 246, 247, 251, 257, 292, 293, 453, 461, 463 Model 190, 197, 205, 212, 213, 217, 218, 222, 231, 253, 290 except code B07 (AMG - ceramic brake system) Model 205 with code B07 (AMG - ceramic brake system) and brake disks (1) with a cast iron friction ring on rear axle If crack length (x) is ≥ 25 mm (0.98 inch) or extends up to inner or outer edge of friction ring, if there are gaping cracks or score marks are deeper than 0.5 mm (0.02 inch), or if there is pitted corrosion: ↓ replace brake disks (1) with a cast iron friction ring. |
|
| 2.2 | Assess brake disks (1) with a ceramic friction ring for damage. | Model 167, 190, 197, 205, 212, 213, 218, 231, 253, 290 with code B07 (AMG - ceramic brake system) |
|
If there is damage to the brake disks (1) with ceramic friction ring that makes replacement necessary: ↓ Replace brake disks (1) with ceramic friction ring. |
AR42.10-P-0290-01RG | ||
| 2.3 | Assess brake disks (1) with a ceramic friction ring for damage. | Model 217, 222 with code B07 (AMG - ceramic brake system) |
|
If there is damage to the brake disks (1) with ceramic friction ring that makes replacement necessary: ↓ Replace brake disks (1) with ceramic friction ring on each axle. |
AR42.10-P-0290-01RG | ||
| 3.1 | Assess brake disks (1) with a cast iron friction ring for wear. | Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 203, 204, 207, 209, 211, 216, 219, 221, 230, 238, 242, 245, 246, 247, 251, 257, 292, 293, 453, 461, 463 Model 190, 197, 205, 212, 213, 217, 218, 222, 231, 253, 290 except code B07 (AMG - ceramic brake system) Model 205 with code B07 (AMG - ceramic brake system) and brake disks (1) with a cast iron friction ring on rear axle Brake disks (1) with a cast iron friction ring and with wear bores. |
|
| Notice | Notes on evaluating brake disks with and without wear holes | If outer wear bore (11), center wear bore (12) and the inner wear bore (13) are visible, ↓ Brake disks (1) with a cast iron friction ring are OK; new brake pads can still be installed on the brake disks (1) with cast iron friction ring. If the inner wear bore (13) is visible, ↓ Brake disks (1) with a cast iron friction ring are OK; the current brake pads can still be used, do not install any new brake pads onto the brake disk (1) with cast iron friction ring. If none of the three wear bores are visible, ↓ replace brake disks (1) with a cast iron friction ring. If, in exceptional cases, assessment of the brake disks (1) with a cast iron friction ring is not possible through a visual check, ↓ check condition of brake disks (1) with a cast iron friction ring. |
AH42.10-P-9406-14A |
| 3.2 | Assess brake disks (1) with a cast iron friction ring for wear. | Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 203, 204, 207, 209, 211, 216, 219, 221, 230, 238, 242, 245, 246, 247, 251, 257, 292, 293, 453, 461, 463 Model 190, 197, 205, 212, 213, 217, 218, 222, 231, 253, 290 except code B07 (AMG - ceramic brake system) Model 205 with code B07 (AMG - ceramic brake system) and brake disks (1) with a cast iron friction ring on rear axle Brake disks (1) with a cast iron friction ring without wear bores. |
|
| Notice | Notes on evaluating brake disks with and without wear holes | If deeply contoured ridging is present at the outer edge, ↓ replace brake disks (1) with a cast iron friction ring. If, in exceptional cases, assessment of the brake disks (1) with a cast iron friction ring is not possible through a visual check, ↓ check condition of brake disks (1) with a cast iron friction ring. |
AH42.10-P-9406-14A |
