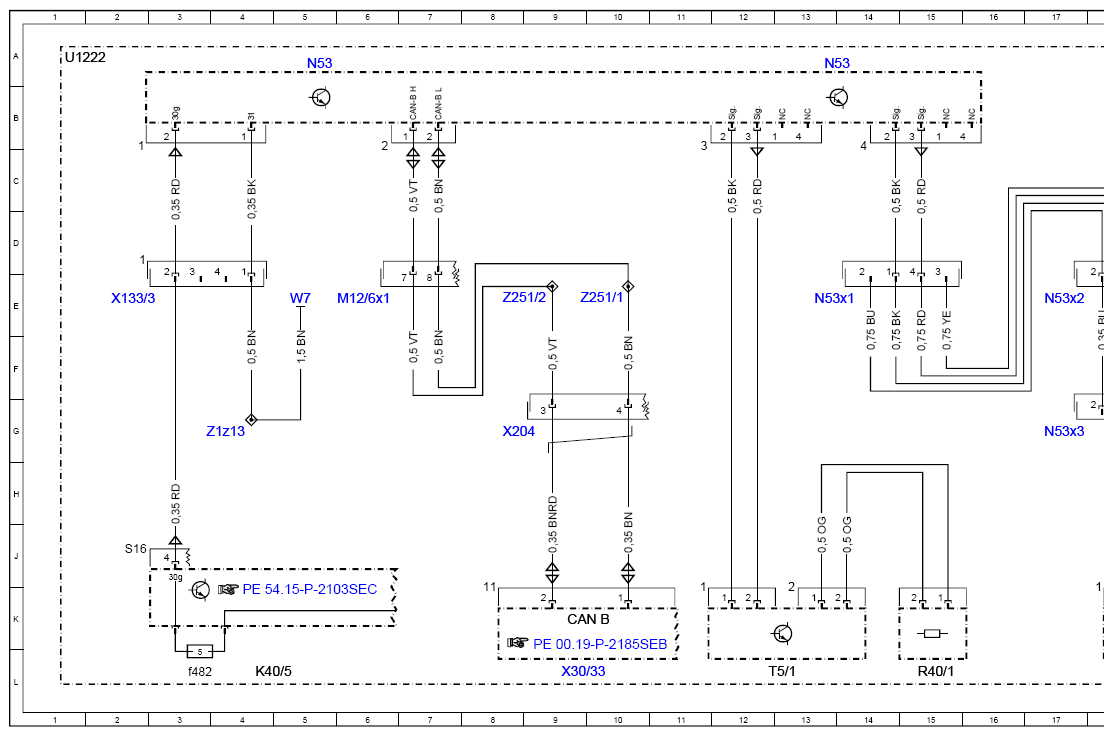

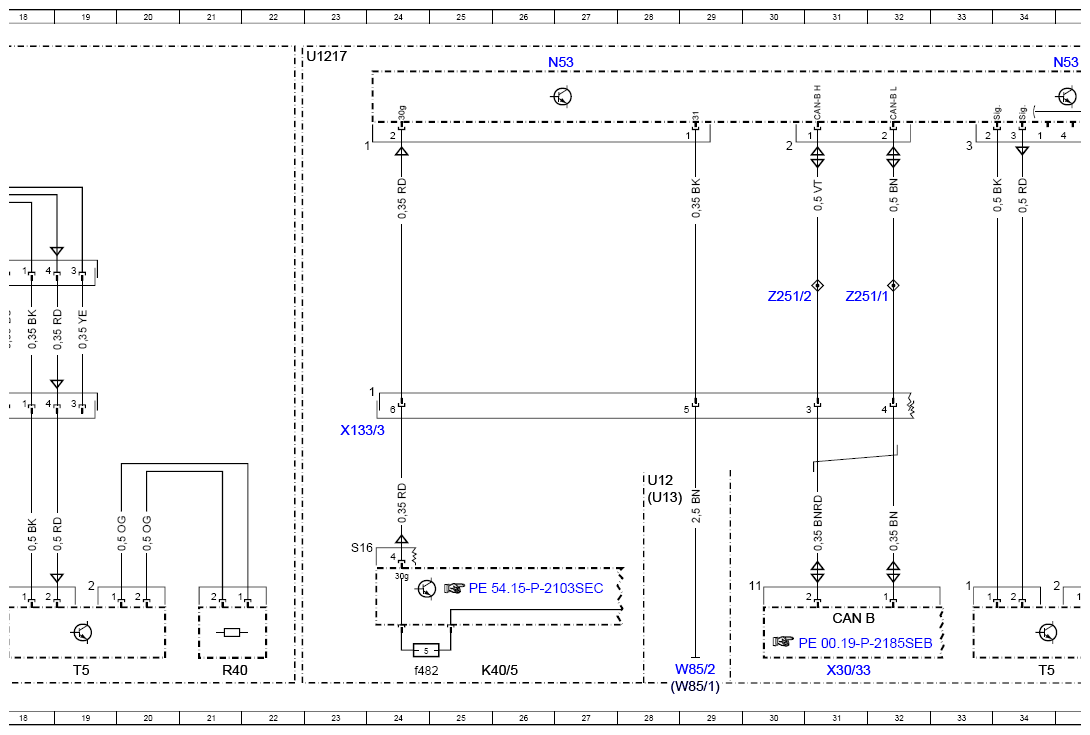

Wiring Diagram For Magic Sky Control Control Unit - PE77.35-P-2101-97SEA
Model 217 up to model year 2018 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Control unit N53
Model 222 up to model year 2018 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Control unit N53
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| CAN B | Interior CAN | 9K |
| CAN B | Interior CAN | 31K |
| K40/5 | Rear fuse and relay module | 4L |
| K40/5 | Rear fuse and relay module | 25L |
| K40/5f482 | Fuse 482 | 3L |
| K40/5f482 | Fuse 482 | 24L |
| M12/6x1 | Rear panoramic sliding sunroof roller sun blind drive unit electrical connector | 6E |
| N53 | MAGIC SKY CONTROL control unit | 5A |
| N53 | MAGIC SKY CONTROL control unit | 13A |
| N53 | MAGIC SKY CONTROL control unit | 27A |
| N53 | MAGIC SKY CONTROL control unit | 35A |
| N53x1 | MAGIC SKY CONTROL high-voltage transformer electrical connector 1 | 13E |
| N53x2 | MAGIC SKY CONTROL high-voltage transformer electrical connector 2 | 17E |
| N53x3 | MAGIC SKY CONTROL high-voltage transformer electrical connector 3 | 17G |
| R40 | MAGIC SKY CONTROL roof | 21L |
| R40 | MAGIC SKY CONTROL roof | 37L |
| R40/1 | Rear roof MAGIC SKY CONTROL | 15L |
| T5 | MAGIC SKY CONTROL high-voltage transformer | 19L |
| T5 | MAGIC SKY CONTROL high-voltage transformer | 34L |
| T5/1 | Rear roof MAGIC SKY CONTROL high-voltage transformer | 13L |
| U12 | Valid for left-hand drive vehicles | 28H |
| U1217 | Valid for model series 217 | 23A |
| U1222 | Valid for model series 222 | 1A |
| U13 | Valid for right-hand drive vehicles | 28H |
| W7 | Right wheel house trunk ground point | 5E |
| W85/1 | Driver footwell frame floor assembly ground point | 29L |
| W85/2 | Front passenger footwell frame floor assembly ground point | 29L |
| X133/3 | MAGIC SKY CONTROL electrical connector | 2E |
| X133/3 | MAGIC SKY CONTROL electrical connector | 23G |
| X204 | Panoramic sliding roof electrical connector | 8G |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 9L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 31L |
| Z1z13 | Circuit 31 connector sleeve | 4G |
| Z251/1 | MAGIC SKY CONTROL connector sleeve (CAN B low) | 10E |
| Z251/1 | MAGIC SKY CONTROL connector sleeve (CAN B low) | 31E |
| Z251/2 | MAGIC SKY CONTROL connector sleeve (CAN B high) | 9E |
| Z251/2 | MAGIC SKY CONTROL connector sleeve (CAN B high) | 30E |
