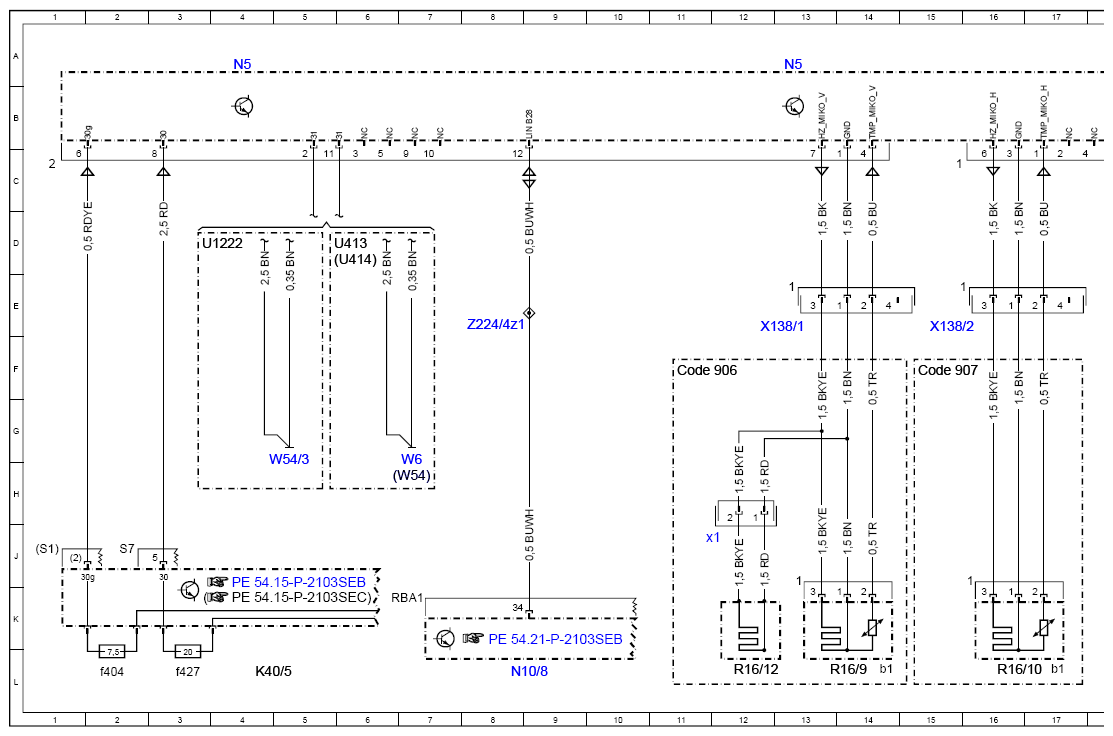

Wiring Diagram For Armrest Heater Control Unit - PE68.20-P-2101-97SEA
Model 217 up to model year 2018 with code 906 (Front armrest heater) with code 907 (Rear armrest heater) Control unit N5
Model 222 up to model year 2018 with code 906 (Front armrest heater) with code 907 (Rear armrest heater) Control unit N5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| Code 906 | Front armrest heater | 11F |
| Code 907 | Rear armrest heater | 15F |
| K40/5 | Rear fuse and relay module | 4L |
| K40/5f404 | Fuse 404 | 2L |
| K40/5f427 | Fuse 427 | 3L |
| N10/8 | Rear SAM control unit | 8L |
| N5 | Armrest heater control unit | 4A |
| N5 | Armrest heater control unit | 13A |
| R16/10 | Rear center console armrest heating element | 16L |
| R16/10b1 | Rear center console armrest heating element temperature sensor | 17L |
| R16/12 | Front center console hand rest heating element | 12L |
| R16/12x1 | Front center console hand rest heating element electrical connector | 11J |
| R16/9 | Front center console armrest heating element | 14L |
| R16/9b1 | Front center console armrest heating element temperature sensor | 14L |
| U1222 | Valid for model series 222 | 3D |
| U413 | Valid for model 217.3 | 5D |
| U414 | Valid for model 217.4 | 5D |
| W54 | Right rear wheel well ground point | 7H |
| W54/3 | Left rear wheel well ground point | 5H |
| W6 | Left wheel arch trunk ground point | 7H |
| X138/1 | Front center console electrical connector | 13E |
| X138/2 | Rear center console electrical connector | 15E |
| Z224/4z1 | Connector sleeve, heater LIN | 8E |
