Remove/Install Rear Center Console - AR68.20-P-2020LC
Model 217

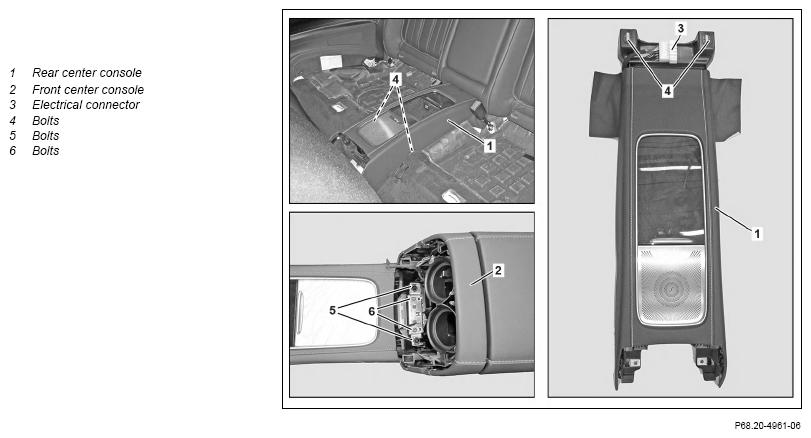

| Remove/install | |||
| 1 | Remove rear backrest | AR91.12-P-1620LF | |
| 2 | Disconnect electrical connector (3) | ||
| 3 | Remove bolts (4) | ||
| 4 | Remove cover on front center console (2) | AR68.20-P-2350LF | |
| 5 | Remove screw/bolts (5) | ||
| 6 | Remove screw/bolts (6) | Model 217.4 | |
| 7 | Lift front center console (2) and remove rear center console (1) toward rear | ||
| 8 | Install in the reverse order |
