Remove/Install Fender Liner In Front Fender - AR88.10-P-1300LF
Model 217, 222
Shown on MODEL 222
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Raise vehicle with vehicle lift | ||
| 2 | Remove expansion clips (3) | ||
| 3 | Remove bolts (2) | ||
| 4 | Unscrew bolts from fender liner on center engine compartment paneling | Model 217 | AR61.20-P-1105LF |
| 5 | Unscrew nuts (4) | ||

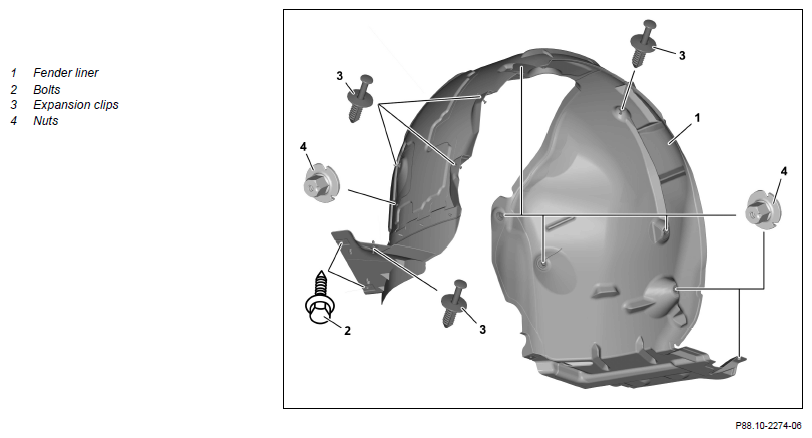

| 6 | Pull outer edge of fender liner (1) toward inside out of fender edge and remove fender liner (1) downward | ||
| 7 | Install in the reverse order |
