(Disassemble/Assemble Front Bumper - AR88.20-P-2050LFM)
Model 222
as of model year 2018
Shown on model 222.0 with engine 256, with code U60 (Active hood (Pedestrian protection)), with code 235 (Active Parking Assist with PARKTRONIC) and with code 258 (COLLISION PREVENTION ASSIST)
Shown on model 222.0 with engine 256, with code U60 (Active hood (Pedestrian protection)), with code 235 (Active Parking Assist with PARKTRONIC) and with code 258 (COLLISION PREVENTION ASSIST)
Shown on model 222.0 with engine 256, with code U60 (Active hood (Pedestrian protection)) and with code 235 (Active Parking Assist with PARKTRONIC)
Shown on model 222.9 with engine 279 and with code 235 (Active Parking Assist with PARKTRONIC)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove | |||
| 1 | Remove front bumper (1) | AR88.20-P-2000LF | |
| Disassemble/assemble | |||
| 2 | Remove license-plate number | ||
| 3 | Remove license plate bracket | ||
| 4 | Remove pedestrian protection sensor | Model 222 as of model year 2018 with code U60 (Active Bonnet (Pedestrian protection)) |
|
| Topical note | Notes on pedestrian protection sensor | AH91.60-P-0001-01A | |
| AR91.60-P-0950EWM | |||
| 5 | Remove impact absorber (2) | ||
| Topical note | General information on the impact absorber | AH88.20-P-1000-01A | |
| 6 | Remove sensors from PARKTRONIC system (PTS) | Model 222 as of model year 2018 with code 235 (Active Parking Assist with PARKTRONIC) |
AR54.65-P-0001LF |
| 7 | Remove radar sensor | Model 222 as of model year 2018 with code 258 (COLLISION PREVENTION ASSIST) |
AR30.30-P-1210LFM |
| 8 | Detach electrical wiring harness (3) from front bumper (1) and remove | ||

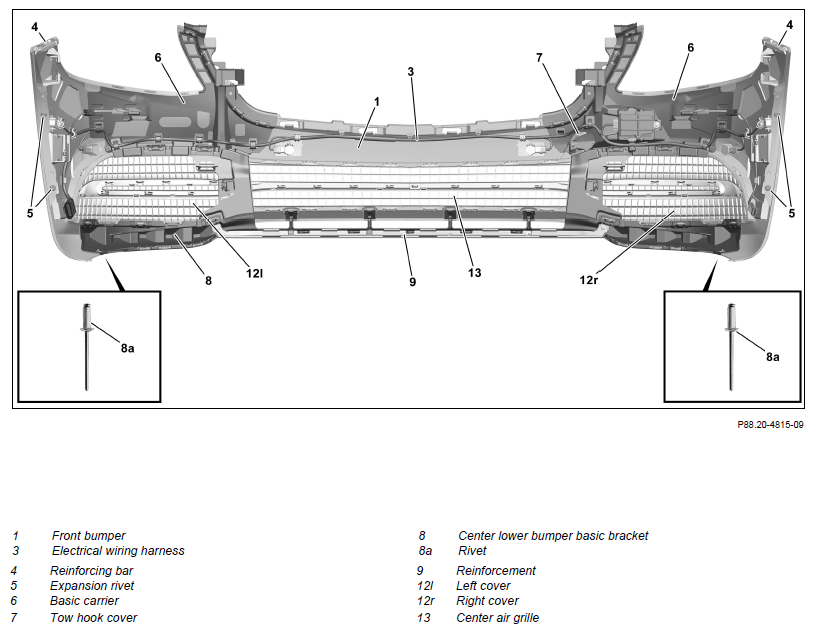

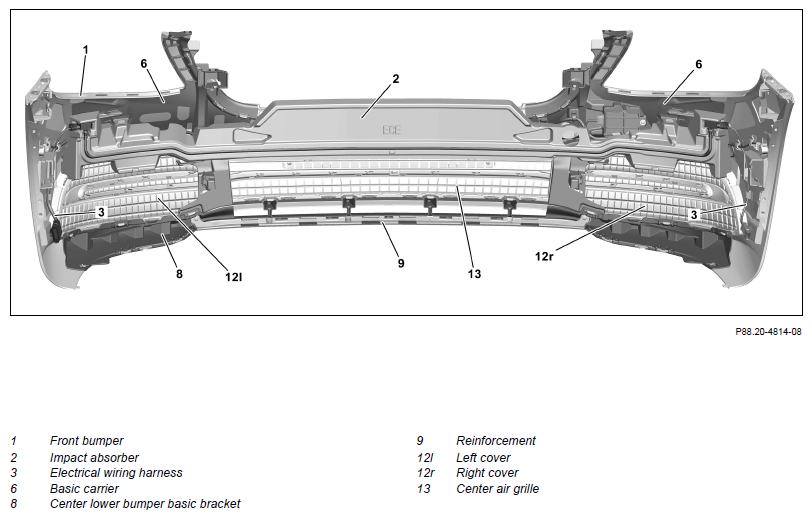

| 9 | Remove left reinforcing bar (4) | Fig 1 | |
| 10 | Remove right reinforcing bar (4) | Fig 1 | |
| 11 | Remove expansion rivet (5) | ||
| 12 | Remove left basic bracket (6) | Remove single parts together. |
|
| Fig 1 | |||
| 13 | Remove right basic bracket (6) | Remove single parts together. |
|
| Fig 1 | |||
| 14 | Remove tow hook cover (7) | ||
| 15 | Drill out rivets (8a) | ||

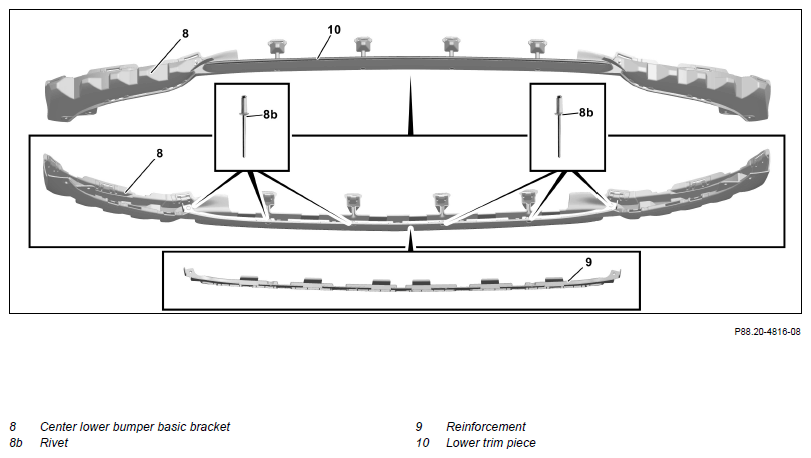

| 16 | Remove center lower bumper basic bracket (8) together with reinforcement (9) and lower trim element (10) | Fig 1 | |
| 17 | Drill out rivets (8b) | ||
| 18 | Remove reinforcement (9) from center lower bumper basic bracket (8) | Fig 1 | |
| 19 | Remove lower trim element (10) from center lower bumper basic bracket (8) | Fig 1 | |

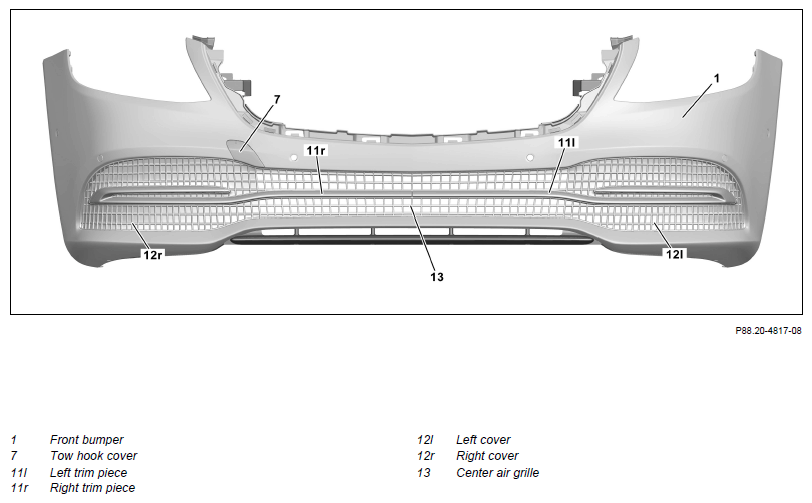

| 20.1 | Remove right trim element (11r) and left trim element (11l) | Model 222.0/1 as of model year 2018 |
|
| Fig 1 | |||

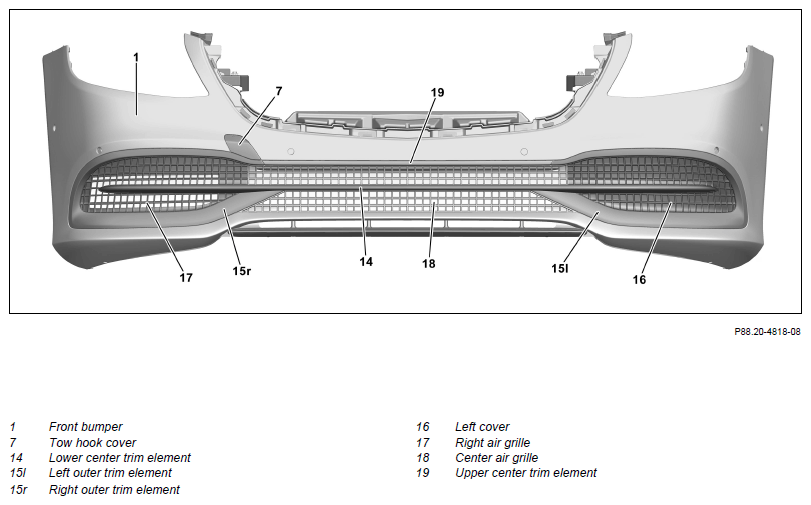

| 20.2 | Remove lower center trim element (14), left outer trim element (15l) and right outer trim element (15r) | Model 222.9 as of model year 2018 |
|
| Fig 1 | |||
| 21.1 | Remove left cover (12l) and right cover (12r) | Model 222.0/1 as of model year 2018 as of model year 2018 Model 222.1 with engine 277 as of model year 2018 An air grille is installed instead of right cover (12r). |
|
| Fig 1 | |||
| 21.2 | Remove left cover (16) and right air grille (17) | Model 222.9 as of model year 2018 as of model year 2018 Model 222.9 with engine 276 as of model year 2018 Model 222.9 with engine 278 as of model year 2018 A cover is installed instead of right air grille (17). |
|
| Fig 1 | |||
| 22.1 | Remove center air grille (13) | Model 222.0/1 as of model year 2018 |
|
| Fig 1 | |||
| 22.2 | Remove center air grille (18) together with upper center trim element (19) | Model 222.9 as of model year 2018 |
|
| Fig 1 | |||
| 23 | Remove upper center trim element (19) from center air grille (18) | Model 222.9 as of model year 2018 |
|
| Fig 1 | |||
| 24 | Assemble in the reverse order | ||
| Install | |||
| 25 | Install front bumper (1) | AR88.20-P-2000LF |
