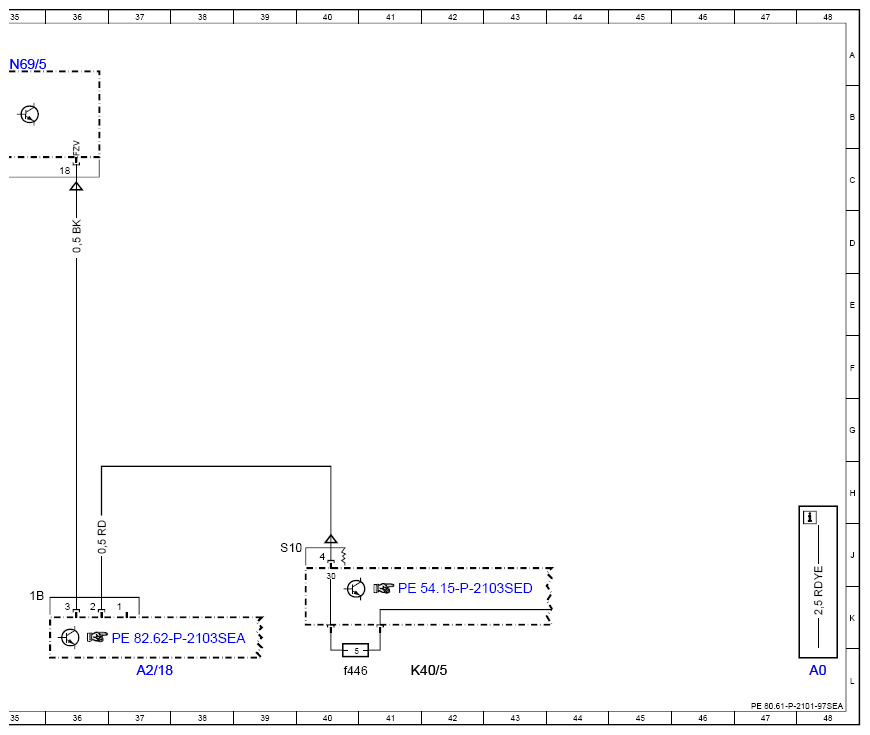

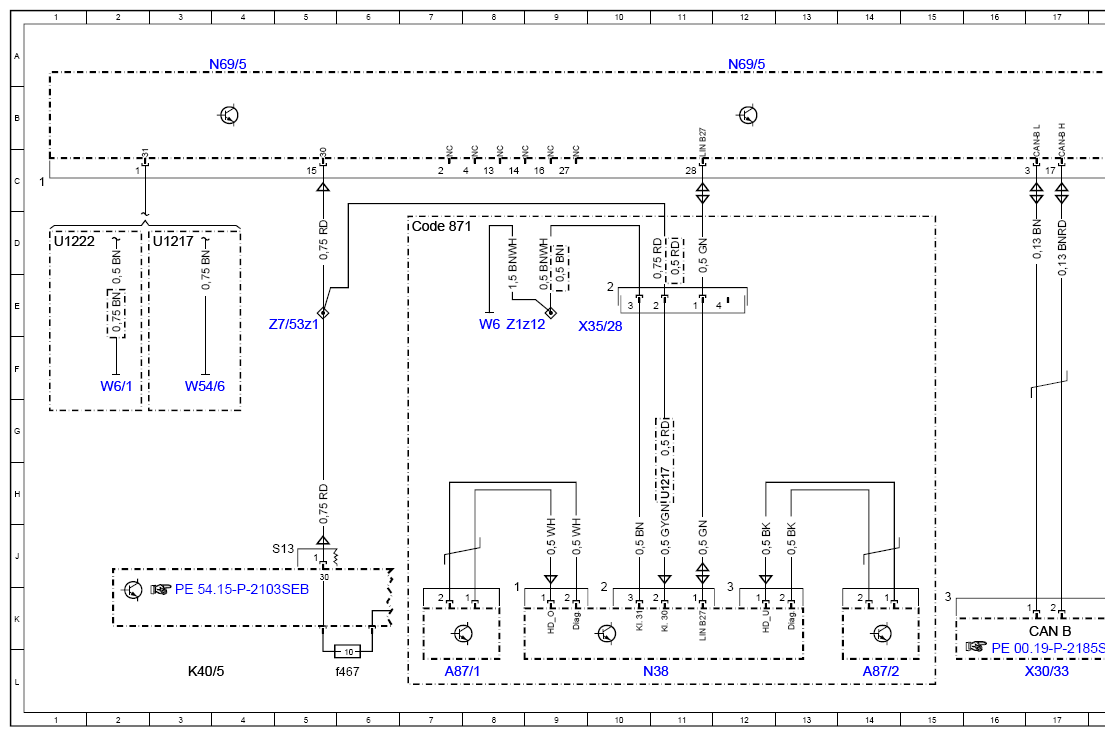

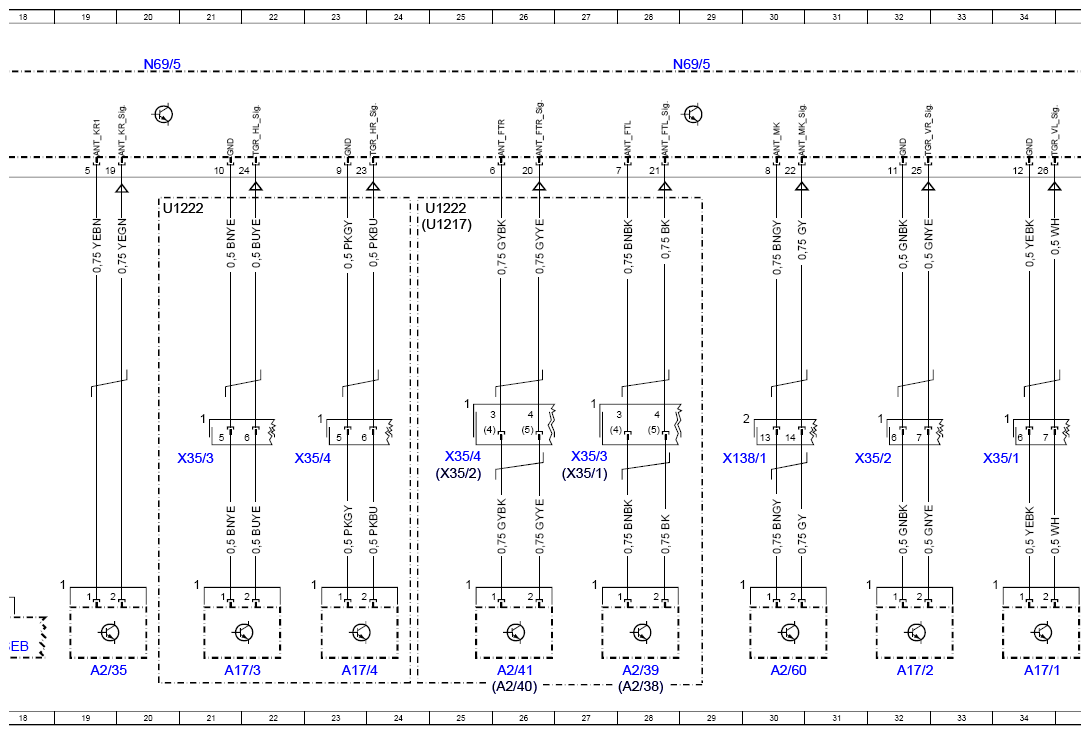

Wiring Diagram For Keyless Go Control Unit - PE80.61-P-2101-97SEA
Model 217 up to model year 2018 with code 889 (KEYLESS-GO) Control unit N69/5
Model 222 up to model year 2018 with code 889 (KEYLESS-GO) Control unit N69/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A17/1 | Left front KEYLESS GO door handle | 34L |
| A17/2 | Right front KEYLESS GO door handle | 32L |
| A17/3 | Left rear KEYLESS GO door handle | 21L |
| A17/4 | Right rear KEYLESS GO door handle | 23L |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 37L |
| A2/35 | Trunk KEYLESS GO antenna | 19L |
| A2/38 | Left front door KEYLESS-GO antenna | 28L |
| A2/39 | Left rear door KEYLESS GO antenna | 28L |
| A2/40 | Right front door KEYLESS-GO antenna | 26L |
| A2/41 | Right rear door KEYLESS GO antenna | 26L |
| A2/60 | Center console KEYLESS-GO antenna | 30L |
| A87/1 | Rear switching module upper sensor | 7L |
| A87/2 | Rear switching module lower sensor | 14L |
| CAN B | Interior CAN | 17K |
| Code 871 | Sensor system for trunk lid opening/closing | 7D |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5 | Rear fuse and relay module | 41L |
| K40/5f446 | Fuse 446 | 40L |
| K40/5f467 | Fuse 467 | 6L |
| N38 | Rear switching module | 11L |
| N69/5 | KEYLESS-GO control unit | 4A |
| N69/5 | KEYLESS-GO control unit | 12A |
| N69/5 | KEYLESS-GO control unit | 20A |
| N69/5 | KEYLESS-GO control unit | 29A |
| N69/5 | KEYLESS-GO control unit | 35A |
| U1217 | Valid for model series 217 | 24D |
| U1217 | Valid for model series 217 | 11H |
| U1217 | Valid for model series 217 | 3D |
| U1222 | Valid for model series 222 | 24D |
| U1222 | Valid for model series 222 | 20D |
| U1222 | Valid for model series 222 | 1D |
| W54/6 | Right rear wheel well ground point 2 | 3F |
| W6 | Left wheel arch trunk ground point | 8E |
| W6/1 | Left taillamp trunk ground point | 2F |
| X138/1 | Front center console electrical connector | 30H |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 17L |
| X35/1 | Left front door electrical connector | 34H |
| X35/1 | Left front door electrical connector | 27H |
| X35/2 | Right front door electrical connector | 32H |
| X35/2 | Right front door electrical connector | 25H |
| X35/28 | Rear bumper parking system electrical connector | 10E |
| X35/3 | Left rear door electrical connector | 21H |
| X35/3 | Left rear door electrical connector | 27H |
| X35/4 | Right rear door electrical connector | 23H |
| X35/4 | Right rear door electrical connector | 25H |
| Z1z12 | Circuit 31 connector sleeve | 9E |
| Z7/53z1 | Circuit 30 connector sleeve, KEYLESS-GO | 5E |
