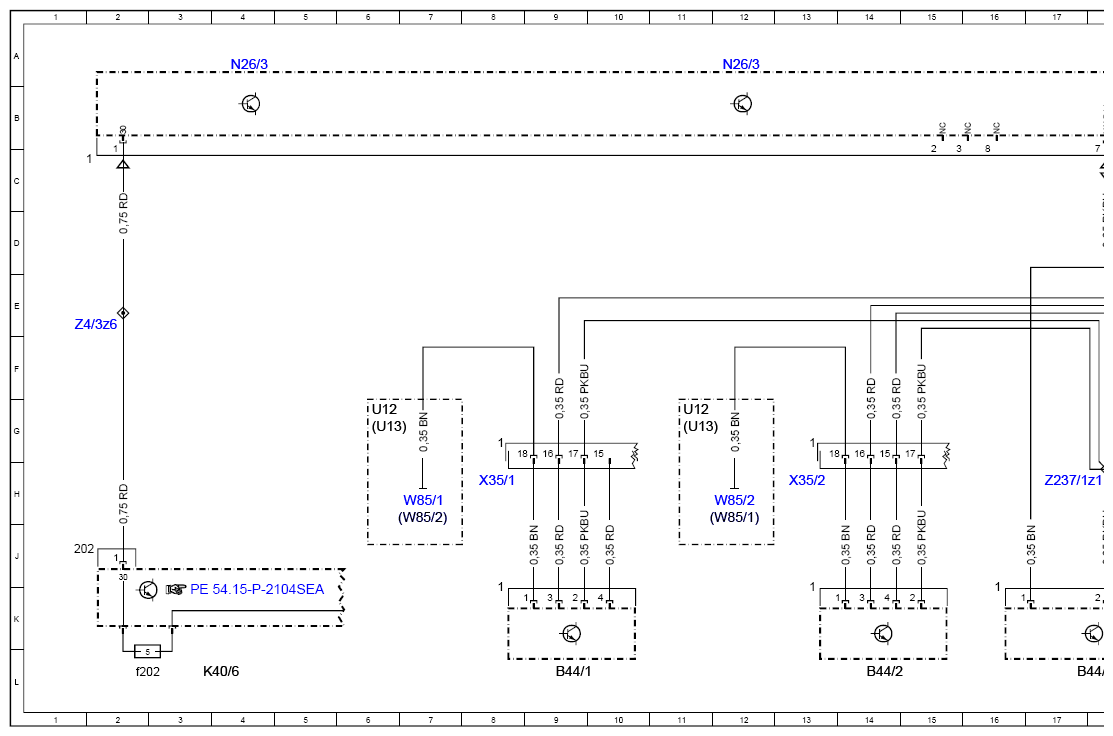

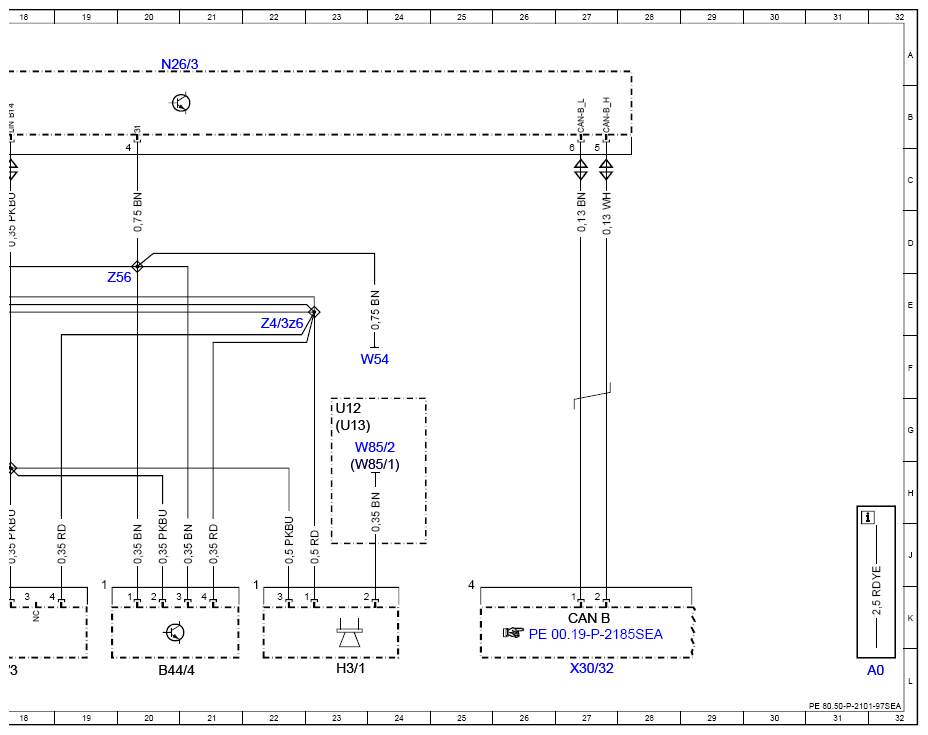

Electric Wiring Diagram For Anti-Theft Alarm System Control Unit (ATA) - PE80.50-P-2101-97SEA
Model 217.4 up to model year 2018 Control unit N26/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| B44/1 | Left front door interior protection sensor | 9L |
| B44/2 | Right front door interior protection sensor | 14L |
| B44/3 | Left rear interior protection sensor | 17L |
| B44/4 | Right rear interior protection sensor | 20L |
| CAN B | Interior CAN | 27K |
| H3/1 | Alarm siren | 23L |
| K40/6 | Left fuse and relay module | 4L |
| K40/6f202 | Fuse 202 | 2L |
| N26/3 | ATA [EDW]/towing sensor/interior motion sensor control unit | 4A |
| N26/3 | ATA [EDW]/towing sensor/interior motion sensor control unit | 12A |
| N26/3 | ATA [EDW]/towing sensor/interior motion sensor control unit | 20A |
| U12 | Valid for left-hand drive vehicles | 6G |
| U12 | Valid for left-hand drive vehicles | 11G |
| U12 | Valid for left-hand drive vehicles | 23G |
| U13 | Valid for right-hand drive vehicles | 6G |
| U13 | Valid for right-hand drive vehicles | 11G |
| U13 | Valid for right-hand drive vehicles | 23G |
| W54 | Right rear wheel well ground point | 24F |
| W85/1 | Driver footwell frame floor assembly ground point | 7H |
| W85/1 | Driver footwell frame floor assembly ground point | 12H |
| W85/1 | Driver footwell frame floor assembly ground point | 23H |
| W85/2 | Front passenger footwell frame floor assembly ground point | 7H |
| W85/2 | Front passenger footwell frame floor assembly ground point | 12H |
| W85/2 | Front passenger footwell frame floor assembly ground point | 23G |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 27L |
| X35/1 | Driver door electrical connector | 8H |
| X35/2 | Front passenger door electrical connector | 13H |
| Z237/1z1 | Alarm systems LIN (LIN B14) connector sleeve | 17H |
| Z4/3z6 | Tml. 30 connector sleeve | 2E |
| Z4/3z6 | Tml. 30 connector sleeve | 22E |
| Z56 | Interior protection sensors ground line connector sleeve | 20E |
