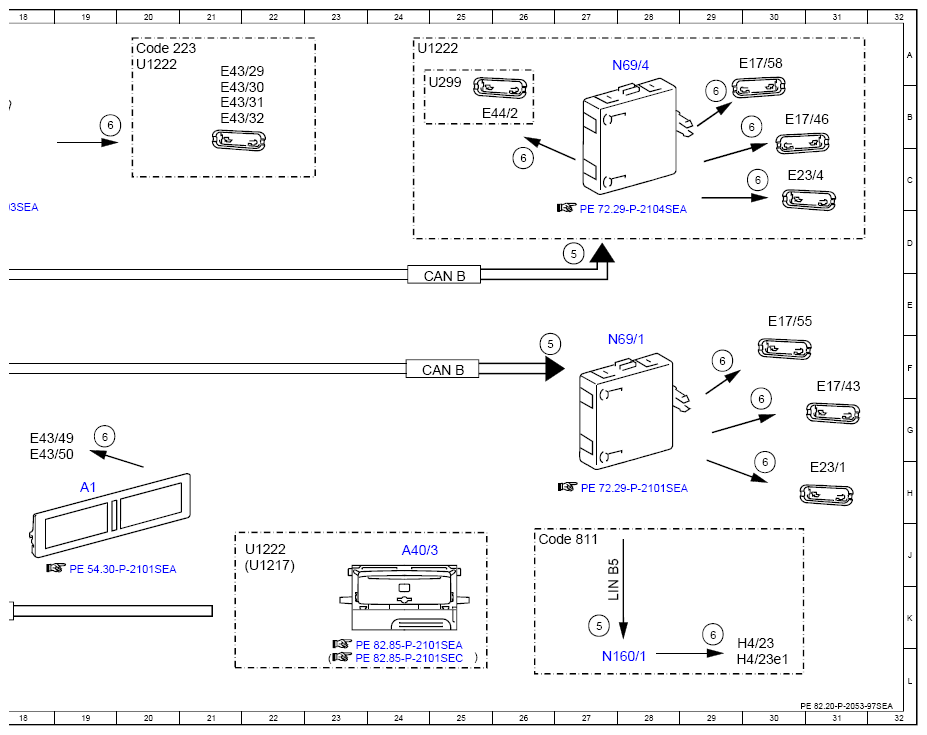

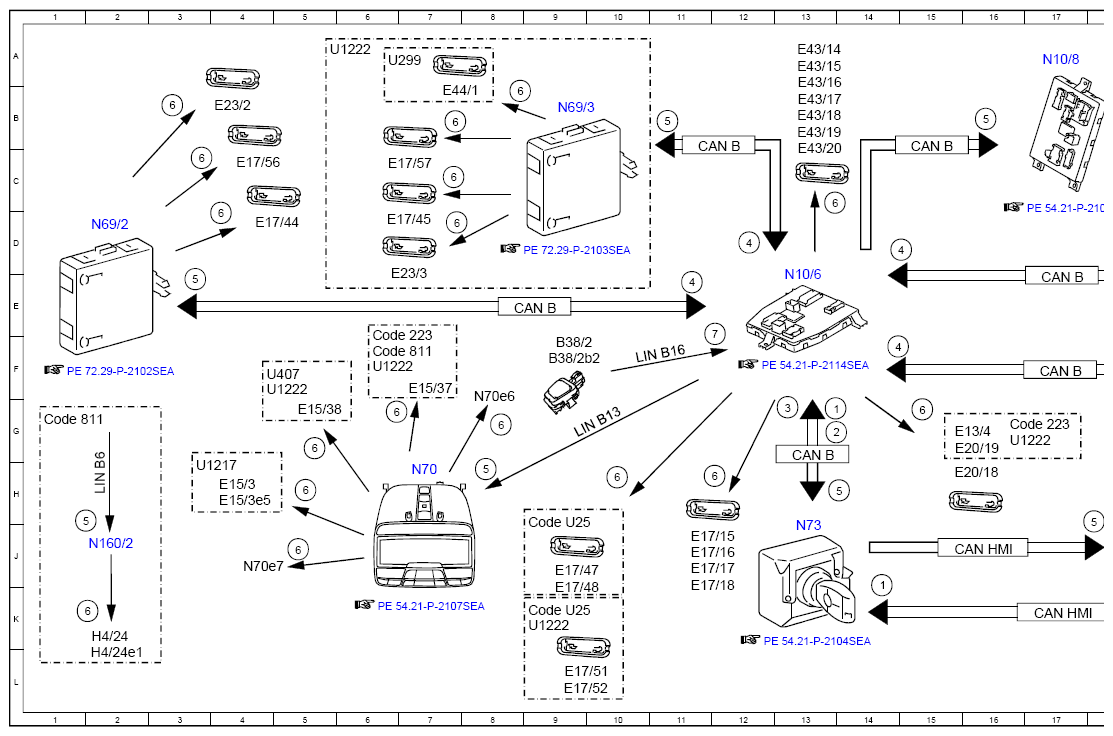

Electrical Function Schematic Ambiance Illumination - PE82.20-P-2053-97SEA
Model 217, 222 up to model year 2018 with code 877 (ambient lighting)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Ambiance illumination settings, status | 14G |
| 1 | Ambiance illumination settings, status | 14J |
| 2 | Circuit 15, status | 13G |
| 3 | Central locking, status | 13G |
| 4 | Main locking position microswitch, status | 11E |
| 4 | Main locking position microswitch, status | 12D |
| 4 | Main locking position microswitch, status | 15D |
| 4 | Main locking position microswitch, status | 15F |
| 5 | Ambience illumination, request | 27D |
| 5 | Ambience illumination, request | 26F |
| 5 | Ambience illumination, request | 27K |
| 5 | Ambience illumination, request | 16B |
| 5 | Ambience illumination, request | 11B |
| 5 | Ambience illumination, request | 3E |
| 5 | Ambience illumination, request | 1J |
| 5 | Ambience illumination, request | 8H |
| 5 | Ambience illumination, request | 14H |
| 5 | Ambience illumination, request | 18J |
| 6 | Ambience illumination, actuation | 30H |
| 6 | Ambience illumination, actuation | 29F |
| 6 | Ambience illumination, actuation | 30G |
| 6 | Ambience illumination, actuation | 29B |
| 6 | Ambience illumination, actuation | 30B |
| 6 | Ambience illumination, actuation | 30C |
| 6 | Ambience illumination, actuation | 29K |
| 6 | Ambience illumination, actuation | 19B |
| 6 | Ambience illumination, actuation | 13C |
| 6 | Ambience illumination, actuation | 8B |
| 6 | Ambience illumination, actuation | 7B |
| 6 | Ambience illumination, actuation | 7C |
| 6 | Ambience illumination, actuation | 3B |
| 6 | Ambience illumination, actuation | 3C |
| 6 | Ambience illumination, actuation | 4D |
| 6 | Ambience illumination, actuation | 2K |
| 6 | Ambience illumination, actuation | 5J |
| 6 | Ambience illumination, actuation | 5H |
| 6 | Ambience illumination, actuation | 5G |
| 6 | Ambience illumination, actuation | 6G |
| 6 | Ambience illumination, actuation | 8G |
| 6 | Ambience illumination, actuation | 15G |
| 6 | Ambience illumination, actuation | 12H |
| 6 | Ambience illumination, actuation | 19G |
| 6 | Ambience illumination, actuation | 10H |
| 6 | Ambience illumination, actuation | 7D |
| 6 | Ambience illumination, actuation | 26C |
| 7 | Dusk setting, signal | 12E |
| A1 | Instrument cluster | 19H |
| A40/3 | COMAND control unit | 24J |
| B38/2 | Rain/light sensor with additional functions | 9F |
| B38/2b2 | Light sensor | 9F |
| CAN B | Interior CAN | 13G |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 11C |
| CAN B | Interior CAN | 17E |
| CAN B | Interior CAN | 17F |
| CAN B | Interior CAN | 15C |
| CAN B | Interior CAN | 25E |
| CAN B | Interior CAN | 25F |
| CAN HMI | User interface CAN | 17K |
| CAN HMI | User interface CAN | 16J |
| Code 223 | Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints | 20A |
| Code 223 | Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints | 16G |
| Code 223 | Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints | 6F |
| Code 811 | Advanced sound system | 26J |
| Code 811 | Advanced sound system | 6F |
| Code 811 | Advanced sound system | 1G |
| Code U25 | illuminated door sills | 9K |
| Code U25 | illuminated door sills | 9J |
| E13/4 | Rear center console stowage compartment ambiance illumination | 15G |
| E15/3 | Rear dome lamp | 4H |
| E15/37 | Rear light ring ambiance illumination | 7F |
| E15/38 | Rear ambiance illumination | 5G |
| E15/3e5 | Rear dome lamp ambiance illumination | 4H |
| E17/15 | Right front footwell lamp | 11J |
| E17/16 | Left front footwell lamp | 11J |
| E17/17 | Right rear footwell lamp | 11J |
| E17/18 | Left rear footwell lamp | 11K |
| E17/43 | Left front door ambiance illumination | 31F |
| E17/44 | Right front door ambiance illumination | 4D |
| E17/45 | Left rear door ambiance illumination | 7D |
| E17/46 | Right rear door ambiance illumination | 30B |
| E17/47 | Left front illuminated door sill molding | 9J |
| E17/48 | Right front illuminated door sill molding | 9K |
| E17/51 | Left rear illuminated door sill molding | 9L |
| E17/52 | Right rear illuminated door sill molding | 9L |
| E17/55 | Left front door handle ambiance illumination | 30E |
| E17/56 | Right front door handle ambiance illumination | 4C |
| E17/57 | Left rear door handle ambiance illumination | 7C |
| E17/58 | Right rear door handle ambiance illumination | 29A |
| E20/18 | Front center console cup holder ambiance illumination | 15H |
| E20/19 | Rear center console cup holder ambiance illumination | 15G |
| E23/1 | Left front door stowage compartment illumination | 31H |
| E23/2 | Right front door stowage compartment illumination | 4B |
| E23/3 | Left rear door stowage compartment illumination | 7E |
| E23/4 | Right rear door stowage compartment illumination | 30C |
| E43/14 | Left front center console ambiance illumination | 13A |
| E43/15 | Left rear center console ambiance illumination | 13A |
| E43/16 | Right front center console ambiance illumination | 13B |
| E43/17 | Right rear center console ambiance illumination | 13B |
| E43/18 | Driver-side ambiance illumination | 13B |
| E43/19 | Passenger-side interior ambiance illumination | 13B |
| E43/20 | Passenger-side exterior ambiance illumination | 13C |
| E43/29 | Left rear center console ambiance illumination | 21A |
| E43/30 | Right rear center console ambiance illumination | 21B |
| E43/31 | Left rear panel ambiance illumination | 21B |
| E43/32 | Right rear panel ambiance illumination | 21B |
| E43/49 | Upper Audio/COMAND display ambiance illumination | 18G |
| E43/50 | Lower Audio/COMAND display ambiance illumination | 18G |
| E44/1 | Left rear door ambiance illumination | 7B |
| E44/2 | Right rear door ambiance illumination | 25B |
| H4/23 | Left front door tweeter, mirror triangle | 29K |
| H4/23e1 | Left front door tweeter ambiance illumination, mirror triangle | 29L |
| H4/24 | Right front door tweeter, mirror triangle | 2K |
| H4/24e1 | Right front door tweeter ambiance illumination, mirror triangle | 2L |
| LIN B13 | Roof LIN | 10G |
| LIN B16 | Rain and light sensor LIN | 11F |
| LIN B5 | Left front door LIN | 27J |
| LIN B6 | Right front door LIN | 2H |
| N10/6 | Front SAM control unit | 13E |
| N10/8 | Rear SAM control unit | 17A |
| N160/1 | Left front door tweeter control unit | 27L |
| N160/2 | Right front door tweeter control unit | 2J |
| N69/1 | Left front door control unit | 27F |
| N69/2 | Right front door control unit | 2D |
| N69/3 | Left rear door control unit | 9B |
| N69/4 | Right rear door control unit | 28A |
| N70 | Overhead control panel control unit | 7H |
| N70e6 | Left mounting console incident illumination | 8G |
| N70e7 | Right mounting console incident illumination | 4J |
| N73 | Electronic ignition switch control unit | 13J |
| U1217 | Valid for model series 217 | 3H |
| U1217 | Valid for model series 217 | 22J |
| U1222 | Valid for model series 222 | 5A |
| U1222 | Valid for model series 222 | 24A |
| U1222 | Valid for model series 222 | 20A |
| U1222 | Valid for model series 222 | 16G |
| U1222 | Valid for model series 222 | 6F |
| U1222 | Valid for model series 222 | 4F |
| U1222 | Valid for model series 222 | 9K |
| U1222 | Valid for model series 222 | 22J |
| U299 | Valid for model 222.9 | 6A |
| U299 | Valid for model 222.9 | 24B |
| U407 | Valid without code (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints | 4F |
