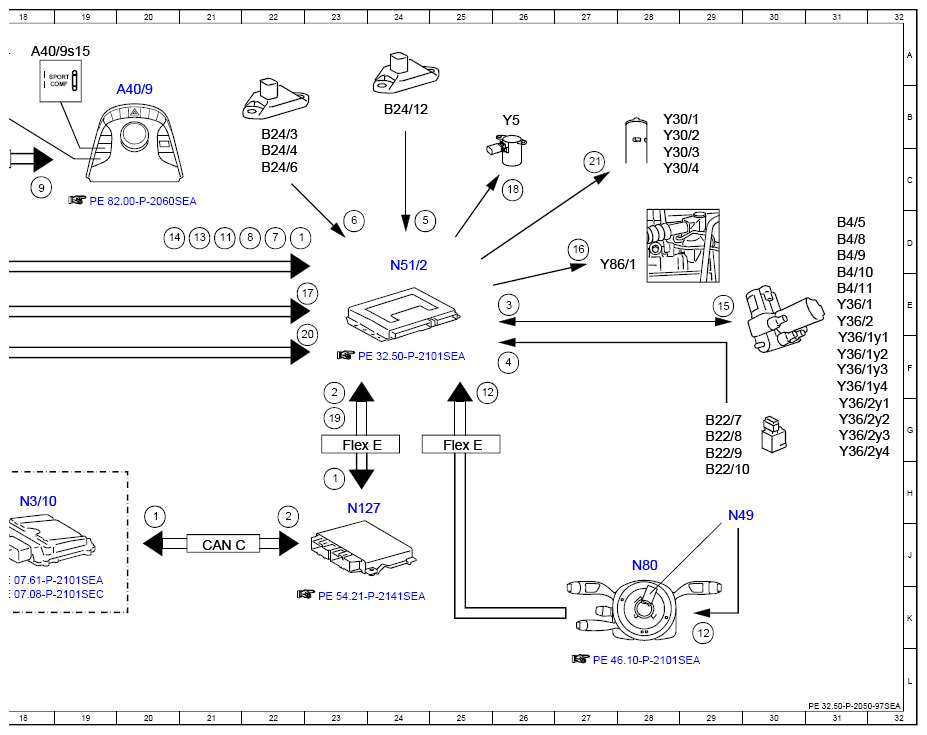

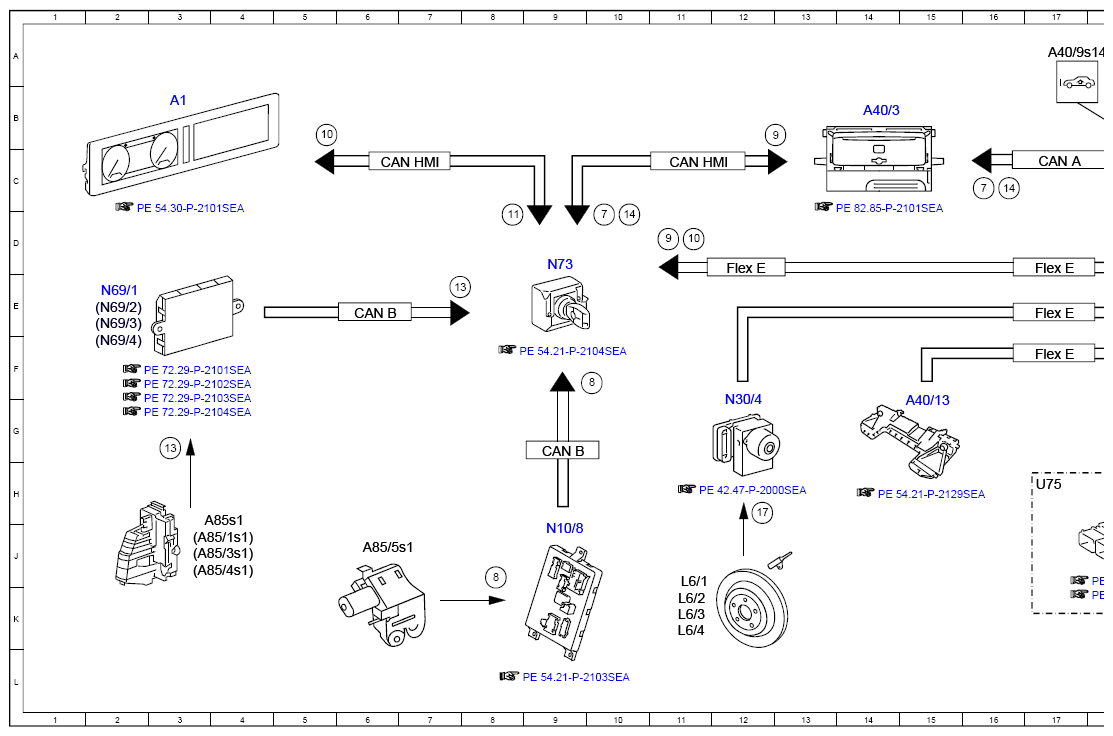

Electrical Function Schematic For Active Body Control (ABC) - PE32.50-P-2050-97SEA
Model 217 with code 487 (MAGIC BODY CONTROL)
Model 222 up to model year 2018 with code 487 (MAGIC BODY CONTROL)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R, status | 22D |
| 1 | Circuit 15R, status | 23H |
| 1 | Circuit 15R, status | 20H |
| 10 | Warning message issue, request | 11D |
| 10 | Warning message issue, request | 5B |
| 11 | Vehicle speed, signal | 21D |
| 11 | Vehicle speed, signal | 8D |
| 12 | Steering wheel angle sensor, signal | 29K |
| 12 | Steering wheel angle sensor, signal | 25F |
| 13 | Door rotary tumbler switch, status | 3G |
| 13 | Door rotary tumbler switch, status | 7E |
| 13 | Door rotary tumbler switch, status | 21D |
| 14 | Comfort and Sport button, status | 10D |
| 14 | Comfort and Sport button, status | 20D |
| 14 | Comfort and Sport button, status | 16C |
| 15 | ABC valve unit, actuation | 29E |
| 16 | Throttle valve, actuation | 27D |
| 17 | Wheel speed, signal | 22E |
| 17 | Wheel speed, signal | 12H |
| 18 | ABC switchover valve, actuation | 26C |
| 19 | Drivetrain operational, signal | 23G |
| 2 | Engine running, signal | 23F |
| 2 | Engine running, signal | 22H |
| 20 | Camera image, signal | 22E |
| 21 | Damping valve units, actuation | 27C |
| 3 | Pressure sensor, signal | 26E |
| 4 | Level sensor, signal | 26F |
| 5 | Speed, turn rate and lateral acceleration, signal | 24D |
| 6 | Body acceleration sensor, signal | 23D |
| 7 | Vehicle level button, status | 10D |
| 7 | Vehicle level button, status | 22D |
| 7 | Vehicle level button, status | 16C |
| 8 | Trunk lid lock main catch switch, status | 8J |
| 8 | Trunk lid lock main catch switch, status | 10F |
| 9 | Button/symbol illumination, actuation | 12B |
| 9 | Button/symbol illumination, actuation | 18C |
| 9 | Button/symbol illumination, actuation | 13B |
| A1 | Instrument cluster | 3B |
| A40/13 | Stereo multifunction camera | 15G |
| A40/3 | COMAND control unit | 14B |
| A40/9 | Audio/COMAND control panel | 20B |
| A40/9s14 | Vehicle level button | 17A |
| A40/9s15 | Comfort/Sport button | 18A |
| A85/1s1 | Right front door pre-locking position microswitch | 3J |
| A85/3s1 | Left rear door pre-locking position microswitch | 3J |
| A85/4s1 | Right rear door pre-locking position microswitch | 3J |
| A85/5s1 | Trunk lid lock main catch switch | 6J |
| A85s1 | Left front door pre-locking position microswitch | 4J |
| B22/10 | Right rear level sensor | 29H |
| B22/7 | Left rear level sensor | 29G |
| B22/8 | Left front level sensor | 29G |
| B22/9 | Right front level sensor | 29G |
| B24/12 | ABC lateral acceleration sensor | 24B |
| B24/3 | Left front body lateral acceleration sensor | 22B |
| B24/4 | Right front body lateral acceleration sensor | 22C |
| B24/6 | Right rear body lateral acceleration sensor | 22C |
| B4/10 | Left rear ABC pressure sensor | 31E |
| B4/11 | Right rear ABC pressure sensor | 31E |
| B4/5 | ABC pressure sensor | 31D |
| B4/8 | Left front ABC pressure sensor | 31D |
| B4/9 | Right front ABC pressure sensor | 31D |
| CAN A | Telematics CAN | 17C |
| CAN B | Interior CAN | 9G |
| CAN B | Interior CAN | 6E |
| CAN C | Engine CAN | 21J |
| CAN HMI | User interface CAN | 6C |
| CAN HMI | User interface CAN | 11C |
| Flex E | Chassis FlexRay | 12D |
| Flex E | Chassis FlexRay | 17D |
| Flex E | Chassis FlexRay | 17E |
| Flex E | Chassis FlexRay | 23G |
| Flex E | Chassis FlexRay | 25G |
| Flex E | Chassis FlexRay | 17F |
| L6/1 | Left front axle rpm sensor | 11J |
| L6/2 | Right front axle rpm sensor | 11K |
| L6/3 | Left rear axle rpm sensor | 11K |
| L6/4 | Right rear axle rpm sensor | 11K |
| N10/8 | Rear SAM control unit | 9J |
| N127 | Drivetrain control unit | 23H |
| N3/10 | ME-SFI [ME] control unit | 18H |
| N30/4 | Electronic Stability Program control unit | 12G |
| N49 | Steering wheel angle sensor | 29H |
| N51/2 | Active Body Control control unit | 24D |
| N69/1 | Left front door control unit | 2E |
| N69/2 | Right front door control unit | 2E |
| N69/3 | Left rear door control unit | 2E |
| N69/4 | Right rear door control unit | 2F |
| N73 | Electronic ignition switch control unit | 9D |
| N80 | Steering column module control unit | 28J |
| U75 | Valid for gasoline engines | 17H |
| Y30/1 | Left front Active Body Control damping valve | 28B |
| Y30/2 | Right front Active Body Control damping valve | 28B |
| Y30/3 | Left rear Active Body Control damping valve | 28C |
| Y30/4 | Right rear Active Body Control damping valve | 28C |
| Y36/1 | ABC front axle valve unit | 31E |
| Y36/1y1 | Left front suspension strut control valve | 31F |
| Y36/1y2 | Left front suspension strut shutoff valve | 31F |
| Y36/1y3 | Right front suspension strut control valve | 31F |
| Y36/1y4 | Right front suspension strut shutoff valve | 31F |
| Y36/2 | ABC rear axle valve unit | 31E |
| Y36/2y1 | Left rear suspension strut control valve | 31G |
| Y36/2y2 | Left rear suspension strut shutoff valve | 31G |
| Y36/2y3 | Right rear suspension strut control valve | 31G |
| Y36/2y4 | Right rear suspension strut shutoff valve | 31G |
| Y5 | ABC switchover valve | 26B |
| Y86/1 | ABC throttle valve | 27D |
