Remove/Install Airmatic Central Reservoir - AR32.22-P-2017LF

Model 217 as of 12/1/14

except code 487 (Active Body Control (ABC))

except code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 217 up to 11/30/14

except code 487 (Active Body Control (ABC))

Model 217.378 as of 12/1/14

with code M005 (Vehicles with 4MATIC/all-wheel drive)

except code 487 (Active Body Control (ABC))

Model 222 (except 222.178) as of 11/27/14

with code M005 (Vehicles with 4MATIC/all-wheel drive)

with code Z07 (B7 armoring on special protection version)

except code 487 (Active Body Control (ABC))

Model 222 as of 11/27/14

except code 487 (Active Body Control (ABC))

except code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 222 up to 11/26/14

except code 487 (Active Body Control (ABC))

Model 222.178 as of 11/27/14

with code M005 (Vehicles with 4MATIC/all-wheel drive)

except code 487 (Active Body Control (ABC))

Shown on model 222

Courtesy of MERCEDES-BENZ USA

	Notes on AIRmatic		AH32.22-P-1000-02LF
	Remove/install
1	Empty AIRmatic using diagnostic system
			AD00.00-P-2000-04B
2	Remove front left complete wheel		AR40.10-P-1102A
3	Remove front left fender liner		AR88.10-P-1300LF

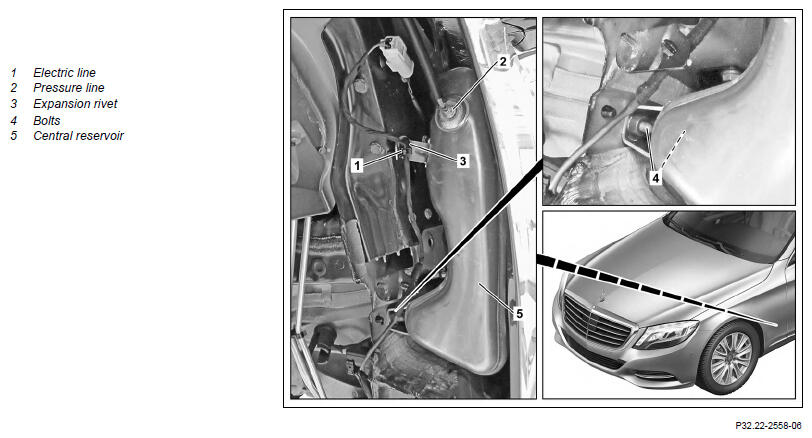

4	Unclip electrical line (1)
5	Detach pressure line (2)	Pressure line to central reservoir	*BA32.22-P-1007-03F
6	Unclip expansion rivet (3)
7	Remove bolts (4)	Screw/bolt, bracket of central reservoir to body	*BA32.22-P-1003-03F

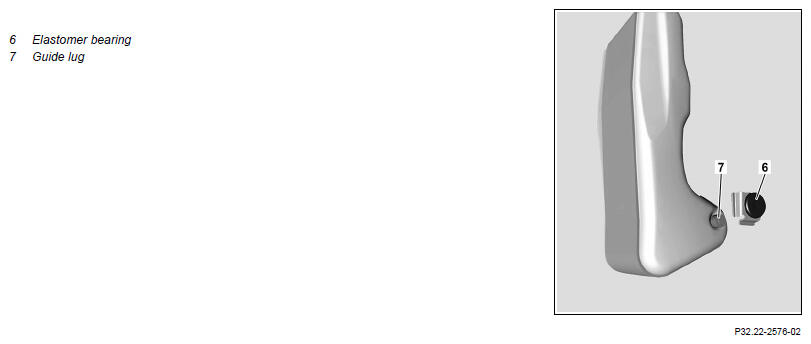

8	Remove central reservoir (5)	:  Guide the guide lug (7) into the elastomer bearing (6).
9	Install in the reverse order

Number	Designation		Model 217	Model 222
BA32.22-P-1003-03F	Screw/bolt, bracket of central reservoir to body	Nm	20	20

Number	Designation		Model 217	Model 222
BA32.22-P-1007-03F	Pressure line to central reservoir	Nm	5	5
