Remove/Install Air Suspension Compressor Holder - AR32.22-P-2009LF

Model 217

except code 487 (Active Body Control (ABC))

Model 222

except code 487 (Active Body Control (ABC))

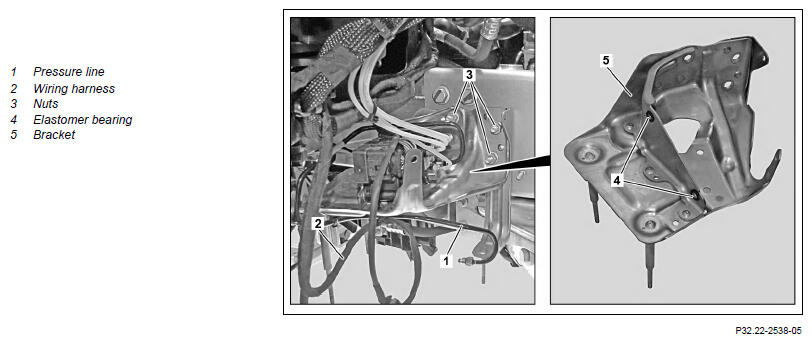

Shown on MODEL 222

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove AIRmatic compressor		AR32.22-P-2001LF
2	Unclip pressure line (1) and wiring harness (2) from bracket (5)
3	Detach AIRMATIC valve unit from bracket (5) and place to one side with lines still connected		AR32.22-P-2015LF
4	Unscrew nuts (3) and remove bracket (5)	Nut, bracket for air compressor to longitudinal member	*BA32.22-P-1001-03F
5	Check elastomer bearing (4)	Replace the elastomer bearing (4) if hardened or damaged.
6	Install in the reverse order
