Overview Of System Components For AIRMATIC - GF32.22-P-9994LF
Model 217, 222

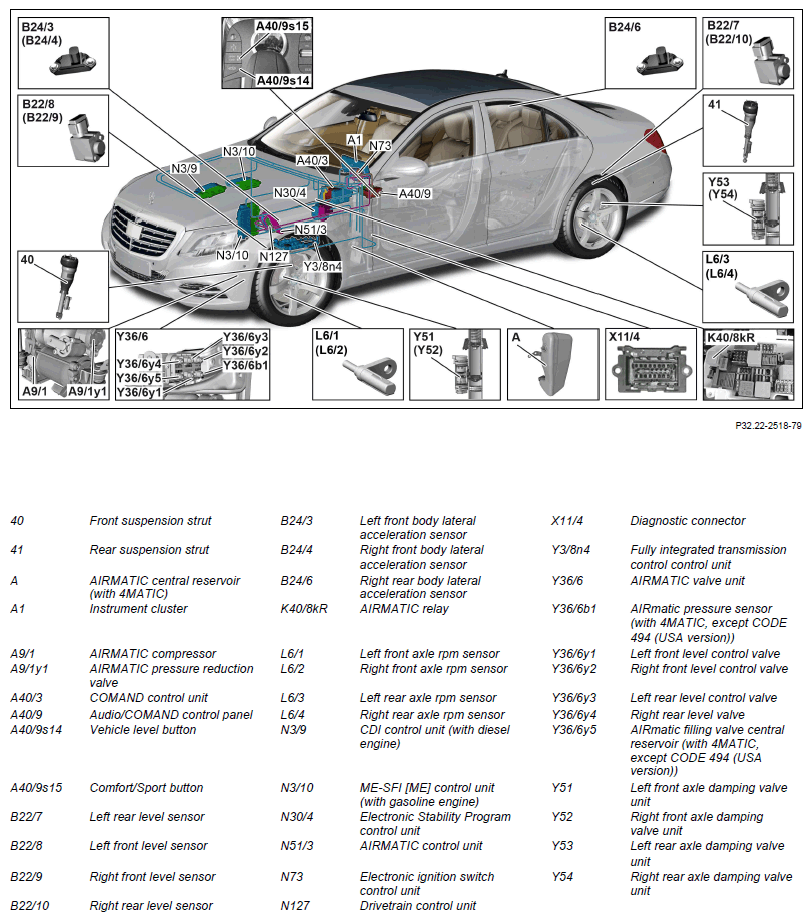

Shown on model 222 up to model year 2018

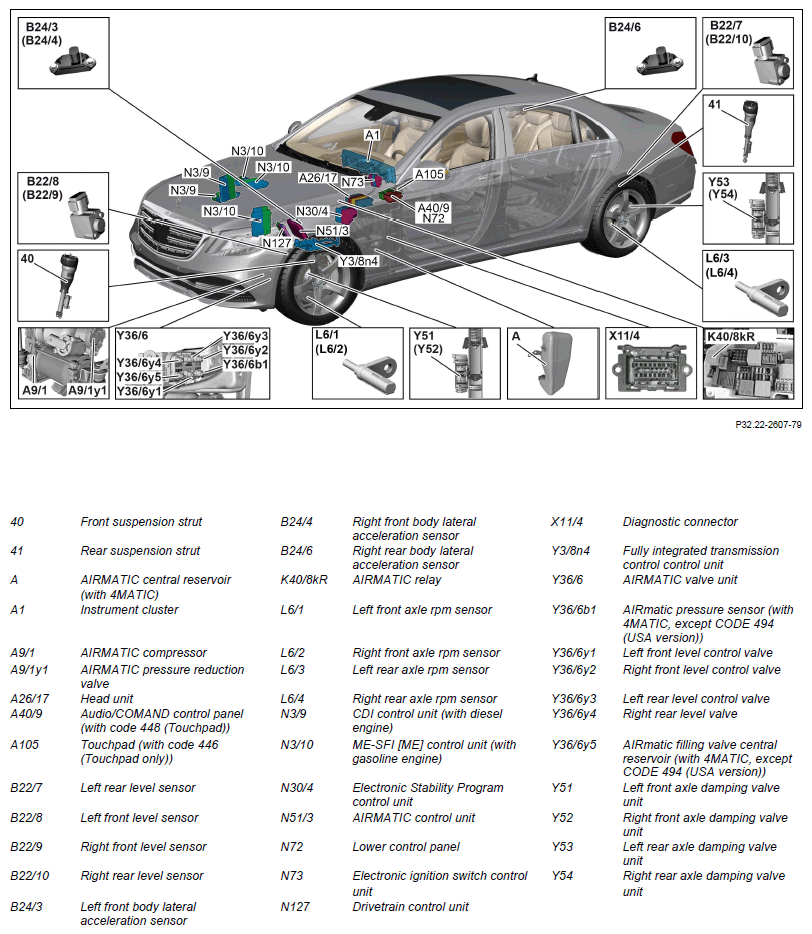

Shown on model 222 as of model year 2018

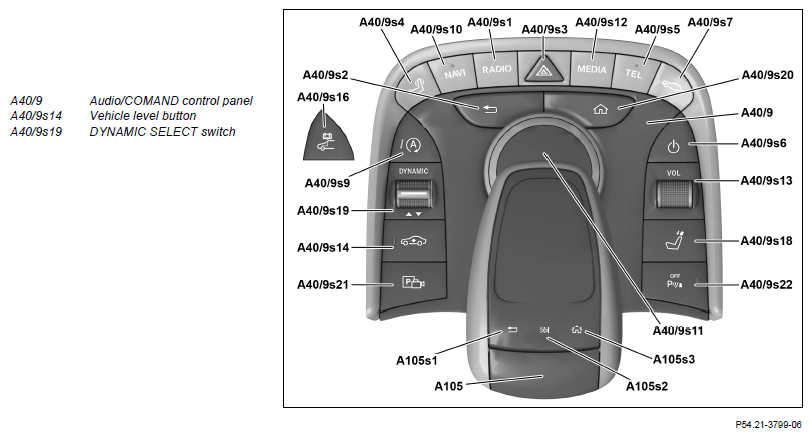

View of Audio/COMAND control panel as of model year 2018 (with code 448 (Touchpad))
| Component description for instrument cluster | Model 217, 222 up to model year 2018 A1 |
GF54.30-P-6000LF | |
| Model 217, 222 as of model year 2018 A1 |
GF54.30-P-6000LFM | ||
| Head unit, component description | Model 217, 222 as of model year 2018 A26/17 |
GF82.85-P-3140LFM | |
| Component description for COMAND controller unit | Model 217, 222 up to model year 2018 A40/3 |
GF82.85-P-3136LF | |
| Component description for Audio/COMAND control panel | Model 217, 222 up to model year 2018 A40/9 |
GF54.21-P-4501LF | |
| Model 217, 222 as of model year 2018 with code 448 (Touchpad) A40/9 | GF54.21-P-4501LFM | ||
| Component description for CDI control unit | Model 222 with engine 642.8 N3/9 |
GF07.16-P-6000OGS | |
| Model 222 with engine 651.9 N3/9 |
GF07.16-P-6000OLA | ||
| Model 222 with engine 656.9 N3/9 |
GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 217, 222 with engine 177.9 Model 222 with engine 176.9 N3/10 |
GF07.61-P-6000MNL | |
| Model 222 with engine 256.9 N3/10 |
GF07.61-P-6000MRT | ||
| Model 222 with engine 276.9 N3/10 |
GF07.61-P-6000MMK | ||
| Model 217, 222 with engine 157.9, 278.9 N3/10 |
GF07.61-P-6000MML | ||
| Model 217, 222 with engine 276.8 N3/10 |
GF07.61-P-6000MMT | ||
| Model 217 with engine 279 Model 222 with engine 277, 279 N3/10 |
GF07.61-P-6000MUB | ||
| Model 222 with engine 264.9 N3/10 |
GF07.61-P-6000MRK | ||
| Component description for Electronic Stability Program control unit | Model 217 222 (except 222 004/057/104/157/163) up to model year 2018 N30/4 | GF42.45-P-5119LF | |
| Model 217, 222 (except 222.173) as of model year 2018 N30/4 |
GF42.45-P-5119LFM | ||
| Model 222.004/057/104/157/163 up to model year 2018 N30/4 |
GF42.45-P-5119LFH | ||
| Model 222.173 as of model year 2018 N30/4 |
GF42.45-P-5119LFA | ||
| AIRMATIC control unit, component description | N51/3 | GF32.22-P-5110LF | |
| Lower control panel, component description | Model 217, 222 as of model year 2018 with code 446 (Touchpad only) N72 |
GF54.25-P-4270LFM | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Drivetrain control unit, component description | Model 217 with engine 176.9, 177.9 Model 217, 222 (except 222.163/173) with engine 157.9, 276.8, 277, 278.9, 279 Model 222 with engine 176.9, 177.9, 256.9 N127 |
GF54.21-P-2141LF | |
| Model 222 with engine 276.9 Model 222.163 with engine 276.8 N127 |
GF54.21-P-2141MMK | ||
| Model 222 with engine 642.8 N127 |
GF54.21-P-2141OGS | ||
| Model 222 with engine 656.9 N127 |
GF54.21-P-2141OIA | ||
| Model 222 with engine 651.9 N127 |
GF54.21-P-2141OLA | ||
| Component description for fully integrated transmission control unit | Model 217, 222 with transmission 722.9 (except 722.931/932/971) Y38n4 |
GF27.60-P-5165AHB | |
| Model 217, 222 with transmission 722.931/971 Y38n4 |
GF27.60-P-5165AHD | ||
| Model 217, 222 with transmission 722.932 Y38n4 |
GF27.60-P-5165AHY | ||
| Model 222 with transmission 724.2 up to model year 2018 Y38n4 |
GF27.60-P-5165LFH | ||
| Model 217, 222 with transmission 725.0 (except 725.017/066/096) Y38n4 |
GF27.60-P-5165AND | ||
| Table of contents for function description of AIRMATIC | GF32.22-P-0997LF |
