Remove/Install Intermediate Shaft - AR33.30-P-0625LFX
Model 217, 222 with transmission 722.96/97
Model 217, 222 with transmission 725.0
with code M005 (Vehicles with 4MATIC/all-wheel drive)
MODIFICATION NOTES
| 22.03.2021 | Check of pilot bushing (4), added. |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. | AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove | |||
| 1 | Remove left front axle shaft. | Model 217 with transmission 722.96/97 Model 217, 222 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 222 with transmission 722.96/97 except code Z07 (B7 armoring on special protection version) |
AR33.30-P-0620LFX |

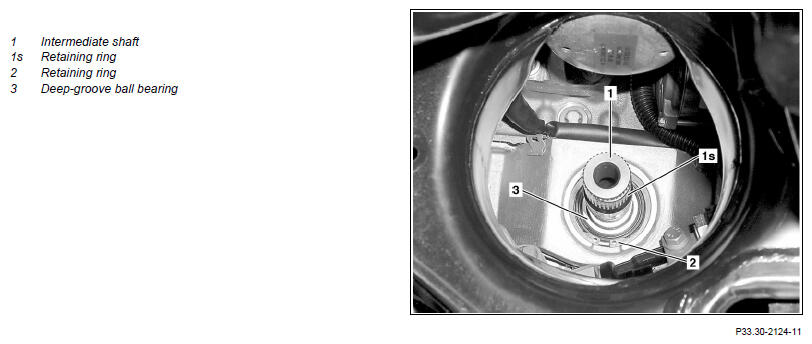

| 2 | Remove retaining ring (2). | ||
| 3 | Remove intermediate shaft (1) with deep-groove ball bearing (3). | ||
| Check | |||
| 4 | Check deep-groove ball bearing (3) for damage. | If the deep-groove ball bearing (3) is damaged. ↓ Replace deep-groove ball bearing (3). |
AR33.30-P-0625-02LWX |
| Length "a" for grooved ball bearing wheel offset | *BE33.30-P-1001-04C | ||
| Fig 1 | |||
| Fig 2 | |||
| Fig 3 | |||
| Fig 4 | |||
| 5 | Check intermediate shaft (1) for damage. | If the intermediate shaft (1) is damaged. ↓ Install a new intermediate shaft (1). |
|

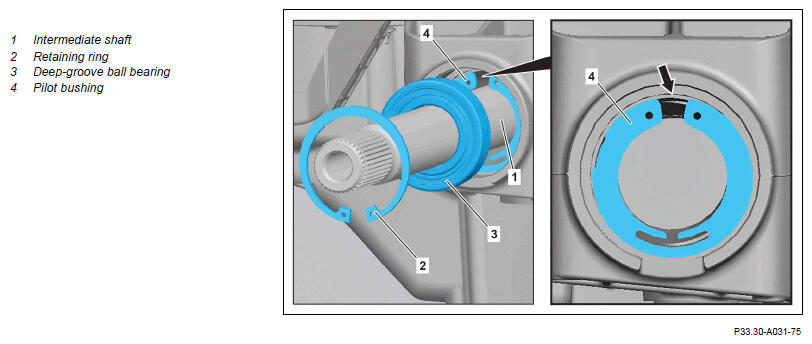

| 6 | Check pilot bushing (4) for damage. | If pilot bushing (4) is damaged: ↓ Replace pilot bushing (4). |
|
| 7 | Check pilot bushing (4) is correctly seated in oil pan. | Otherwise, the radial shaft sealing ring on the front axle differential will be damaged. If the pilot bushing (4) is not correctly seated in the oil pan: ↓ Install pilot bushing (4) correctly in oil pan. |
|
| Install | |||
| 8 | Install intermediate shaft (1) with deep-groove ball bearing (3). | ||
| 9 | Install retaining ring (2). | ||
| 10 | Install left front axle shaft. | Model 217 with transmission 722.96/97 Model 217 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 222 with transmission 722.96/97 except code Z07 (B7 armoring on special protection version) Model 222 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR33.30-P-0620LFX |
INTERMEDIATE SHAFT
| Number | Designation | Model 217 | Model 222 | |||
|---|---|---|---|---|---|---|
| BE33.30-P-1001-04C | Length "a" for grooved ball bearing wheel offset | With an intermediate shaft length of | 472.0 mm | mm | - | - |
| 478.5 mm | mm | - | - | |||
| 479.3 mm | mm | - | - | |||
| 504.3 mm | mm | - | - | |||
| 510.0 mm | mm | 366, 0...366, 2 | 366, 0...366, 2 | |||
